JR21WP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG MALE 16POS SOLDER CUP
| Part | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Features | Applications | Mounting Type | Fastening Type | Backshell Material, Plating | Voltage Rating | Ingress Protection | Primary Material | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Positions | Orientation | Current Rating (Amps) | Material Flammability Rating | Shielding | Contact Material | Insert Material | Color | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | |||||||||||||||||||||||||

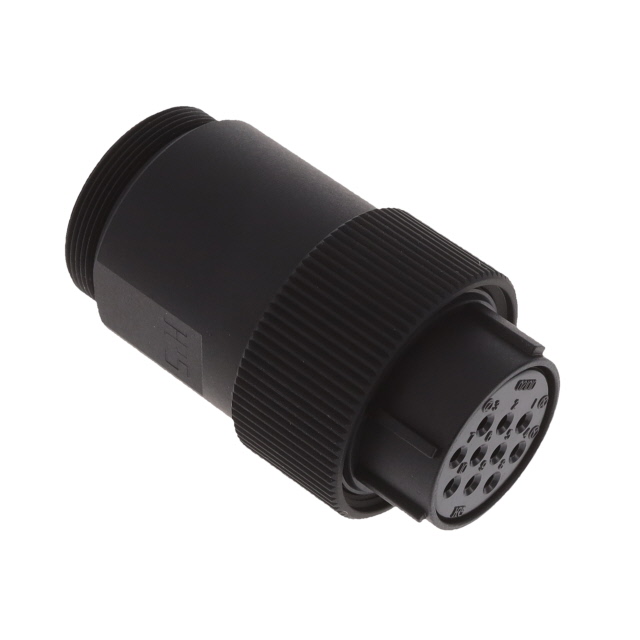

 Hirose Electric Co Ltd | Black Chromium | 85 °C | -25 °C | Plug Female Sockets | Backshell Coupling Nut | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Threaded | Black Chrome Brass | 100 VAC 140 VDC | IP67/IP68 | Metal | Aluminum Alloy | 78.7 µin | 2 µm | Silver | 10 | Keyed | 10 A | UL94 V-0 | Unshielded | Copper Alloy | Phenol Formaldehyde (PF) | Black | 21 |

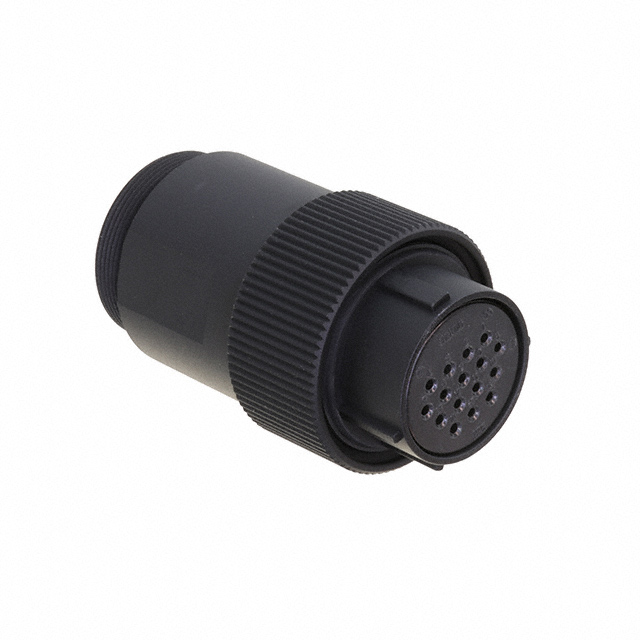

 Hirose Electric Co Ltd | Black Chromium | 85 °C | -25 °C | Plug Female Sockets | Backshell Coupling Nut | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Threaded | Black Chrome Brass | 100 VAC 140 VDC | IP67/IP68 | Metal | Aluminum Alloy | 118.1 µin | 3 µm | Silver | 16 | Keyed | 5 A | UL94 V-0 | Unshielded | Copper Alloy | Phenol Formaldehyde (PF) | Black | 21 |

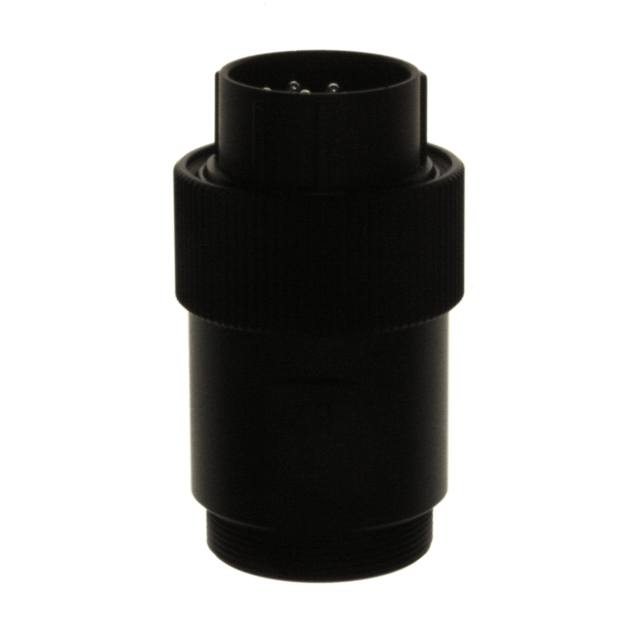

Hirose Electric Co Ltd | Black Chromium | 85 °C | -25 °C | Plug Male Pins | Backshell Coupling Nut | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Threaded | Black Chrome Brass | 125 VDC | IP67/IP68 | Metal | Aluminum Alloy | 118.1 µin | 3 µm | Silver | 10 | Keyed | 10 A | UL94 V-0 | Unshielded | Copper Alloy | Phenol Formaldehyde (PF) | Black | 21 |
 Hirose Electric Co Ltd | Black Chromium | 85 °C | -25 °C | Plug Male Pins | Backshell Coupling Nut | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Threaded | Black Chrome Brass | 100 VAC 140 VDC | IP67/IP68 | Metal | Aluminum Alloy | 118.1 µin | 3 µm | Silver | 10 | Keyed | 10 A | UL94 V-0 | Copper Alloy | Phenol Formaldehyde (PF) | Black | 21 | |
Hirose Electric Co Ltd |
