MLX90366 Series
Manufacturer: Melexis Technologies NV
Beta
⌘K

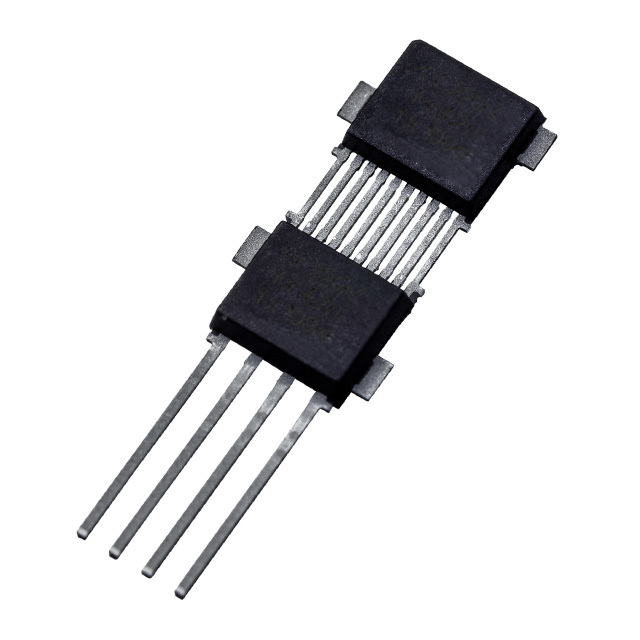

SENSOR ANGLE 360DEG PC PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Technology | Actuator Type | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Supplier Device Package | Mounting Type | Output | Output Signal | Voltage - Supply [Max] | Voltage - Supply [Min] | For Measuring | Termination Style | Current - Output (Max) [Max] | Sensing Range [z] | Sensing Range [y] | Sensing Range [x] | Current - Supply (Max) [Max] | Resolution | Output Type | Axis [z] | Axis [y] | Axis [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module Formed Leads | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | Programmable | 5.5 V | 4.5 V | Angle | PC Pin | |||||||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module Formed Leads | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | 5.5 V | 4.5 V | Linear Rotary Position | PC Pin | ||||||||||||
 Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module Formed Leads | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | 5.5 V | 4.5 V | Linear Rotary Position | PC Pin | ||||||||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module Formed Leads | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | 5.5 V | 4.5 V | Linear Rotary Position | PC Pin | ||||||||||||
 Melexis Technologies NV | -40 C | 150 °C | 4-SSIP Module | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | Programmable | 5.5 V | 4.5 V | Angle | PC Pin | |||||||||||
 Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module | Hall Effect | 4-DMP | Through Hole | 5.5 V | 4.5 V | 30 mA | 126 mT | 70 mT | 70 mT | 10 mA | 12 b | FA2 Pico-SPOX | Z | Y | X | Programmable | |||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SSIP Module | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | 5.5 V | 4.5 V | Linear Rotary Position | PC Pin | ||||||||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SSIP Module | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | 5.5 V | 4.5 V | Linear Rotary Position | PC Pin | ||||||||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SSIP Module | Hall Effect | External Magnet Not Included | 360 ° | 0 ° | 4-DMP | Through Hole | SENT | Programmable | 5.5 V | 4.5 V | Angle | PC Pin | |||||||||||
Melexis Technologies NV | -40 C | 150 °C | 4-SIP Module | Hall Effect | 4-DMP | Through Hole | 5.5 V | 4.5 V | 30 mA | 126 mT | 70 mT | 70 mT | 10 mA | 12 b | FA2 Pico-SPOX | Z | Y | X | Programmable |
