HMC511 Series

VCO SMT with Fo/2, 9.05 - 10.15 GHz

Catalog

VCO SMT with Fo/2, 9.05 - 10.15 GHz

Part	Frequency Range [Min]	Frequency Range [Max]	Icc Max [Max]	Power (dBm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	2nd Harmonic, Typ (dBc)	Frequency - Center	Package / Case	Pushing (MHz/V)	Operating Temperature [Max]	Operating Temperature [Min]	Tuning Voltage (VDC) [Min]	Tuning Voltage (VDC) [Max]	Phase Noise Typ (dBc/Hz)	Utilized IC / Part	Contents	Type	Frequency [Max]	Frequency [Min]
Analog Devices HMC511LP5E	4.525 GHz 9.05 GHz	5.075 GHz 10.15 GHz	300 mA	8 dBm 12.5 dBm	0.197 in	5 mm	0.197 "	5 mm	0.039 in	1 mm	15 dBc	4.8 GHz 9.6 GHz	32-VFQFN Exposed Pad	15 MHz/V	85 °C	-40 °C	2 V	13 V	-115 dBc/Hz

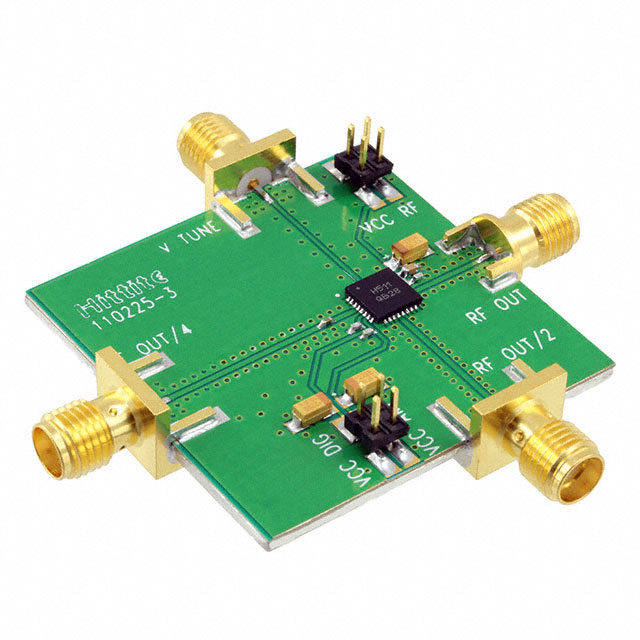

Analog Devices 110227-HMC511LP5																				HMC511LP5	Board(s)	Voltage Controlled Oscillator (VCO)	10.15 GHz	9.05 GHz
Analog Devices HMC511LP5ETR	4.525 GHz 9.05 GHz	5.075 GHz 10.15 GHz	300 mA	8 dBm 12.5 dBm	0.197 in	5 mm	0.197 "	5 mm	0.039 in	1 mm	15 dBc	4.8 GHz 9.6 GHz	32-VFQFN Exposed Pad	15 MHz/V	85 °C	-40 °C	2 V	13 V	-115 dBc/Hz

Catalog

VCO SMT with Fo/2, 9.05 - 10.15 GHz

Key Features

• Dual Output: Fo = 9.05 - 10.15 GHzFo/2 = 4.525 - 5.075 GHz

• Phase Noise: -115 dBc/Hz @100 kHz Typ.

• Pout: +13 dBm

• No External Resonator Needed

• QFN Leadless SMT Package, 25 mm2

Description

The HMC511LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC511LP5(E) integrates resonators, negative resistance devices, varactor diodes and feature a half frequency output. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +13 dBm typical from a +5V supply. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.APPLICATIONSVSAT RadioPoint-to-Point/Multi-Point RadioTest Equipment & Industrial ControlsMilitary End-Use
