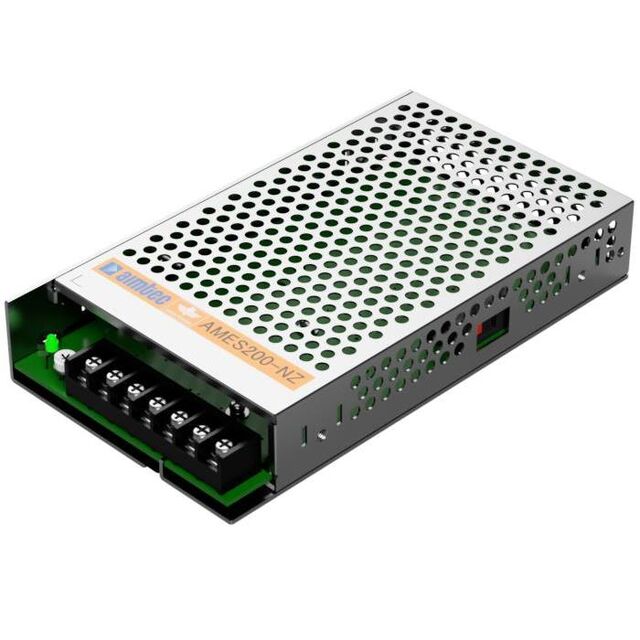

AMES200 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 15V 210W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Efficiency	Mounting Type	Number of Outputs	Standard Number	Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Applications	Voltage - Output 1	Voltage - Isolation	Current - Output 1 [custom]	Current - Output 1	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [custom]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AMES200-15SNZ-Q	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	88 %	Chassis Mount	1	60335-1 62368-1	Conformal Coated Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	210 W	Household Appliances ITE (Commercial)	15 V	3000 V	14 A
aimtec AMES200-48SNZ-P	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output DC Input Capable Universal Input	-30 °C	70 °C	CB CE cURus EN IEC UL	90 %	Chassis Mount	1	60335-1 61558-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 370 VDC 373 VDC	211 W 211.2 W	Household Appliances ITE (Commercial)	48 V	3000 V 4000 V		4.4 A	52.8 V	43.2 V
aimtec AMES200-12SNZ-P	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output DC Input Capable Universal Input	-30 °C	70 °C	CB CE EN IEC UL	87.5 %	Chassis Mount	1	60335-1 61558-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 370 VDC 373 VDC	204 W	Household Appliances ITE (Commercial)	12 V	3000 V 4000 V		17 A			13.8 V	10.2 V
aimtec AMES200-24SNZ-Q	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	88.5 %	Chassis Mount	1	60335-1 62368-1	Conformal Coated Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	211 W	Household Appliances ITE (Commercial)	24 V	3000 V		8.8 A
aimtec AMES200-5SNZ	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	87 %	Chassis Mount	1	60335-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	150 W	Household Appliances ITE (Commercial)	5 V	3000 V		30 A
aimtec AMES200-36SNZ	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	89 %	Chassis Mount	1	60335-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	212 W	Household Appliances ITE (Commercial)		3000 V		5.9 A					36 V
aimtec AMES200-5SNZ-Q	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	87 %	Chassis Mount	1	60335-1 62368-1	Conformal Coated Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	150 W	Household Appliances ITE (Commercial)	5 V	3000 V		30 A
aimtec AMES200-5SNZ-P	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output DC Input Capable Universal Input	-30 °C	70 °C	CB CE EN IEC UL	87 %	Chassis Mount	1	60335-1 61558-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 370 VDC 373 VDC	150 W 200 Watts	Household Appliances ITE (Commercial)	5 V	3000 V 4000 V		30 A 40 A			5.5 V	4.5 V
aimtec AMES200-12SNZ-Q	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output	-30 °C	70 °C	CB CE EN IEC UL	87.5 %	Chassis Mount	1	60335-1 62368-1	Conformal Coated Enclosed	90 VAC 240 VDC	264 VAC 373 VDC	204 W	Household Appliances ITE (Commercial)	12 V	3000 V		17 A
aimtec AMES200-36SNZ-P	1.18 in	30 mm	99 mm	3.9 "	7.05 "	179 mm	Adjustable Output DC Input Capable Universal Input	-30 °C	70 °C	CB CE cURus EN IEC UL	89 %	Chassis Mount	1	60335-1 61558-1 62368-1	Enclosed	90 VAC 240 VDC	264 VAC 370 VDC 373 VDC	212 W 212.4 W	Household Appliances ITE (Commercial)		3000 V 4000 V		5.9 A					36 V	39.6 V	32.4 V
