TYS Series

Catalog

POWER INDUCTORS - SMD 5.6UH 30% -40C + 125C

Part	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	DC Resistance (DCR)	Ratings	Current - Saturation (Isat)	Mounting Type	Current Rating (Amps)	Shielding	Inductance Frequency - Test	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Tolerance	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Supplier Device Package	Package / Case
Laird Technologies EMI TYS40125R6N-10	Wirewound	0.157 "	4 mm	0.157 in	4 mm	Nonstandard	140 mOhm	AEC-Q200	1 A	Surface Mount	1 A	Shielded	100 kHz	5.6 µH	0.039 in	1 mm	125 °C	-40 C	42 MHz	30 %

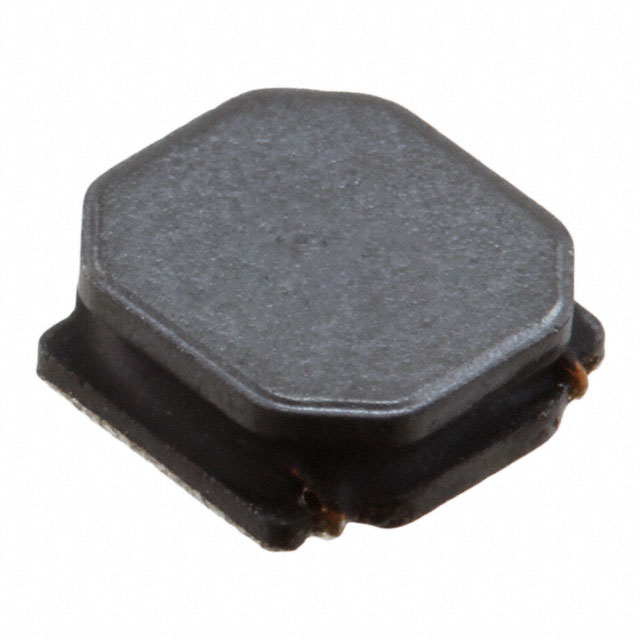

Laird Technologies EMI TYS50206R8M-10		0.197 "	5 mm	0.197 in	5 mm	2020 (5050 Metric)			2.05 A	Surface Mount	1.8 A	Shielded	100 kHz	6.8 µH		0.079 in	125 °C	-40 C	30 MHz	20 %	2 mm	83 mOhm

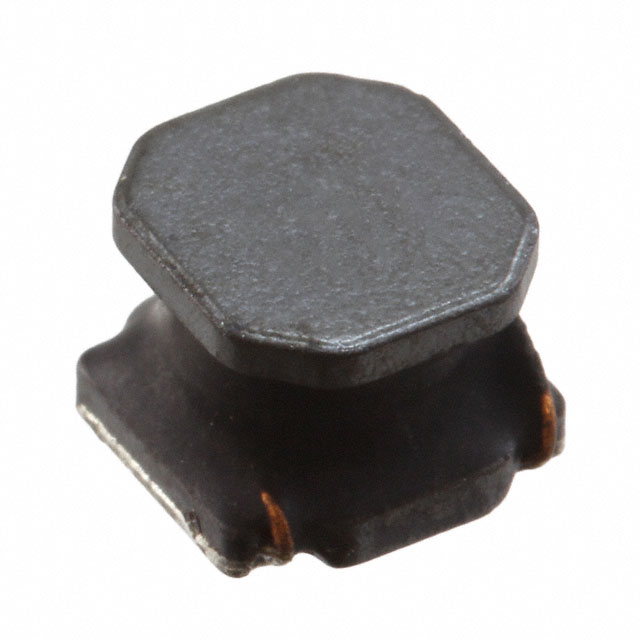

Laird Technologies EMI TYS5040220M-10		0.197 "	5 mm	0.197 in	5 mm	Nonstandard	129 mOhm		1.6 A	Surface Mount	1.5 A	Shielded	100 kHz	22 µH			125 °C	-40 C	11 MHz	20 %			4.2 mm	0.165 "

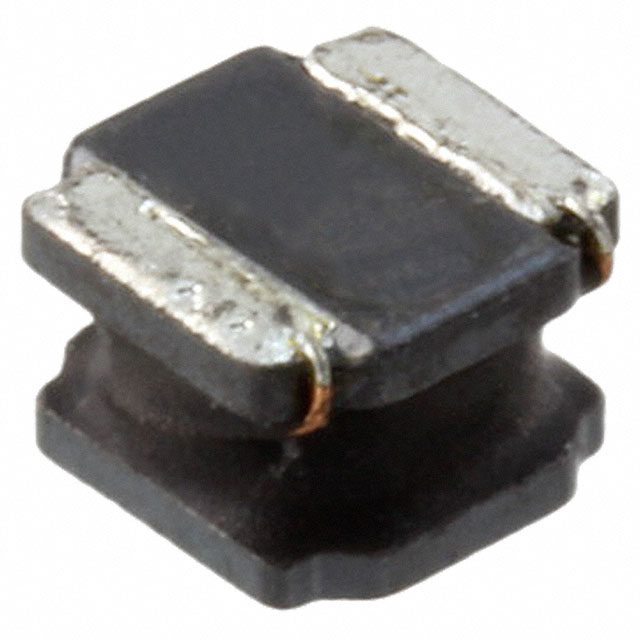

Laird Technologies EMI TYS4030220M-10	Wirewound	0.157 "	4 mm	0.157 in	4 mm	Nonstandard	292.5 mOhm		1.3 A	Surface Mount	1 A	Shielded	100 kHz	22 µH			125 °C	-40 C	10 MHz	20 %				0.118 "	3 mm
Laird Technologies EMI TYS252012L150M-10		0.079 in	2 mm	0.098 in	2.5 mm	1008	1.469 Ohm		0.68 A	Surface Mount	0.42 A	Shielded	100 kHz	15 µH	0.039 in	1 mm	125 °C	-40 C	25 MHz	20 %						2520 Metric	1008	2520 Metric
Laird Technologies EMI TYS50202R2N-10		0.197 "	5 mm	0.197 in	5 mm	2020 (5050 Metric)	32 mOhm		3.2 A	Surface Mount	2.9 A	Shielded	100 kHz	2.2 µH		0.079 in	125 °C	-40 C	57 MHz	30 %	2 mm

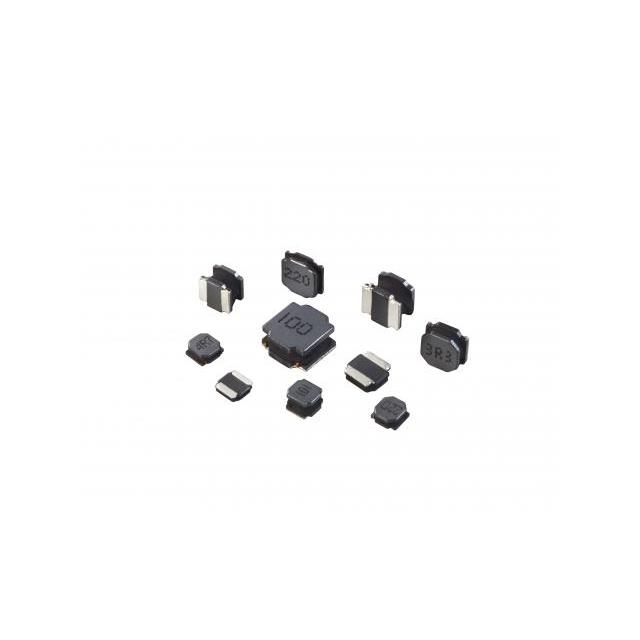

Laird Technologies EMI TYS40123R3N-10	Wirewound	0.157 "	4 mm	0.157 in	4 mm	Nonstandard	110 mOhm	AEC-Q200	1.72 A	Surface Mount	1.12 A	Shielded	100 kHz	3.3 µH	0.039 in	1 mm	125 °C	-40 C	60 MHz	30 %
Laird Technologies EMI TYS6028101M-10		0.236 "	6 mm	0.236 in	6 mm	Nonstandard	500 mOhm		0.65 A	Surface Mount	700 mA	Shielded	100 kHz	100 µH			125 °C	-40 C	7.1 MHz	20 %				0.118 "	3 mm

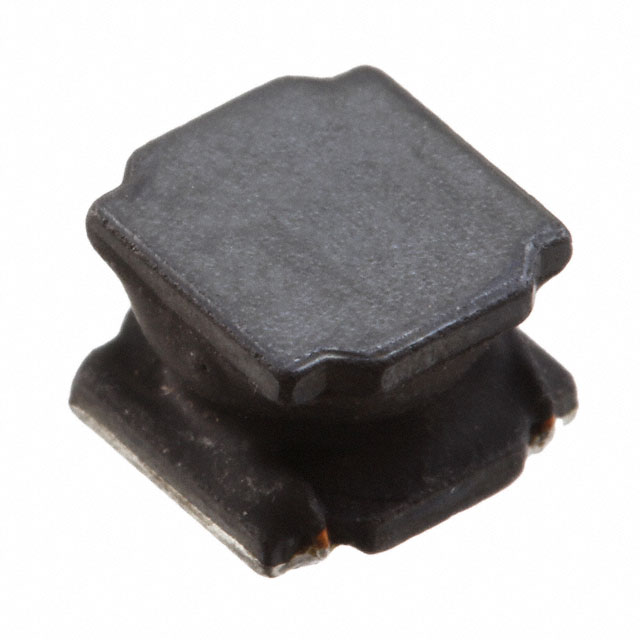

Laird Technologies EMI TYS6045330M-10		0.236 "	6 mm	0.236 in	6 mm	Nonstandard	137 mOhm	AEC-Q200	1.65 A	Surface Mount	1.45 A	Shielded	100 kHz	33 µH	0.185 "	4.7 mm	125 °C	-40 C	7.8 MHz	20 %
Laird Technologies EMI TYS60283R3N-10	Wirewound	0.236 "	6 mm	0.236 in	6 mm	Nonstandard	25 mOhm	AEC-Q200	4.15 A	Surface Mount	3.48 A	Shielded	100 kHz	3.3 µH			125 °C	-40 C	41 MHz	30 %				0.118 "	3 mm
