BP Series

Catalog

SIGNAL CONDITIONING 5.4GHZ BPF WIDEBAND CERAMIC

Part	Height (Max) [z]	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Insertion Loss	Frequency	Filter Type	Bandwidth	Package / Case	Package / Case	Mounting Type	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max)
Johanson Technology Inc. 5425BP15A1050001E	1.05 mm	0.041 in	2 mm	1.25 mm	0.049 "	0.079 in	2 dB	5.425 GHz	Band Pass	1.05 GHz	6 PC Pad	0805 (2012 Metric)	Surface Mount
Johanson Technology Inc. 5400BP14A0950001T			1.6 mm	0.8 mm	0.031 in 0.032 in	0.063 "	1.5 dB	5.375 GHz	Band Pass	950 MHz	4 PC Pad	0603 (1608 Metric)	Surface Mount	0.8 mm	0.026 in	0.65 mm

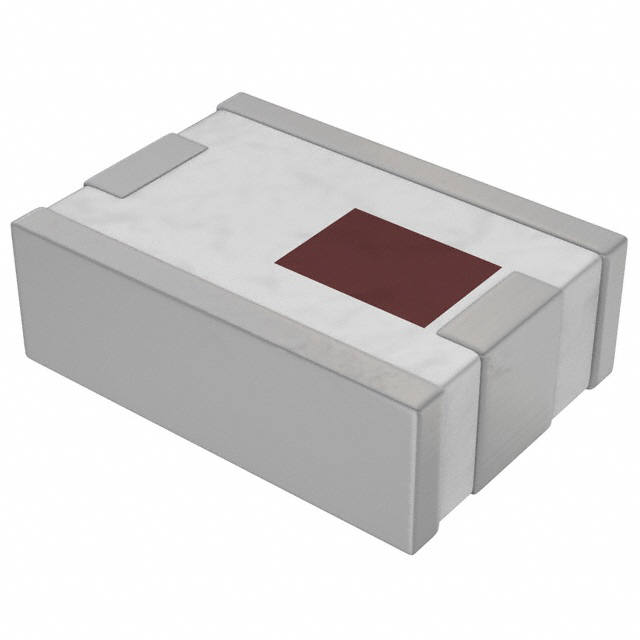

Johanson Technology Inc. 2450BP39D100C001E	1.05 mm	0.041 in	2.5 mm	2 mm	0.079 in	0.098 in	1.2 dB	2.45 GHz	Band Pass	100 MHz		1008 (2520 Metric) 4 PC Pad	Surface Mount
Johanson Technology Inc. 2450BP15Q0100001E	0.7 mm		2 mm	1.25 mm	0.049 "	0.079 in	1.8 dB	2.45 GHz	Band Pass	100 MHz	3 mm Width	0805 (2012 Metric)	Surface Mount		0.028 in
Johanson Technology Inc. 2450BP15W0100001E							2.5 dB	2.45 GHz	Band Pass	100 MHz
