F3L11MR12 Series

Manufacturer: INFINEON

Catalog

LOW POWER EASY

Part	Supplier Device Package	IGBT Type	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	NTC Thermistor	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Package / Case	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Collector Cutoff (Max) [Max]	Configuration	Current - Collector (Ic) (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id
INFINEON F3L11MR12W2M1B65BOMA1	AG-EASY2BM-2	Trench	7.36 nF	2.1 V		-40 °C	150 °C	20 mW	Module	Standard	1200 V	Chassis Mount	40 µA	Three Level Inverter	100 A

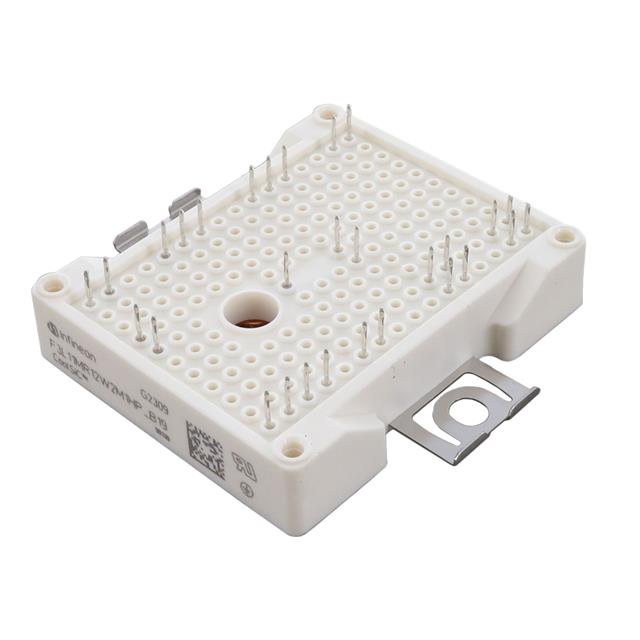

INFINEON F3L11MR12W2M1HPB19BPSA1						-40 °C	175 °C		Module			Chassis Mount		4 N-Channel		65 A	Silicon Carbide (SiC)	223 nC	16 mOhm	6600 pF	1.2 kV	1200 V	5.15 V
