LP2951-Q1 Series

Automotive 100mA 30V low-dropout voltage regulator with power good and enable

Catalog

Automotive 100mA 30V low-dropout voltage regulator with power good and enable

Part	Current - Output	Output Type	Voltage - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Number of Regulators	Current - Quiescent (Iq)	Mounting Type	Output Configuration	Current - Supply (Max) [Max]	Control Features	Protection Features	Voltage - Output (Max) [Max]	Grade	Qualification	Voltage - Output (Min/Fixed)	Package / Case [custom]	Package / Case
Texas Instruments LP2951CM	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C	1.235 V	5 V	30 V	0.6 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit
Texas Instruments LP2951ACSDX/NOPB	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C	1.235 V	5 V	30 V	0.6 V	8-WSON (4x4)	8-WDFN Exposed Pad			1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit

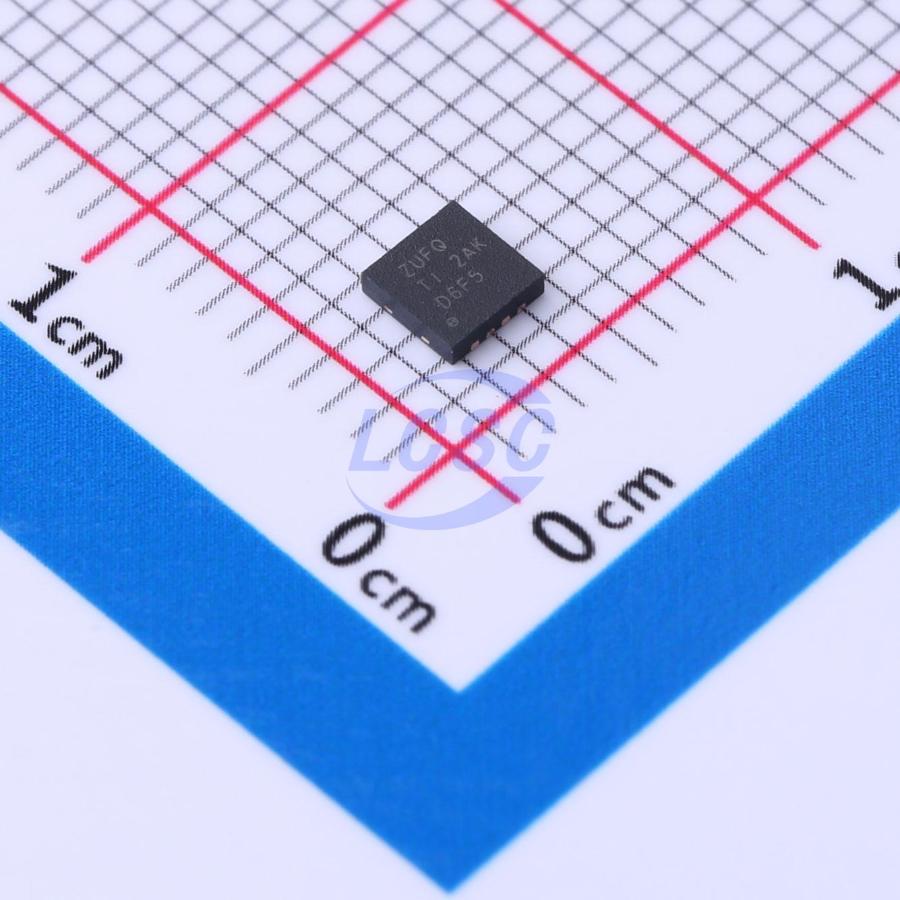

Texas Instruments LP2951-50QDRGRQ1	100 mA	Adjustable (Fixed)		-40 °C	125 ¯C	1.235 V	5 V	30 V	0.6 V	8-SON (3x3)	8-WFDFN Exposed Pad			1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit	30 V	Automotive	AEC-Q100
Texas Instruments LP2951ACMX-3.0	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C		3 V	30 V	0.6 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit				1.235 V
Texas Instruments LP2951CSDX-3.0/NOPB	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C		3 V	30 V	0.6 V	8-WSON (4x4)	8-WDFN Exposed Pad			1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit				1.235 V
Texas Instruments LP2951ACMM-3.0	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C		3 V	30 V	0.6 V		8-MSOP 8-TSSOP			1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit				1.235 V	0.118 in	3 mm
Texas Instruments LP2951-33D	100 mA	Adjustable (Fixed)		-40 °C	125 ¯C		3.3 V	30 V	0.6 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit	30 V			1.235 V
Texas Instruments LP2951CM-3.3/NOPB	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C		3.3 V	30 V	0.6 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit				1.235 V
Texas Instruments LP2951CMM/NOPB	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C	1.235 V	5 V	30 V	0.6 V		8-MSOP 8-TSSOP			1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit					0.118 in	3 mm
Texas Instruments LP2951CM-3.0	100 mA	Adjustable (Fixed)	29 V	-40 °C	125 ¯C		3 V	30 V	0.6 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	120 µA	Surface Mount	Positive	14 mA	Enable	Over Current Over Temperature Short Circuit				1.235 V

Catalog

Automotive 100mA 30V low-dropout voltage regulator with power good and enable

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: −40°C to +125°C, TATemperature grade 1: −40°C to +125°C, TJWide input voltage rangeVIN range (new chip): 2V to 30VWide output voltage range VOUTFixed option: 3.3V, 5.0VAdjustable option: 1.2V to 29VOutput current: Up to 100mAVOUT accuracy:±2% over line, load, and temperature for legacy chip±1% over line, load, and temperature for new chipQuiescent current IQ (new chip): 50µA (typical)Low dropout: 340mV (typical) for new chipOutput current limiting and thermal shutdownOpen-drain error outputStable over a wide range of ceramic output capacitor values:CL range: 1µF to 100µF (new chip)ESR range: 0Ω to 2Ω (new chip)Package options:D (8-pin SOIC)DRG (8-pin WSON)AEC-Q100 qualified for automotive applications:Temperature grade 1: −40°C to +125°C, TATemperature grade 1: −40°C to +125°C, TJWide input voltage rangeVIN range (new chip): 2V to 30VWide output voltage range VOUTFixed option: 3.3V, 5.0VAdjustable option: 1.2V to 29VOutput current: Up to 100mAVOUT accuracy:±2% over line, load, and temperature for legacy chip±1% over line, load, and temperature for new chipQuiescent current IQ (new chip): 50µA (typical)Low dropout: 340mV (typical) for new chipOutput current limiting and thermal shutdownOpen-drain error outputStable over a wide range of ceramic output capacitor values:CL range: 1µF to 100µF (new chip)ESR range: 0Ω to 2Ω (new chip)Package options:D (8-pin SOIC)DRG (8-pin WSON)

Description

The LP2950-N and LP2951-N are micropower voltage regulators with very low quiescent current (75 µA typical) and very low dropout voltage (typical 40 mV at light loads and 380 mV at 100 mA). They are ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the device increases only slightly in dropout, prolonging battery life. Careful design of the LP2950-N/LP2951-N has minimized all contributions to the error budget. This includes a tight initial tolerance (0.5% typical), extremely good load and line regulation (0.05% typical) and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is anerrorflag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 5-V, 3-V, or 3.3-V output (depending on the version), or programmed from 1.24 V to 29 V with an external pair of resistors. The LP2950-N is available in the surface-mount TO-252 package and in the popular 3-pin TO-92 package for pin-compatibility with older 5-V regulators. The 8-pin LP2951-N is available in plastic, ceramic dual-in-line, WSON, or metal can packages and offers additional system functions. The LP2950-N and LP2951-N are micropower voltage regulators with very low quiescent current (75 µA typical) and very low dropout voltage (typical 40 mV at light loads and 380 mV at 100 mA). They are ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the device increases only slightly in dropout, prolonging battery life. Careful design of the LP2950-N/LP2951-N has minimized all contributions to the error budget. This includes a tight initial tolerance (0.5% typical), extremely good load and line regulation (0.05% typical) and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is anerrorflag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 5-V, 3-V, or 3.3-V output (depending on the version), or programmed from 1.24 V to 29 V with an external pair of resistors. The LP2950-N is available in the surface-mount TO-252 package and in the popular 3-pin TO-92 package for pin-compatibility with older 5-V regulators. The 8-pin LP2951-N is available in plastic, ceramic dual-in-line, WSON, or metal can packages and offers additional system functions.
