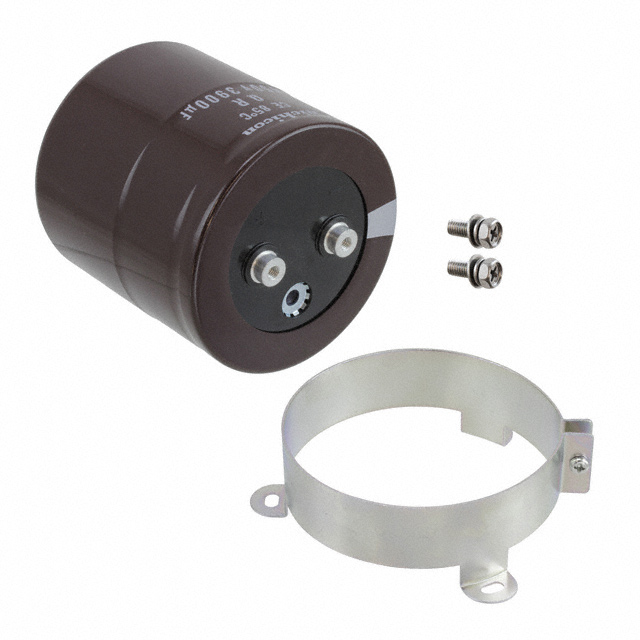

LQR Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 2700UF 450V 20% (76.2 X 80MM) CLAMP MOUNT SCREW 10A 5000H 85°C BULK

Part	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Applications	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Tolerance	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon LQR2W272MSEHBB	2700 µF	Radial Can - Screw Terminals	3 in	76.2 mm	Chassis Mount	3.268 "	83 mm	1.252 in	31.8 mm	14 A	General Purpose	5000 Hrs	85 °C	-25 °C	450 V	20 %	Polar	10 A
Nichicon LQR2W103MSEJBB	10000 µF	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount			1.252 in	31.8 mm	43.82 A	General Purpose	5000 Hrs	85 °C	-25 °C	450 V	20 %	Polar	31.3 A	193 mm	7.598 in
Nichicon LQR2G562MSEGBB	5.6 mF	Radial Can - Screw Terminals	2.5 in	63.5 mm	Chassis Mount			1.126 "	28.6 mm	30.8 A	General Purpose	5000 Hrs	85 °C	-25 °C	400 V	20 %	Polar	22 A	173 mm	6.811 in
Nichicon LQR2W681MSECBN	680 µF	Radial Can - Screw Terminals	1.378 "	35 mm	Chassis Mount			0.5 in	12.7 mm	4.9 A	General Purpose	5000 Hrs	85 °C	-25 °C	450 V	20 %	Polar	3.5 A	103 mm	4.055 in
Nichicon LQR2V102MSEC	1000 µF	Radial Can - Screw Terminals	1.378 "	35 mm	Chassis Mount			0.5 in	12.7 mm	6.02 A	General Purpose	5000 Hrs	85 °C	-25 °C	350 V	20 %	Polar	4.3 A	103 mm	4.055 in
Nichicon LQR2W392MSEJ	3900 µF	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount			1.252 in	31.8 mm	19.04 A	General Purpose	5000 Hrs	85 °C	-25 °C	450 V	20 %	Polar	13.6 A	93 mm	3.661 in
Nichicon LQR2V332MSEF	3.3 mF	Radial Can - Screw Terminals	2.008 in	51 mm	Chassis Mount			0.866 "	22 mm	17.36 A	General Purpose	5000 Hrs	85 °C	-25 °C	350 V	20 %	Polar	12.4 A	133 mm	5.236 "
Nichicon LQR2W472MSEHBN	4700 µF	Radial Can - Screw Terminals	3 in	76.2 mm	Chassis Mount			1.252 in	31.8 mm		General Purpose	5000 Hrs	85 °C	-25 °C	450 V	20 %	Polar	16.3 A	133 mm	5.236 "
Nichicon LQR2V272MSEGBN	2700 µF	Radial Can - Screw Terminals	2.5 in	63.5 mm	Chassis Mount	3.268 "	83 mm	1.126 "	28.6 mm	14.84 A	General Purpose	5000 Hrs	85 °C	-25 °C	350 V	20 %	Polar	10.6 A
Nichicon LQR2G123MSEJBN	12000 µF	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount			1.252 in	31.8 mm	52.64 A	General Purpose	5000 Hrs	85 °C	-25 °C	400 V	20 %	Polar	37.6 A	173 mm	6.811 in
