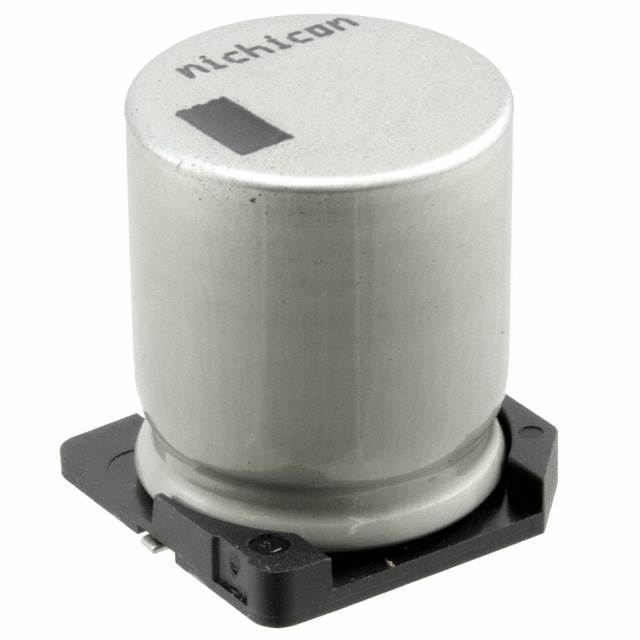

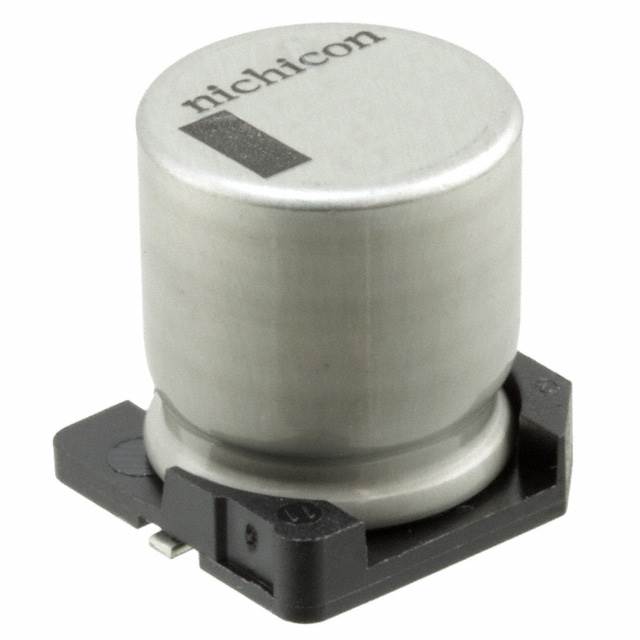

UUG Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD

Part	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Ripple Current @ High Frequency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Tolerance	Ratings	Applications	Mounting Type	Package / Case	Capacitance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Nichicon UUG1E332MNJ1MS	1.7 A	0.886 in	22.5 mm	Polar	1.955 A	25 VDC	85 °C	-40 C	0.752 "	19.1 mm	0.752 "	19.1 mm	20 %	AEC-Q200	General Purpose	Surface Mount	Radial Can - SMD	3.3 mF	2000 Hrs	0.709 in	18 mm

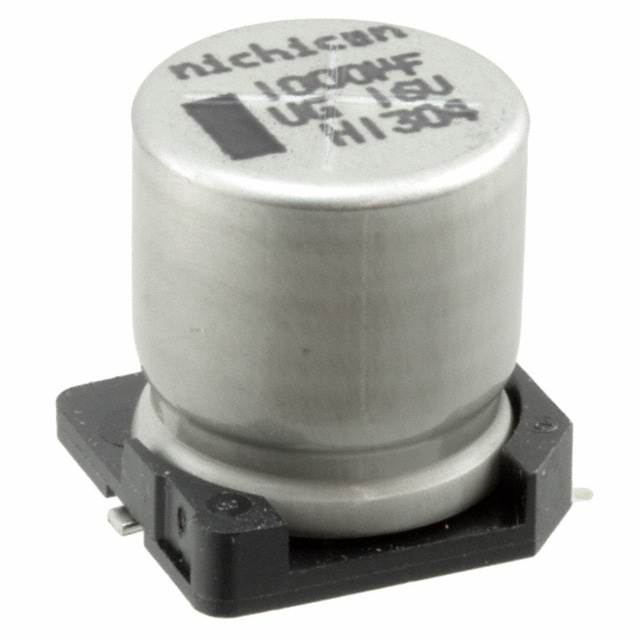

Nichicon UUG1C102MNQ1ZD	710 mA	0.571 "	14.5 mm	Polar	816.5 mA	16 V	85 °C	-40 C	0.535 in	13.6 mm	0.535 in	13.6 mm	20 %		General Purpose	Surface Mount	Radial Can - SMD	1000 µF	2000 Hrs	0.492 in	12.5 mm
Nichicon UUG1H102MNQ1MS	1.15 A	0.886 in	22.5 mm	Polar	1.3225 A	50 VDC	85 °C	-40 C	0.752 "	19.1 mm	0.752 "	19.1 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	1000 µF	2000 Hrs	0.709 in	18 mm
Nichicon UUG2G100MNQ1MS	140 mA			Polar	224 mA	400 V	85 °C	-40 C	0.673 in	17.1 mm	0.673 in	17.1 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	10 µF	2000 Hrs	0.63 in	16 mm	17.5 mm	0.689 in
Nichicon UUG2E100MNQ1MS	150 mA		0.492 in	Polar	240 mA	250 V	85 °C	-40 C	0.535 in	13.6 mm	0.535 in	13.6 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	10 µF	2000 Hrs	0.492 in	12.5 mm			12.5 mm
Nichicon UUG2D680MNQ1MS	505 mA			Polar	808 mA	200 VDC	85 °C	-40 C	0.752 "	19.1 mm	0.752 "	19.1 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	68 µF	2000 Hrs	0.709 in	18 mm	17.5 mm	0.689 in
Nichicon UUG1H331MNJ1MS	520 mA	0.555 "	14.1 mm	Polar	780 mA	50 VDC	85 °C	-40 C	0.535 in	13.6 mm	0.535 in	13.6 mm	20 %	AEC-Q200	General Purpose	Surface Mount	Radial Can - SMD	330 µF	2000 Hrs	0.492 in	12.5 mm
Nichicon UUG2C101MNQ1MS	590 mA			Polar	944 mA	160 V	85 °C	-40 C	0.752 "	19.1 mm	0.752 "	19.1 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	100 µF	2000 Hrs	0.709 in	18 mm	17.5 mm	0.689 in
Nichicon UUG2D680MNQ6MS	505 mA	0.886 in	22.5 mm	Polar	808 mA	200 VDC	85 °C	-40 C	0.673 in	17.1 mm	0.673 in	17.1 mm	20 %	AEC-Q200	Automotive	Surface Mount	Radial Can - SMD	68 µF	2000 Hrs	0.63 in	16 mm
