MIC29310 Series

Catalog

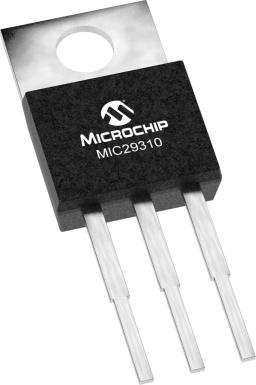

3.0A LDO FIXED VOLTAGE 3 TO-220 TUBE ROHS COMPLIANT: YES

Part	Current - Output	Package / Case	Mounting Type	Output Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Protection Features	Operating Temperature [Max]	Output Configuration	Supplier Device Package	Number of Regulators	Voltage Dropout (Max) [Max]
Microchip Technology MIC29310-3.3WT	3 A	TO-220-3	Through Hole	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-220-3	1	1 V
Microchip Technology MIC29310-5.0WT	3 A	TO-220-3	Through Hole	1.81 mOhm	16 V	5 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-220-3	1	1 V
Microchip Technology MIC29310-3.3BU	3 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-263-3	1	1 V
Microchip Technology MIC29310-3.3BT	3 A	TO-220-3	Through Hole	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-220-3	1	1 V
Microchip Technology MIC29310-5.0BT	3 A	TO-220-3	Through Hole	1.81 mOhm	16 V	5 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-220-3	1	1 V
Microchip Technology MIC29310-5.0WU-TR	3 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	1.81 mOhm	16 V	5 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-263-3	1	1 V
Microchip Technology MIC29310-3.3WU	3 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-263-3	1	1 V
Microchip Technology MIC29310-3.3BU TR	3 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-263-3	1	1 V
Microchip Technology MIC29310-3.3WU-TR	3 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	1.81 mOhm	16 V	3.3 V	150 mA	Over Current Over Temperature Reverse Polarity	125 °C	Positive	TO-263-3	1	1 V
