DF1B Series

Catalog

CONN RCPT HSG 8POS 2.50MM

...

Part	Note	Insulation Material	Number of Positions	Pitch	Pitch	Contact Type	Color	Number of Rows	Contact Termination	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mated Stacking Heights	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Color	Shrouding	Features	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Voltage Rating	Style	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Contact Finish	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Wire Entry Location	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products	Contact Finish - Post	Number of Positions [custom]
Hirose Electric Co Ltd DF1B-8S-2.5R	Contacts Not Included	Nylon Polyamide (PA)	8	2.5 mm	0.098 in	Female Socket	White	1	Crimp IDC	Free Hanging (In-Line)	Receptacle	85 °C	-35 °C

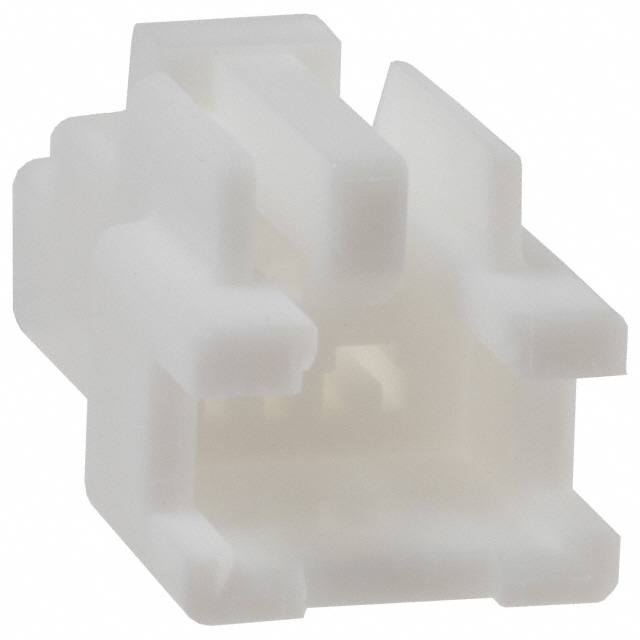

Hirose Electric Co Ltd DF1B-2EP-2.5RC	Contacts Not Included	Nylon Polyamide (PA)	2	2.5 mm	0.098 in	Male Pin	White	1	Crimp IDC	Free Hanging (In-Line)	Plug	85 °C	-35 °C	Latch Lock

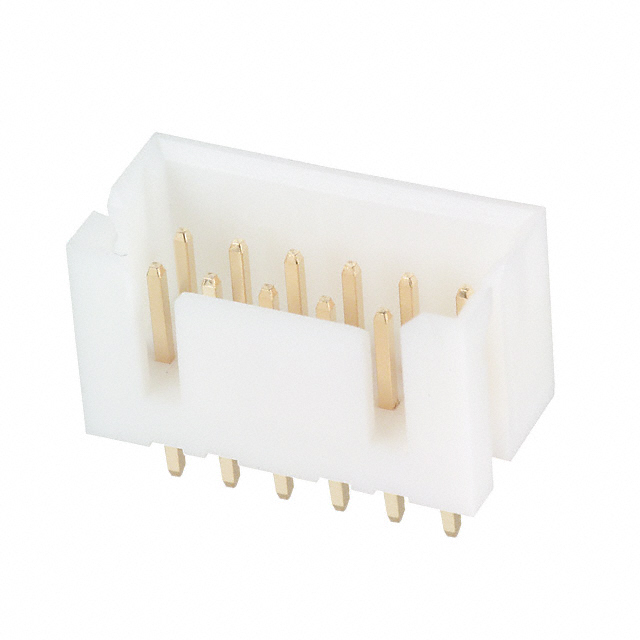

Hirose Electric Co Ltd DF1B-12DP-2.5DSA(01)		Nylon Polyamide (PA)	12			Male Pin				Through Hole	Header	85 °C	-35 °C	Push-Pull	14 mm	Square	2.5 mm	0.098 in	0.142 in	3.6 mm	White	Shrouded - 4 Wall	Keying Slot	All	UL94 V-0	8 µin	0.203 µm	10.6 mm	0.417 in	2	2.5 mm	0.098 in	250 V	Board to Cable/Wire	0.177 in	4.5 mm	Brass	Gold	Solder	9.5 mm	0.374 in
Hirose Electric Co Ltd DF1B-13EP-2.5RC	Contacts Not Included	Nylon Polyamide (PA)	13	2.5 mm	0.098 in	Male Pin	White	1	Crimp IDC	Free Hanging (In-Line)	Plug	85 °C	-35 °C	Latch Lock
Hirose Electric Co Ltd DF1B-15P-2.5DSA		Nylon Polyamide (PA)	15			Male Pin		1		Through Hole	Header	85 °C	-35 °C	Push-Pull	14 mm	Square			0.142 in	3.6 mm	White	Shrouded - 4 Wall	Keying Slot	All	UL94 V-0			10.6 mm	0.417 in		2.5 mm	0.098 in	250 V	Board to Cable/Wire	0.177 in	4.5 mm	Brass		Solder	9.5 mm	0.374 in
Hirose Electric Co Ltd DF1B-2022SC									Crimp																																	Tin	Socket	22 AWG	19.5 AWG
Hirose Electric Co Ltd DF1B-TA2428SHC																																														Side Entry	24 AWG	28 AWG	Hand Crimper	Rectangular Contacts

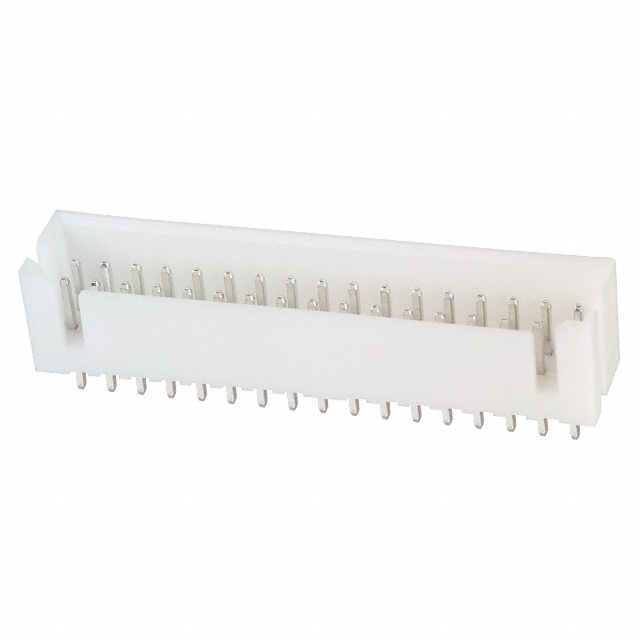

Hirose Electric Co Ltd DF1B-34DP-2.5DSA		Nylon Polyamide (PA)				Male Pin				Through Hole	Header	85 °C	-35 °C	Push-Pull	14 mm	Square	2.5 mm	0.098 in	0.142 in	3.6 mm	White	Shrouded - 4 Wall	Keying Slot	All	UL94 V-0			10.6 mm	0.417 in	2	2.5 mm	0.098 in	250 V	Board to Cable/Wire	0.177 in	4.5 mm	Brass		Solder	9.5 mm	0.374 in										Tin	34

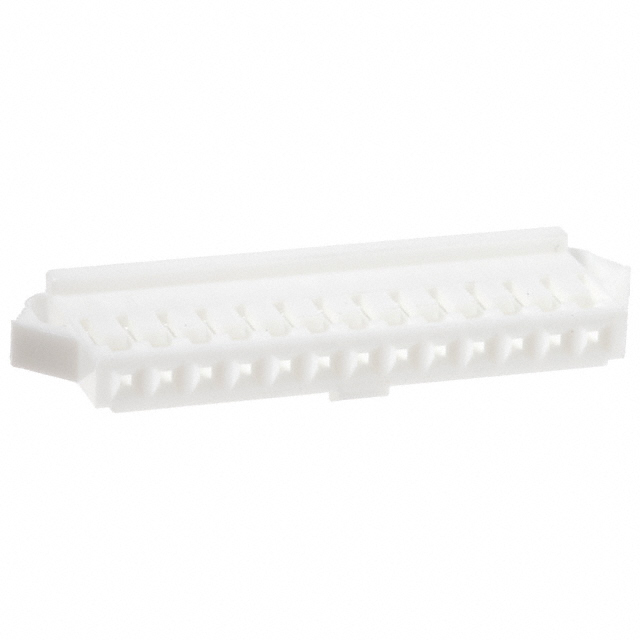

Hirose Electric Co Ltd DF1B-13ES-2.5RC	Contacts Not Included	Nylon Polyamide (PA)	13	2.5 mm	0.098 in	Female Socket	White	1	Crimp IDC	Panel Mount Snap-In	Receptacle	85 °C	-35 °C	Locking Ramp

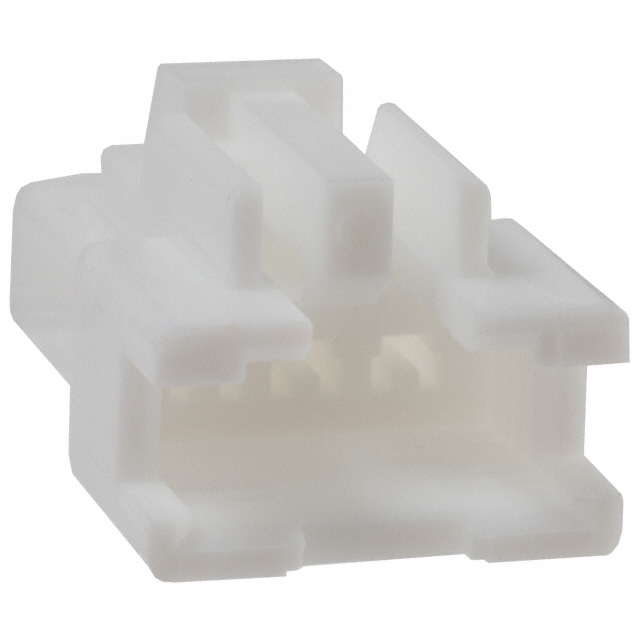

Hirose Electric Co Ltd DF1B-3EP-2.5RC	Contacts Not Included	Nylon Polyamide (PA)		2.5 mm	0.098 in	Male Pin	White	1	Crimp IDC	Free Hanging (In-Line)	Plug	85 °C	-35 °C	Latch Lock
