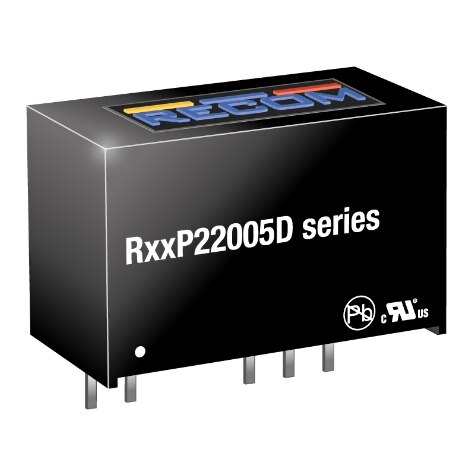

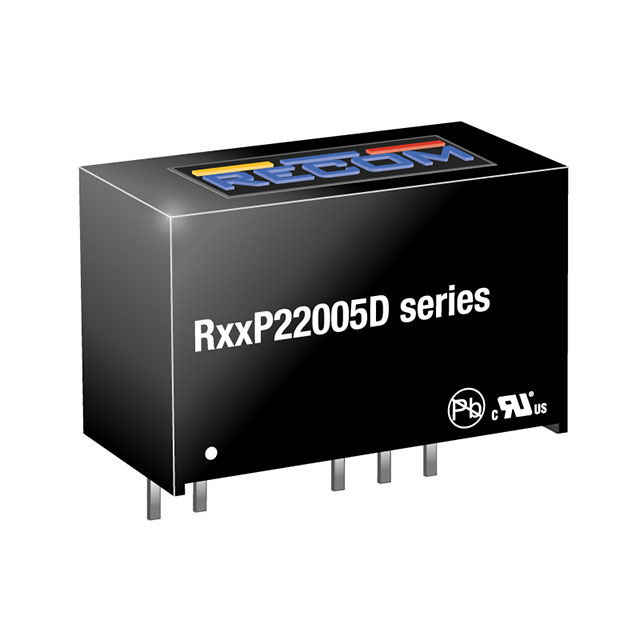

RxxP22005D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 24VIN +20/-5VOUT 50/-200MA

Part	Current - Output (Max)	Power (Watts)	Mounting Type	Voltage - Output 2	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Input (Min) [Min]	Features	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Input (Max) [Max]
Recom Power R24P22005D/P	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	21.6 V	SCP	84 %	Isolated Module	-40 C	95 °C	ITE (Commercial)	26.4 V
Recom Power R15P22005D	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	13.5 V		83 %	Isolated Module	-40 C	95 °C	ITE (Commercial)	16.5 V
Recom Power R15P22005D/P	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	13.5 V	SCP	83 %	Isolated Module	-40 C	95 °C	ITE (Commercial)	16.5 V
Recom Power R12P22005D/P	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	10.8 V	SCP		Isolated Module	-40 C	95 °C	ITE (Commercial)	13.2 V
Recom Power R24P22005D	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	21.6 V		84 %	Isolated Module	-40 C	95 °C	ITE (Commercial)	26.4 V
Recom Power R05P22005D/P	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	4.5 V	SCP		Isolated Module	-40 C	95 °C	ITE (Commercial)	5.5 V
Recom Power R12P22005D	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	10.8 V			Isolated Module	-40 C	95 °C	ITE (Commercial)	13.2 V
Recom Power R05P22005D	0.2 A 50 mA	2 W	Through Hole	-5 V	2	20 V	5.2 kV	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	7-SIP Module 5 Leads	4.5 V			Isolated Module	-40 C	95 °C	ITE (Commercial)	5.5 V
