HA216J Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

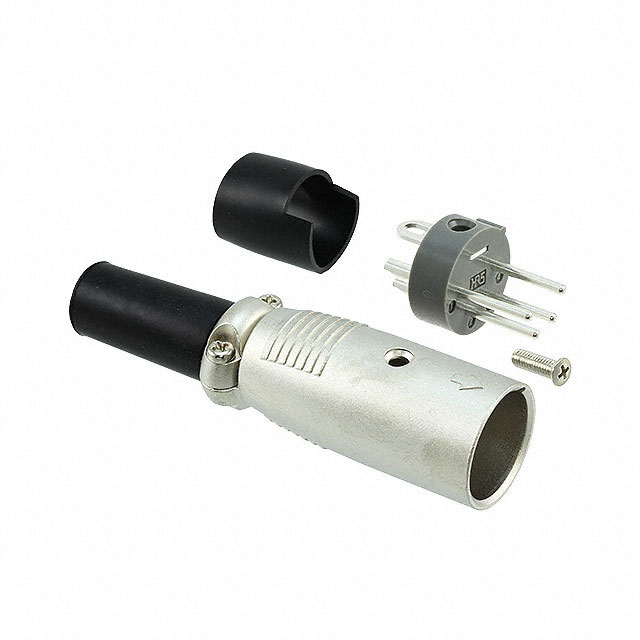

CONN JACK MALE 4P SILV SLDR CUP
| Part | Connector Type | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Color | Features | Mounting Type | Shielding | Shell Finish | Fastening Type | Contact Material | Applications | Shell Size - Insert | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Contact Finish - Mating | Insert Material [custom] | Insert Material [custom] | Number of Positions | Material Flammability Rating | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Jack Male Pins | 130 VAC 180 VDC | 78.7 µin | 2 µm | 5 A | Silver | Cable Clamp Strain Relief | Free Hanging (In-Line) | Shielded | Nickel | Push-Pull | Brass | Industrial | 16 | Metal | -25 °C | 70 °C | Zinc Alloy | Silver | Nylon | Polyamide (PA) | 4 | UL94 V-0 | Keyed |
Hirose Electric Co Ltd | Jack Male Pins | 130 VAC 180 VDC | 78.7 µin | 2 µm | 4 A | Silver | Cable Clamp Strain Relief | Free Hanging (In-Line) | Shielded | Nickel | Push-Pull | Brass | Industrial | 16 | Metal | -25 °C | 70 °C | Zinc Alloy | Silver | Nylon | Polyamide (PA) | 5 | UL94 V-0 | Keyed |
