TS27L2 Series

Catalog

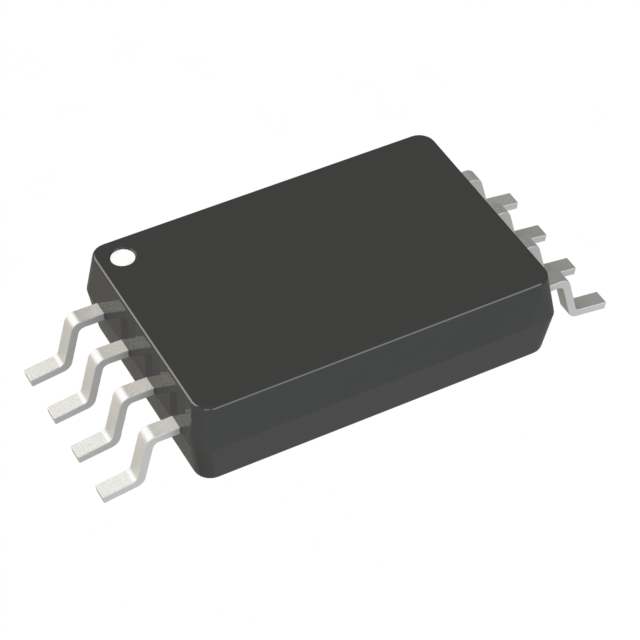

IC CMOS 2 CIRCUIT 8TSSOP

Part	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Voltage - Input Offset	Package / Case	Package / Case	Package / Case	Current - Input Bias	Mounting Type	Current - Supply	Slew Rate	Gain Bandwidth Product	Number of Circuits	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Voltage - Supply Span (Max) [Max]
STMicroelectronics TS27L2BIPT	45 mA	3 V	1.1 mV	0.173 in	8-TSSOP	4.4 mm	1 pA	Surface Mount	10 µA	0.04 V/µs	100 kHz	2	8-TSSOP	125 °C	-40 C	CMOS	16 V
STMicroelectronics TS27L2IN	45 mA	3 V	1.1 mV		8-DIP (0.300" 7.62mm)		1 pA	Through Hole	10 µA	0.04 V/µs	100 kHz	2	8-Mini DIP	125 °C	-40 C	CMOS	16 V
STMicroelectronics TS27L2ACN	45 mA	3 V	1.1 mV		8-DIP (0.300" 7.62mm)		1 pA	Through Hole	10 µA	0.04 V/µs	100 kHz	2	8-Mini DIP	70 °C	0 °C	CMOS	16 V
STMicroelectronics TS27L2ID	45 mA	3 V	1.1 mV	0.154 in	8-SOIC	3.9 mm	1 pA	Surface Mount	10 µA	0.04 V/µs	100 kHz	2	8-SOIC	125 °C	-40 C	CMOS	16 V
STMicroelectronics TS27L2IPT	45 mA	3 V	1.1 mV	0.173 in	8-TSSOP	4.4 mm	1 pA	Surface Mount	10 µA	0.04 V/µs	100 kHz	2	8-TSSOP	125 °C	-40 C	CMOS	16 V
