A3B-24PA Series

Catalog

CONN HEADER R/A 24POS 2MM

Part	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Contact Shape	Number of Positions	Contact Finish - Mating	Contact Material	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Insulation Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Style	Contact Finish Thickness - Mating	Contact Finish - Post	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Color	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Mated Stacking Heights [z]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Current Rating (Amps)
Hirose Electric Co Ltd A3B-24PA-2DS(71)	0.079 "	2 mm	Kinked Pin Solder	Push-Pull	2 mm	0.079 in	2	Square	24	Gold	Brass	UL94 V-0	2.6 mm	0.102 in	3.5 mm	0.138 in	Header	Male Pin	Nylon Polyamide (PA)	All	4 mm	0.157 in	Board to Board Cable	Flash	Tin	Unshrouded	Right Angle Through Hole	-55 C	85 °C	200 VAC	Black
Hirose Electric Co Ltd A3B-24PA-2DSA(51)	0.079 "	2 mm	Solder	Push-Pull	2 mm	0.079 in	2	Square	24	Gold	Brass	UL94 V-0	2.6 mm	0.102 in	3.5 mm	0.138 in	Header	Male Pin	Nylon Polyamide (PA)	All			Board to Board Cable			Unshrouded	Through Hole	-55 C	85 °C	200 VAC	Black	1.8 mm	0.071 in	7.9 mm	0.311 in
Hirose Electric Co Ltd A3B-24PA-2DSA(71)	0.079 "	2 mm	Solder	Push-Pull	2 mm	0.079 in	2	Square	24	Gold	Brass	UL94 V-0	2.6 mm	0.102 in	3.5 mm	0.138 in	Header	Male Pin	Nylon Polyamide (PA)	All			Board to Board Cable	Flash	Tin	Unshrouded	Through Hole	-55 C	85 °C	200 VAC	Black	1.8 mm	0.071 in	7.9 mm	0.311 in	6 mm 8.8 mm	78.7 µin	2 µm

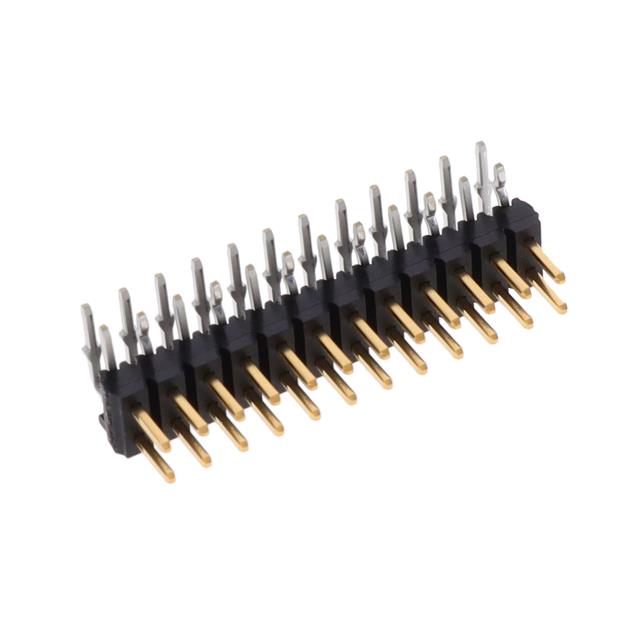

Hirose Electric Co Ltd A3B-24PA-2DS(51)	0.079 "	2 mm	Kinked Pin Solder	Push-Pull	2 mm	0.079 in	2	Square	24	Gold	Brass	UL94 V-0	2.6 mm	0.102 in	3.5 mm	0.138 in	Header	Male Pin	Nylon Polyamide (PA)	All	4 mm	0.157 in	Board to Board Cable			Unshrouded	Right Angle Through Hole	-55 C	85 °C	200 V	Black								2 A
