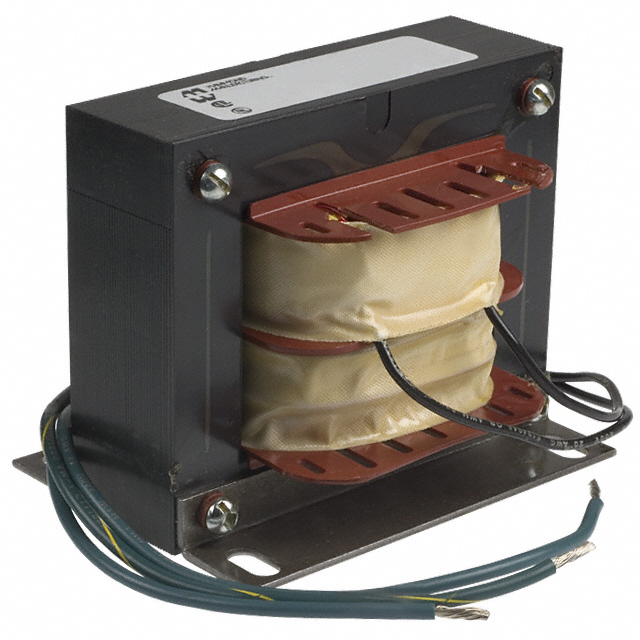

165 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
POWER TRANSFORMERS TRANSFORMER, LOW VOLTAGE, HIGH CURRENT, CHASSIS MOUNT, 360VA, 18.0VCT, 20A
| Part | Type | Height - Seated (Max) [Max] [z] | Center Tap | Voltage - Isolation | Voltage - Secondary (Full Load) | Mounting Type | Power - Max [Max] | Secondary Winding(s) | Current - Output (Max) [Max] | Voltage - Primary | Weight | Weight | Primary Winding(s) | Size / Dimension [y] | Size / Dimension [x] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | Laminated Core | 3.75 in | 2000 Vrms | 18 V | Chassis Mount | 360 VA | Single | 20 A | 115 V | 11 lbs | 5 kg | Single | 4 " | 4.5 in | Wire Leads | |
Hammond Manufacturing | Laminated Core | 79.5 mm | 2000 Vrms | 7.5 V | Chassis Mount | 157 VA | Single | 21 A | 115 V | 5.5 lbs | 2.5 kg | Single | 3.25 " | 295.25 mm | Wire Leads |
