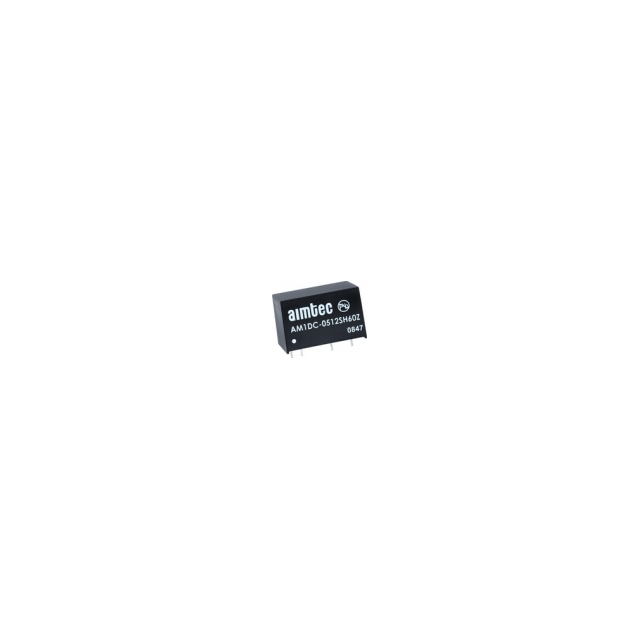

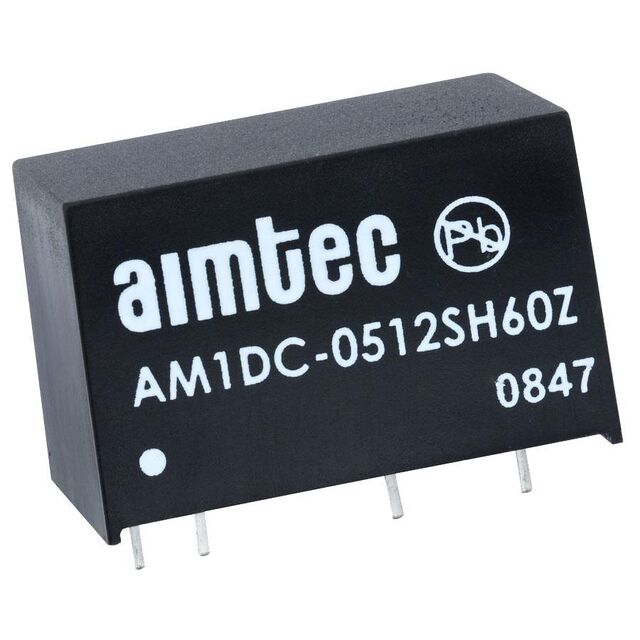

AM1DC Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Efficiency | Package / Case | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Voltage - Input (Max) [Max] | Type | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications | Voltage - Output 1 | Approval Agency | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 75 % | 7-SIP Module 4 Leads | 200 mA | 1 | 4.5 V | 85 °C | -40 C | 6000 VDC | 5.5 V | Isolated Module | Through Hole | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | ITE (Commercial) | 5 V | CE | 7-SIP |
 aimtec | 76 % | 7-SIP Module | 83.3 mA | 1 | 4.5 V | 85 °C | -40 C | 6000 VDC | 5.5 V | Isolated Module | Through Hole | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | ITE (Commercial) | 12 V | CE |
