MHB Series

Manufacturer: Nichicon

Catalog

FILM CAPACITORS RADIAL 30 X 45 X 42.5

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Lead Spacing	Lead Spacing	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Tolerance	Voltage Rating - DC	Dielectric Material	Termination	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
Nichicon MHBS355400KJSD	1.673 "	30 mm	42.5 mm	1.181 in	85 °C	-40 C	40 µF	37.5 mm	1.476 in	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads	1.772 "	45 mm	Through Hole	10 %	575 V	Polypropylene (PP) Metallized	PC Pins	3.4 mOhms
Nichicon MHBS455600KRSD	2.264 in	38 mm	57.5 mm	1.496 in	85 °C	-40 C	60 µF	52.5 mm	2.067 in	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads			Through Hole	10 %	800 V	Polypropylene (PP) Metallized	PC Pins	3 mOhm	57.5 mm	2.264 "

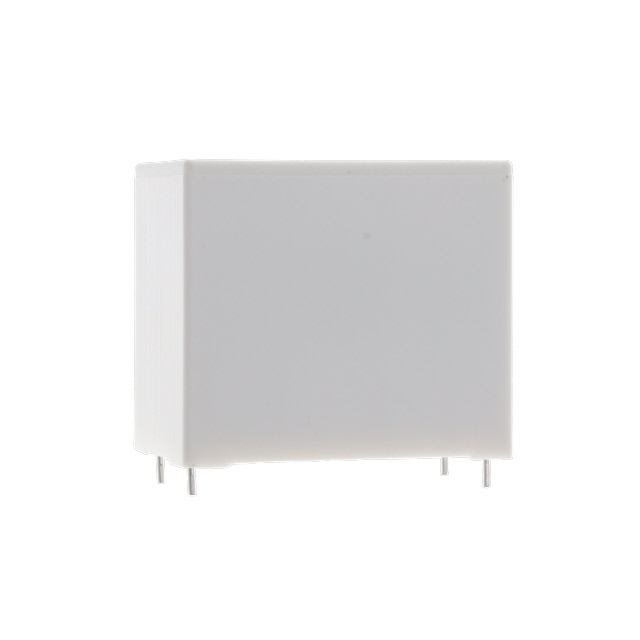

Nichicon MHBS355750KRSD		1.378 in	2.264 in		85 °C	-40 C	75 µF	52.5 mm	2.067 in	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads			Through Hole	10 %	575 V	Polypropylene (PP) Metallized	PC Pins	3.3 mOhms	50 mm	1.969 in	57.5 mm	35 mm
