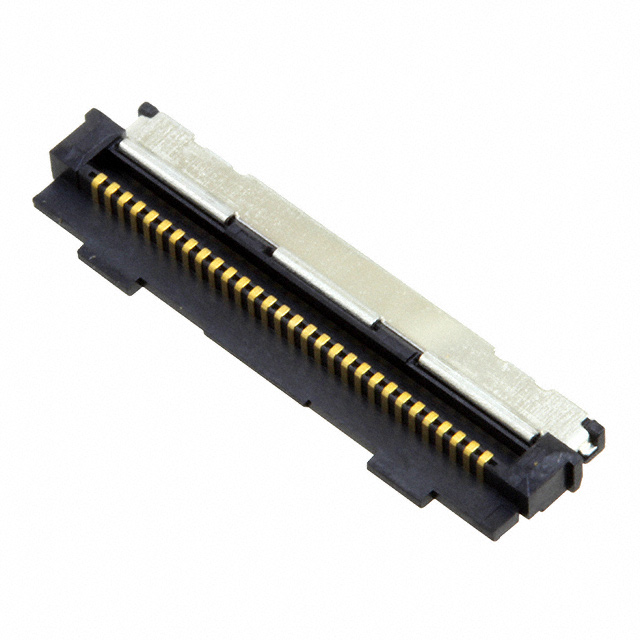

DF80 Series

Catalog

CONN PLUG 30POS SOLDER GOLD

Part	Wire Type	Mounting Type	Features	Number of Rows	Number of Positions	Contact Type	Color	Contact Finish	Cable Termination	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Pitch	Pitch	Fastening Type	For Use With/Related Products	Accessory Type	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Insulation Height	Insulation Height	Termination	Style	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd DF80-30P-0.5SD(52)	Discrete Ribbon Cable	Free Hanging (In-Line) Right Angle	Closed End	1	30	Outer Shroud Contact	Black	Gold	Solder	Plug	-1 AWG 36 AWG	32 AWG 40 AWG	0.02 "	0.5 mm	Latch Lock

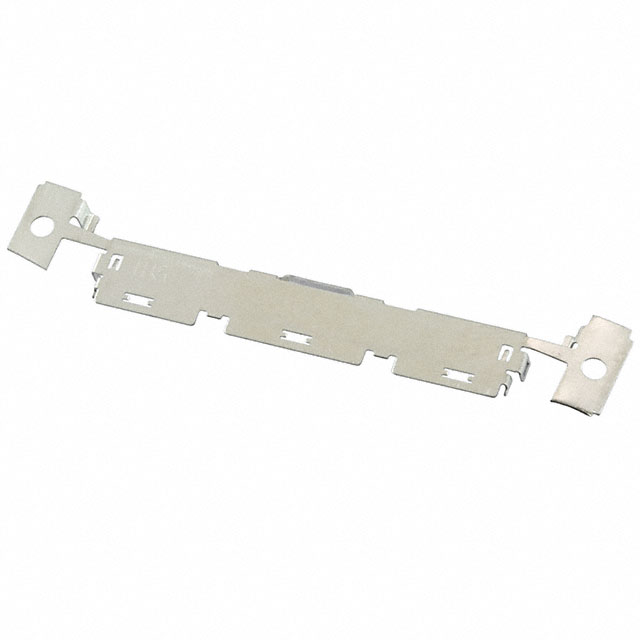

Hirose Electric Co Ltd DF80-50P-SHL(52)					50											DF80 Series	Shell

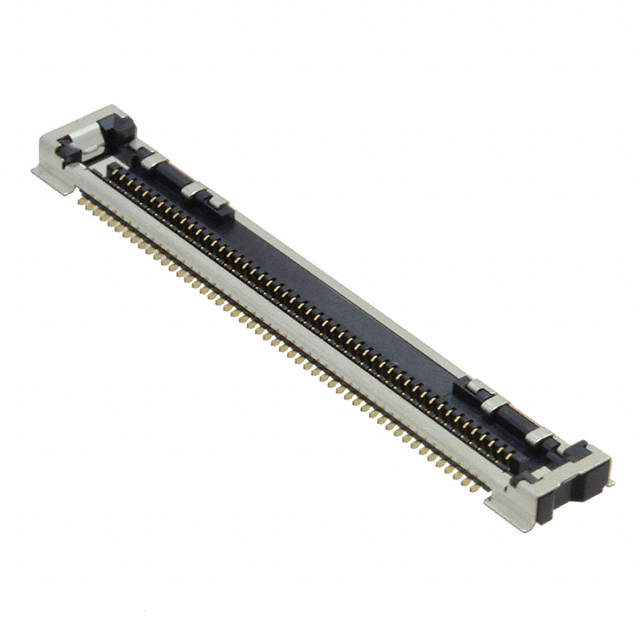

Hirose Electric Co Ltd DF80-50S-0.5V(51)		Surface Mount	Solder Retention	1	50	Center Strip Contact				Receptacle					Friction Lock			Halogen Free Liquid Crystal Polymer (LCP)	0.05 µm	1.97 µin	Phosphor Bronze	50 V	UL94 V-0	0.5 A	Gold	1.65 mm	0.065 in	Solder	Board to Cable/Wire	Gold	85 °C	-35 °C	All	0.05 Ám	1.97 Áin	Black	0.5 mm	0.02 in
Hirose Electric Co Ltd DF80-50P-SHL					50											DF80 Series	Shield
Hirose Electric Co Ltd DF80-40S-0.5V(51)		Surface Mount	Solder Retention	1	40	Center Strip Contact				Receptacle					Friction Lock			Halogen Free Liquid Crystal Polymer (LCP)	0.05 µm	1.97 µin	Phosphor Bronze	50 V	UL94 V-0	0.5 A	Gold	1.65 mm	0.065 in	Solder	Board to Cable/Wire	Gold	85 °C	-35 °C	All	0.05 Ám	1.97 Áin	Black	0.5 mm	0.02 in
Hirose Electric Co Ltd DF80D-40P-0.5SD(51)	Discrete Ribbon Cable	Free Hanging (In-Line)	Closed End	1	40	Outer Shroud Contact	Black	Gold	Solder	Plug	-1 AWG 36 AWG	32 AWG 40 AWG	0.02 "	0.5 mm	Latch Lock																								1.97 Áin	0.05 Ám

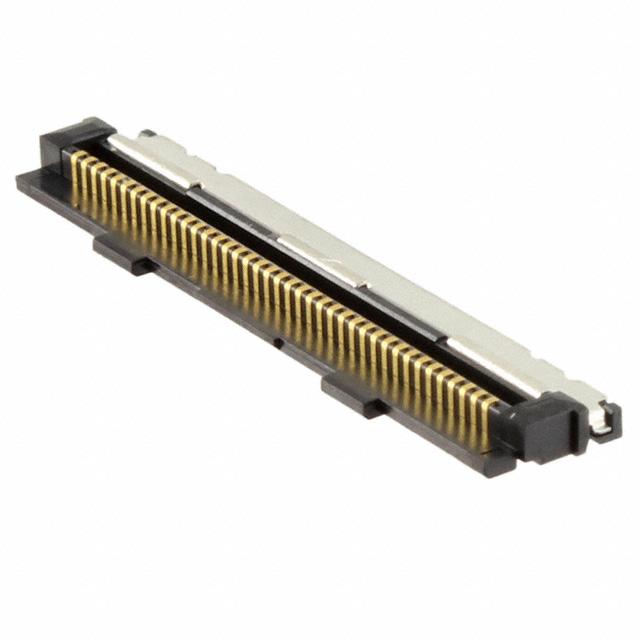

Hirose Electric Co Ltd DF80-40P-0.5SD(52)	Discrete Ribbon Cable	Free Hanging (In-Line) Right Angle	Closed End	1	40	Outer Shroud Contact	Black	Gold	Solder	Plug	-1 AWG 36 AWG	32 AWG 40 AWG	0.02 "	0.5 mm	Latch Lock

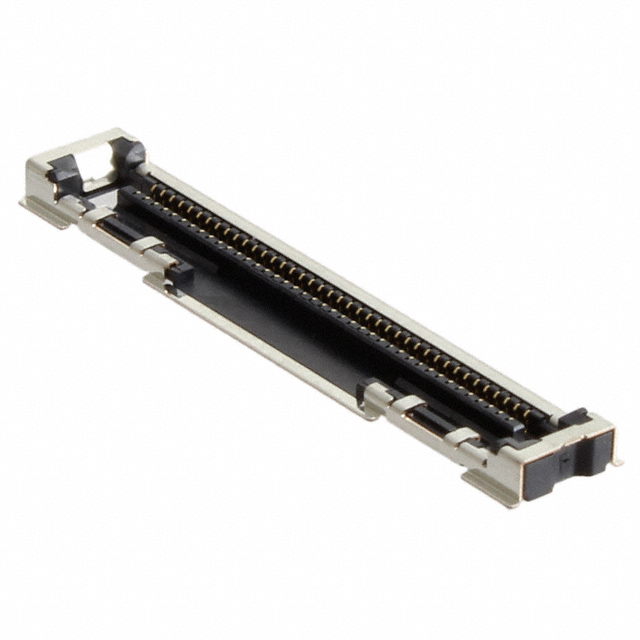

Hirose Electric Co Ltd DF80-40S-0.5V(52)		Surface Mount	Solder Retention	1	40	Center Strip Contact				Receptacle					Friction Lock			Halogen Free Liquid Crystal Polymer (LCP)	0.05 µm	1.97 µin	Phosphor Bronze	50 V	UL94 V-0	0.5 A	Gold	1.65 mm	0.065 in	Solder	Board to Cable/Wire	Gold	85 °C	-35 °C	All	0.05 Ám	1.97 Áin	Black	0.5 mm	0.02 in
