DF13 Series

Catalog

CONN HEADER VERT 15POS 1.25MM

...

Part	Mated Stacking Heights	Mounting Type	Connector Type	Contact Shape	Contact Finish - Post	Shrouding	Number of Rows	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Insulation Color	Number of Positions Loaded	Style	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Voltage Rating	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Pin or Socket	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post

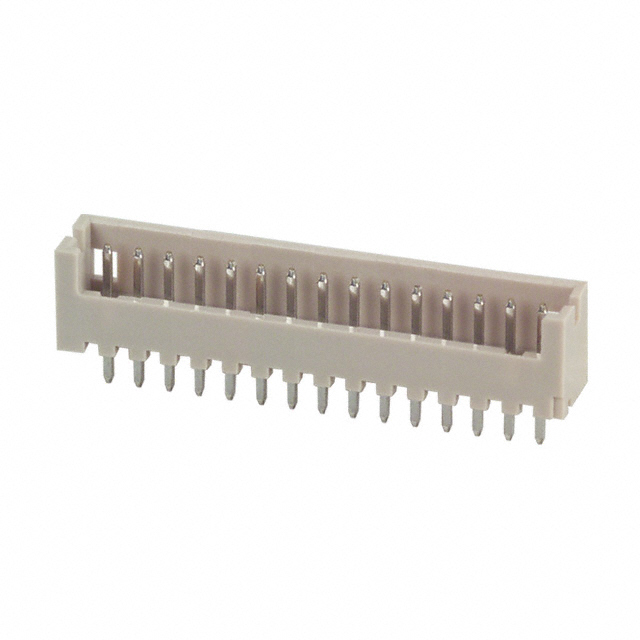

Hirose Electric Co Ltd DF13-15P-1.25DSA	5.3 mm	Through Hole	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0	39.4 µin	1 µm	Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm	15	85 °C	-35 °C
Hirose Electric Co Ltd DF13-2630SCFA(44)																													26 AWG	30 AWG	Crimp	Socket
Hirose Electric Co Ltd DF13-3P-1.25DSA(50)	5.3 mm	Through Hole	Header	Square		Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm		85 °C	-35 °C					Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF13-14P-1.25DSA(25)		Through Hole	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm	14	85 °C	-35 °C								1 A
Hirose Electric Co Ltd DF13-9P-1.25H(21)		Right Angle Surface Mount	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	3.6 mm	0.142 in	150 VDC	Nylon Polyamide (PA)	Brass			9	85 °C	-35 °C									Board Guide Solder Retention

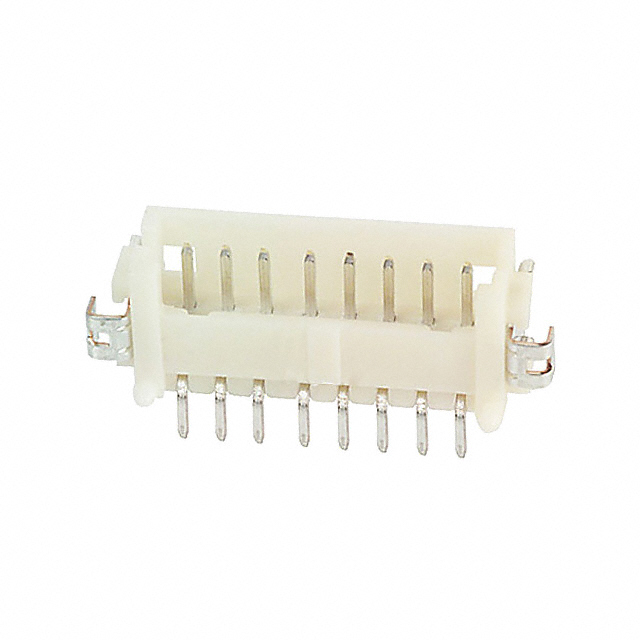

Hirose Electric Co Ltd DF13-8P-1.25H(21)		Right Angle Surface Mount	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	3.6 mm	0.142 in	150 VDC	Nylon Polyamide (PA)	Brass			8	85 °C	-35 °C									Board Guide Solder Retention
Hirose Electric Co Ltd DF13-9P-1.25H(51)		Right Angle Surface Mount	Header	Square		Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	3.6 mm	0.142 in	150 VDC	Nylon Polyamide (PA)	Brass			9	85 °C	-35 °C					Gold	8 µin	0.203 µm		Board Guide Solder Retention

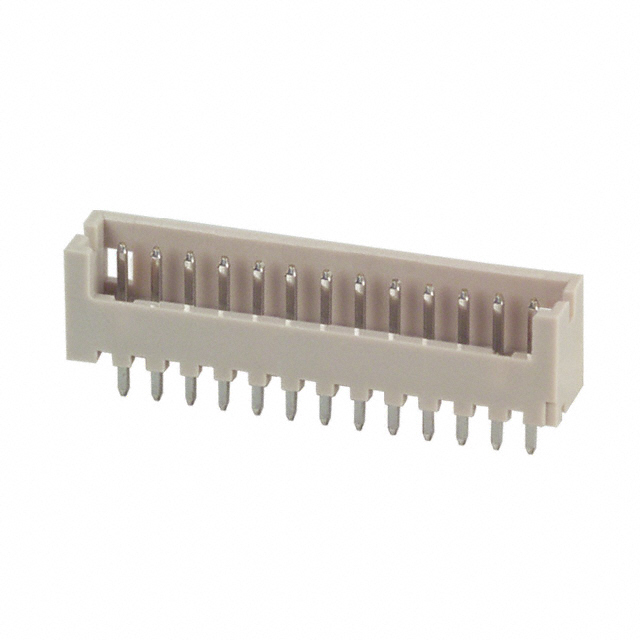

Hirose Electric Co Ltd DF13-13P-1.25DSA(20)	5.3 mm	Through Hole	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0	39.4 µin	1 µm	Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm	13	85 °C	-35 °C

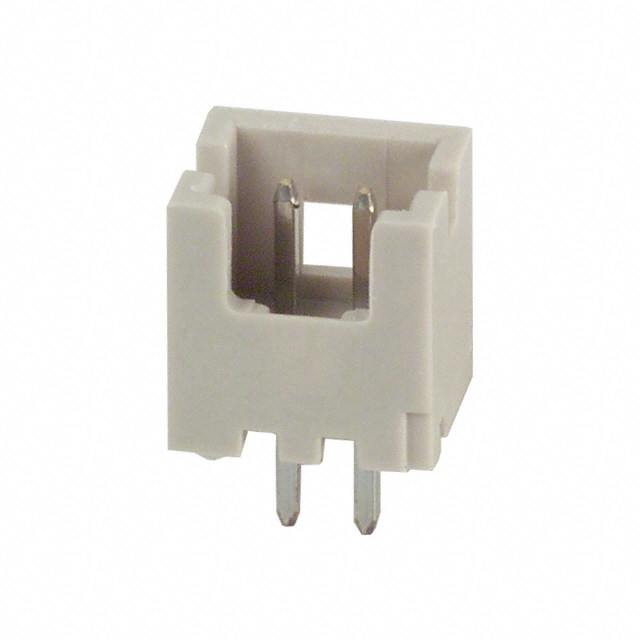

Hirose Electric Co Ltd DF13-2P-1.25DSA(50)	5.3 mm	Through Hole	Header	Square		Shrouded - 4 Wall	1	Male Pin	UL94 V-0			Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm	2	85 °C	-35 °C					Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF13-8P-1.25DSA(75)		Through Hole	Header	Square	Tin	Shrouded - 4 Wall	1	Male Pin	UL94 V-0	39.4 µin	1 µm	Detent Lock	Beige	All	Board to Cable/Wire	Solder	0.049 in	1.25 mm	4.3 mm	0.169 "	150 VDC	Nylon Polyamide (PA)	Brass	0.091 "	2.3 mm	8	85 °C	-35 °C										39.4 çin	1 çm
