901-19 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

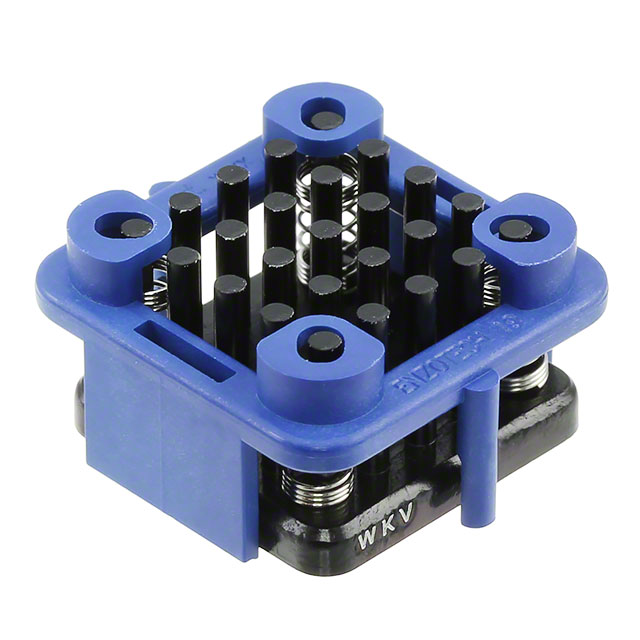

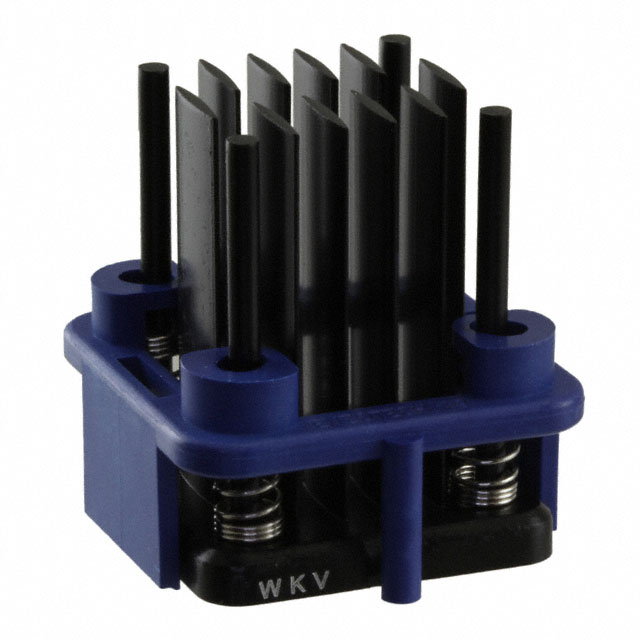

HEATSINK 19X19X23MM PIN

Part	Type	Fin Height [custom]	Fin Height [custom]	Shape	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Attachment Method	Width [x]	Width [x]	Length	Length [x]	Package Cooled	Material	Material Finish	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]
Wakefield Thermal Solutions 901-19-2-23-2-B-0	Top Mount	0.892 in	22.65 mm	Pin Fins Square	10.6 °C/W	5.4 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized
Wakefield Thermal Solutions 901-19-2-21-2-B-0	Top Mount			Pin Fins Square	10.7 °C/W	5.66 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized	0.811 in	20.6 mm
Wakefield Thermal Solutions 901-19-1-28-2-B-0	Top Mount			Pin Fins Square	10.3 °C/W	4.91 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized			27.6 mm	1.087 in
Wakefield Thermal Solutions 901-19-2-23-2-B-0	Top Mount	0.892 in	22.65 mm	Pin Fins Square	10.6 °C/W	5.4 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized
Wakefield Thermal Solutions 901-19-1-15-2-B-0	Top Mount	0.575 in		Pin Fins Square	12.1 °C/W	6.3 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized		14.6 mm
Wakefield Thermal Solutions 901-19-1-23-2-B-0	Top Mount	0.892 in	22.65 mm	Pin Fins Square	12 °C/W	4.9 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized
Wakefield Thermal Solutions 901-19-2-12-2-B-0	Top Mount	0.457 in	11.6 mm	Pin Fins Square	12.7 °C/W	6.6 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized
Wakefield Thermal Solutions 901-19-2-21-2-B-0	Top Mount			Pin Fins Square	10.7 °C/W	5.66 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized	0.811 in	20.6 mm
Wakefield Thermal Solutions 901-19-1-28-2-B-0	Top Mount			Pin Fins Square	10.3 °C/W	4.91 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized			27.6 mm	1.087 in
Wakefield Thermal Solutions 901-19-2-12-2-B-0	Top Mount	0.457 in	11.6 mm	Pin Fins Square	12.7 °C/W	6.6 °C/W	Push Pin	19 mm	0.748 in	19 mm	0.748 in	BGA	Aluminum	Black Anodized
