A3C-14DA Series

Catalog

CONN RCPT 14POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Applications	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Insulation Height	Insulation Height	Style	Insulation Color	Material Flammability Rating	Contact Type	Mounting Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Voltage Rating	Contact Length - Post
Hirose Electric Co Ltd A3C-14DA-2DSC	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	5.1 mm 6 mm	0.165 in	4.2 mm	Board to Board Cable	Black	UL94 V-0	Female Socket	Through Hole	14	2 mm	0.079 in	2 mm	0.079 in	8 µin	0.203 µm	Tin	Solder	2	0.079 "	2 mm	Push-Pull	-55 C	85 °C	All	Gold	Receptacle	200 VAC

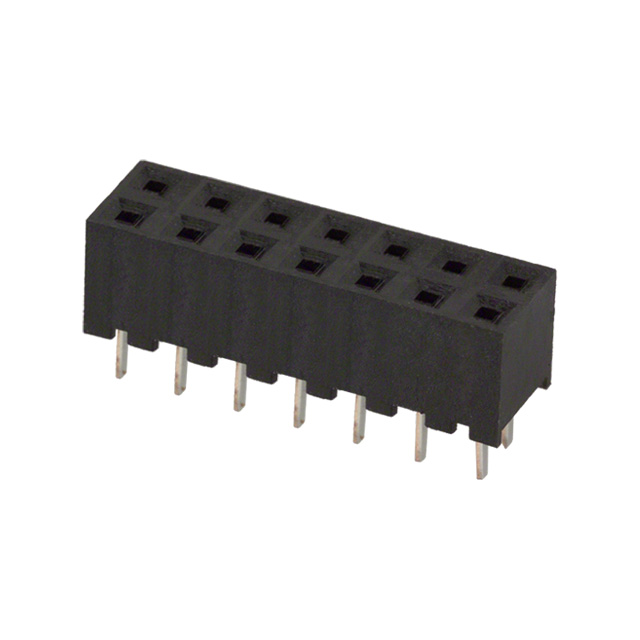

Hirose Electric Co Ltd A3C-14DA-2DSC(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	5.1 mm 6 mm	0.165 in	4.2 mm	Board to Board Cable	Black	UL94 V-0	Female Socket	Through Hole	14	2 mm	0.079 in	2 mm	0.079 in	8 µin	0.203 µm	Tin	Solder	2	0.079 "	2 mm	Push-Pull	-55 C	85 °C	All	Gold	Receptacle	200 VAC
Hirose Electric Co Ltd A3C-14DA-2DSA	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	5.1 mm 6 mm	0.165 in	4.2 mm	Board to Board Cable	Black	UL94 V-0	Female Socket	Through Hole	14	2 mm	0.079 in		3 mm	8 µin	0.203 µm	Tin	Solder	2	0.079 "	2 mm	Push-Pull	-55 C	85 °C	All	Gold	Receptacle	200 VAC	0.118 in

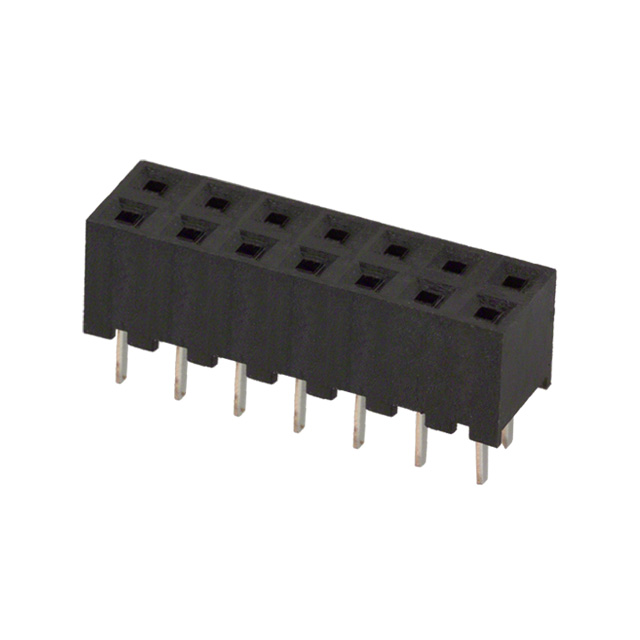

Hirose Electric Co Ltd A3C-14DA-2DSA(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	5.1 mm 6 mm	0.165 in	4.2 mm	Board to Board Cable	Black	UL94 V-0	Female Socket	Through Hole	14	2 mm	0.079 in		3 mm	8 µin	0.203 µm	Tin	Solder	2	0.079 "	2 mm	Push-Pull	-55 C	85 °C	All	Gold	Receptacle	200 VAC	0.118 in
