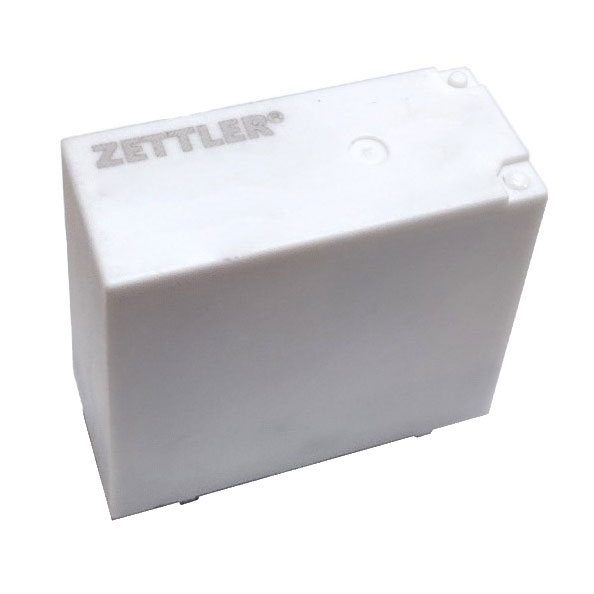

AZ7335W Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 10A 6V
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Switching Voltage [Max] | Release Time | Load - Max Switching | Must Operate Voltage | Coil Type | Coil Insulation | Contact Material | Contact Form | Coil Current | Relay Type | Termination Style | Contact Rating (Current) | Seal Rating | Must Release Voltage | Mounting Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 45 Ohms | 85 °C | -40 C | 10 ms | 30 VDC 277 VAC | 10 ms | 360 W 3000 VA | 4.5 VDC | Non Latching | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPST-NO (2 Form A) | 133.3 mA | General Purpose | PC Pin | 10 A | Sealed - Fully | 0.3 VDC | Through Hole | |
American Zettler | 17.9 Ohms | 85 °C | -40 C | 10 ms | 30 VDC 277 VAC | 10 ms | 360 W 3000 VA | 3.75 VDC | Non Latching | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | 279.3 mA | General Purpose | PC Pin | 10 A | Sealed - Fully | 0.25 VDC | Through Hole | 5 VDC |
