HMUA Series

Catalog

CAP FOR HMUA CONNECTORS

Part	Accessory Type	For Use With/Related Products	Fiber Cladding Diameter [diameter]	Fiber Core Diameter [diameter]	Fiber Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Diameter [diameter]	Features	Boot Color	Mounting Type	Simplex/Duplex	Material Flammability Rating	Connector Type	Type	Convert To (Adapter End)	Convert From (Adapter End)	Ferrule Material	Housing Material	Color	Material	Specifications [x]	Specifications [x]	Specifications
Hirose Electric Co Ltd HMUA-C1(20)	Cap	HMUA Connectors

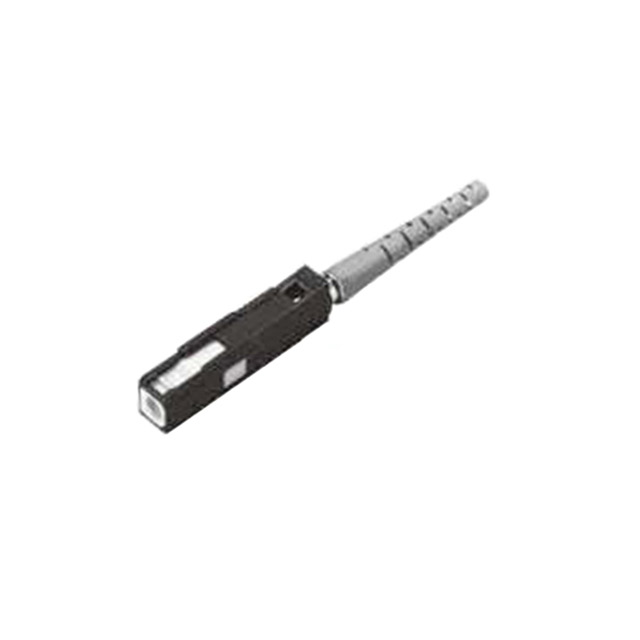

Hirose Electric Co Ltd HMUA-P2-H2(60)		HMUA-F3 Ferrules	125 µm	50 µm	9.5 µm	-25 °C	70 °C	2 mm	Strain Relief	Purple	Free Hanging (In-Line)	Simplex	UL94 V-0	Plug
Hirose Electric Co Ltd HMUA-AS-3						-25 °C	70 °C				Flange (2 Hole) Panel Mount	Simplex	UL94 V-0		Coupler	MU Receptacle	MU Receptacle	Zirconia	Synthetic Resin

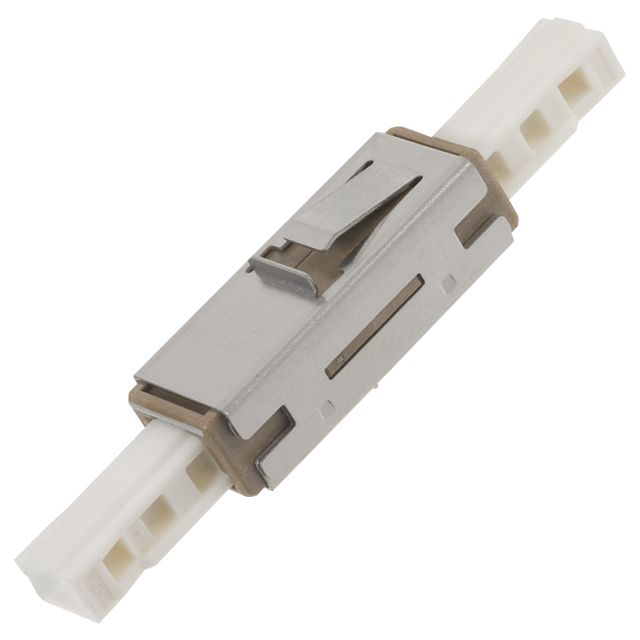

Hirose Electric Co Ltd HMUA-A-3						-25 °C	70 °C				Panel Mount Snap-In	Simplex	UL94 V-0		Coupler	MU Receptacle	MU Receptacle	Zirconia	Synthetic Resin	Silver

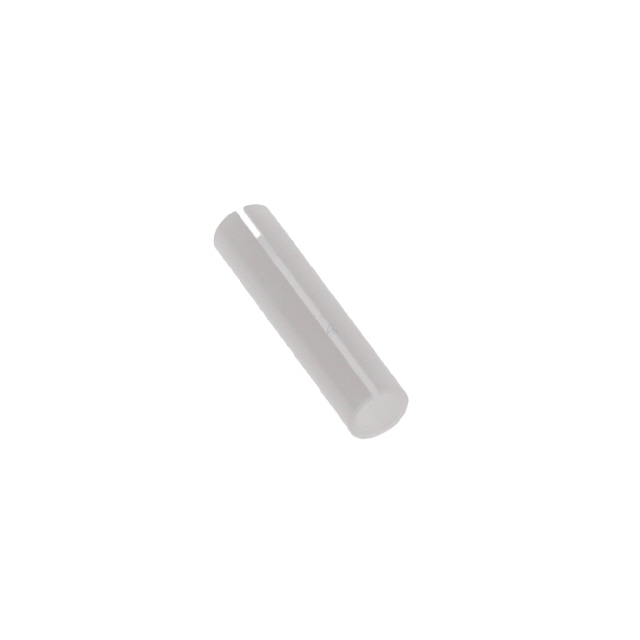

Hirose Electric Co Ltd HMUA-D	Split Sleeve	HMUA Connectors				-25 °C	70 °C						UL94 V-0							White	Zirconia	6.8 mm	0.27 in

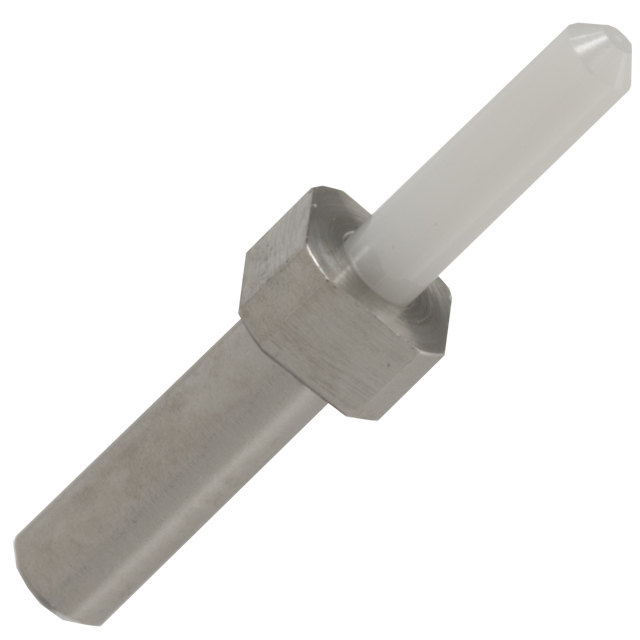

Hirose Electric Co Ltd HMUA-F3-A1255(10)	Ferrule	MU Plugs				-25 °C	70 °C						UL94 V-0							Silver				Multimode Singlemode
Hirose Electric Co Ltd HMUA-F3-A125(10)	Ferrule	MU Plugs				-25 °C	70 °C						UL94 V-0							Silver				Multimode Singlemode

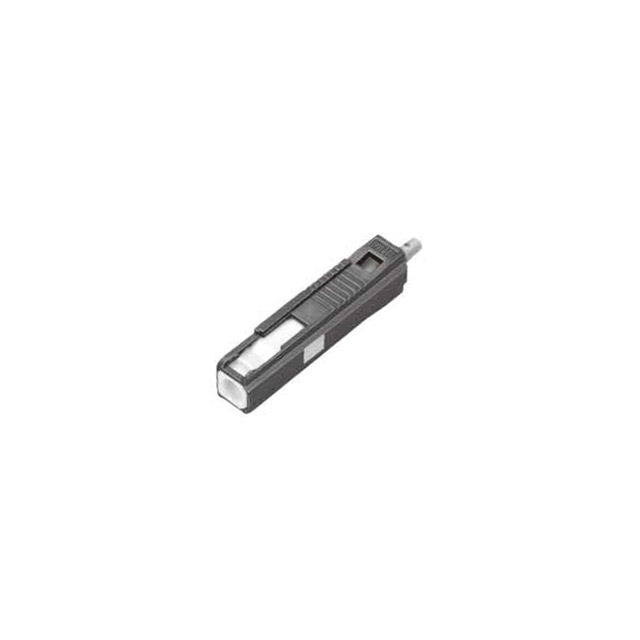

Hirose Electric Co Ltd HMUA-P0.9-H1(60)		HMUA-F3 Ferrules	125 µm	50 µm	9.5 µm	-25 °C	70 °C	0.9 mm	Strain Relief	Blue	Free Hanging (In-Line)	Simplex	UL94 V-0	Plug

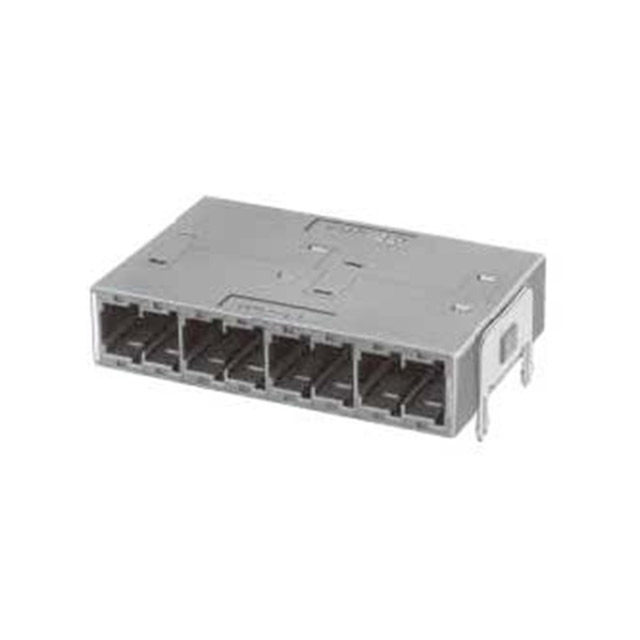

Hirose Electric Co Ltd HMUA-8AH-3(40)						-25 °C	70 °C				Board Mount	8-Plex	UL94 V-0		Coupler	MU Receptacle	MU Receptacle	Zirconia	Synthetic Resin
Hirose Electric Co Ltd HMUA-P0.9-H2(60)		HMUA-F3 Ferrules	125 µm	50 µm	9.5 µm	-25 °C	70 °C	0.9 mm	Strain Relief	Purple	Free Hanging (In-Line)	Simplex	UL94 V-0	Plug
