BM24 Series

Catalog

CONN SOCKET 10POS SMD GOLD

Part	Mated Stacking Heights	Mounting Type	Connector Type	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Features	Number of Rows [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd BM24-10DS/2-0.35V(51)	0.8 mm	Surface Mount	Socket Center Strip Contacts	Gold	2	10	0.014 in	0.35 mm	0.8 mm	0.031 in	Solder Retention	2
Hirose Electric Co Ltd BM24-30DS/2-0.35V(53)	0.8 mm	Surface Mount	Socket Center Strip Contacts	Gold	2		0.014 in	0.35 mm	0.8 mm	0.031 in	Solder Retention	2	30
Hirose Electric Co Ltd BM24-24DS/2-0.35V(51)	0.8 mm	Surface Mount	Socket Center Strip Contacts	Gold			0.014 in	0.35 mm	0.8 mm	0.031 in	Solder Retention	2
Hirose Electric Co Ltd BM24-10DP/2-0.35V(51)	0.8 mm	Surface Mount	Header Outer Shroud Contacts	Gold	2	10	0.014 in	0.35 mm	0.65 mm	0.026 "	Solder Retention	2
Hirose Electric Co Ltd BM24-24DP/2-0.35V(51)	0.8 mm	Surface Mount	Header Outer Shroud Contacts	Gold			0.014 in	0.35 mm	0.65 mm	0.026 "	Solder Retention	2

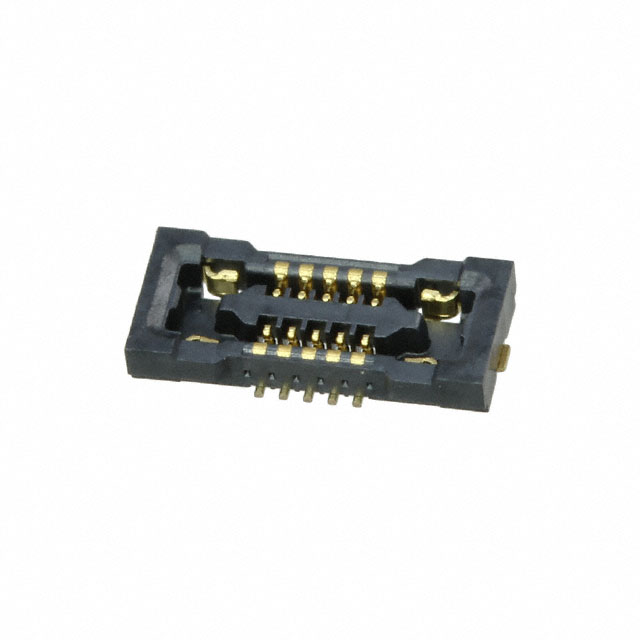

Hirose Electric Co Ltd BM24-10DS/2-0.35V(53)	0.8 mm	Surface Mount	Socket Center Strip Contacts	Gold	2	10	0.014 in	0.35 mm	0.8 mm	0.031 in	Solder Retention	2
Hirose Electric Co Ltd BM24-50DP/2-0.35V(51)	0.8 mm	Surface Mount	Header Outer Shroud Contacts	Gold	2	50	0.014 in	0.35 mm	0.65 mm	0.026 "	Solder Retention	2		1.97 Áin	0.05 Ám

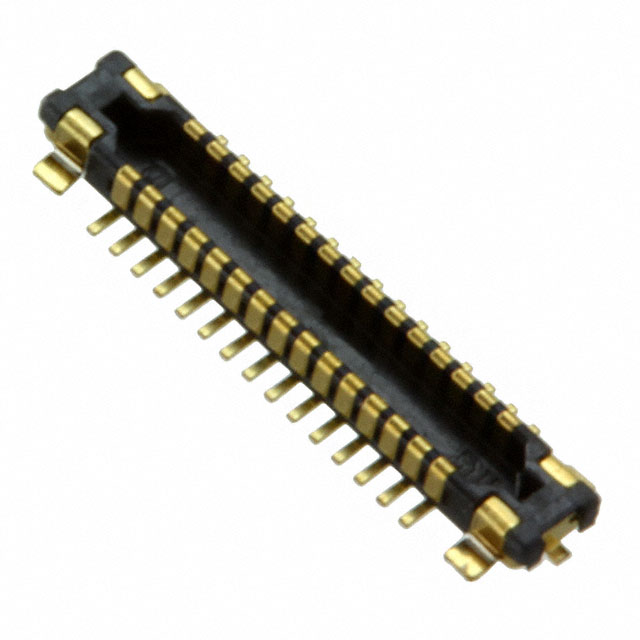

Hirose Electric Co Ltd BM24-30DP/2-0.35V(53)	0.8 mm	Surface Mount	Header Outer Shroud Contacts	Gold	2		0.014 in	0.35 mm	0.65 mm	0.026 "	Solder Retention	2	30
Hirose Electric Co Ltd BM24-50DS/2-0.35V(51)		Surface Mount	Socket Center Strip Contacts	Gold	2	50	0.014 in	0.35 mm	0.8 mm	0.031 in	Solder Retention	2		1.97 Áin	0.05 Ám
Hirose Electric Co Ltd BM24-50DP/2-0.35V(53)	0.8 mm	Surface Mount	Header Outer Shroud Contacts	Gold	2	50	0.014 in	0.35 mm	0.65 mm	0.026 "	Solder Retention	2		1.97 Áin	0.05 Ám
