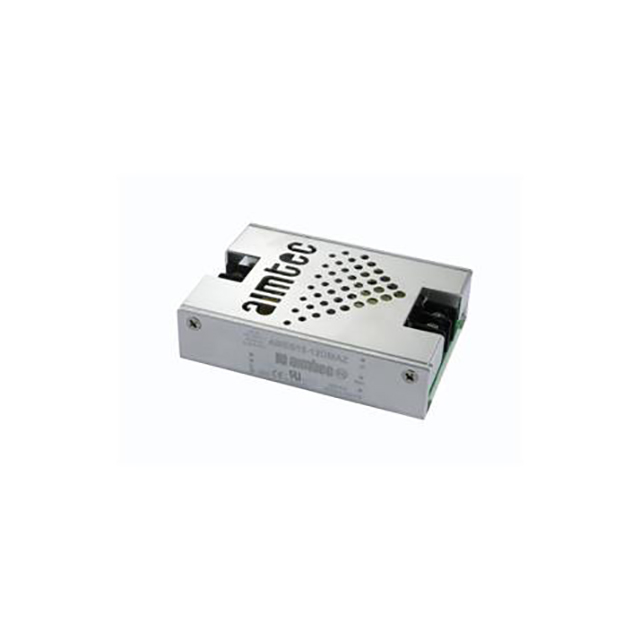

AMES15 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER +/-15V 15W
| Part | Voltage - Output 1 | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 2 | Voltage - Isolation | Features | Applications | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Output 2 | Mounting Type | Type | Approval Agency | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 15 V | 500 mA | 80 ¯C | -40 °C | 500 mA | 4000 V | Universal Input | ITE (Commercial) Medical | 2 | 0.94 in 23.9 mm | 3.62 in 91.9 mm | 2.56 in 65 mm | 15 W | -15 V | Chassis Mount | Enclosed | CB CE cURus | 60601-1 60950-1 | 90 VAC 130 VDC | 264 VAC 370 VDC | 83 % |
aimtec | 5 V | 3 A | 80 ¯C | -40 °C | 4000 V | Universal Input | ITE (Commercial) Medical | 1 | 0.94 in 23.9 mm | 3.62 in 91.9 mm | 2.56 in 65 mm | 15 W | Chassis Mount | Enclosed | CB CE cURus | 60601-1 60950-1 | 90 VAC 130 VDC | 264 VAC 370 VDC | 76 % |
