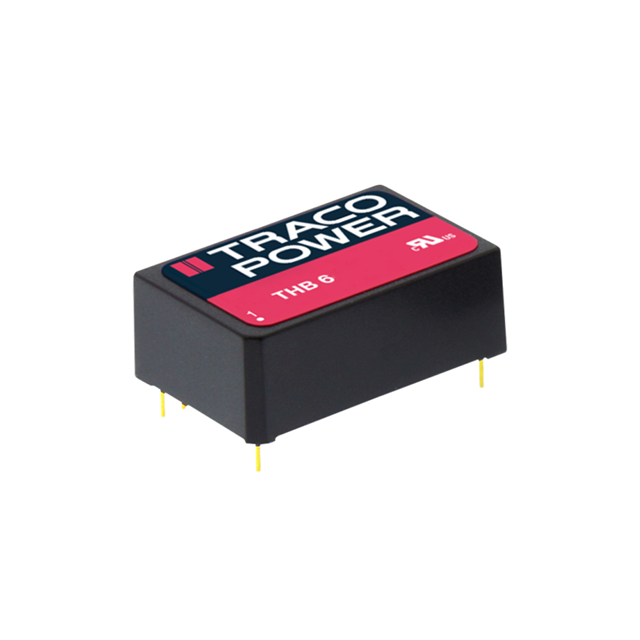

THB 6 Series

Catalog

DC DC CONVERTER +/-15V 6W

Part	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 2	Package / Case	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Applications	Mounting Type	Power (Watts)	Type	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THB 6-4823	SCP	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	-15 V	24-DIP Module 6 Leads	15 V	-40 °C	71 °C	3000 V	2	75 V	80 %	ITE (Commercial) Medical	Through Hole	6 W	Isolated Module
Traco Power THB 6-4822	SCP	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	-12 V	24-DIP Module 6 Leads	12 V	-40 °C	71 °C	3000 V	2	75 V	80 %	ITE (Commercial) Medical	Through Hole	6 W	Isolated Module	250 mA
Traco Power THB 6-1212	SCP	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	9 V		24-DIP Module 6 Leads	12 V	-40 °C	71 °C	3000 V	1	18 V	78 %	ITE (Commercial) Medical	Through Hole	6 W	Isolated Module		500 mA
Traco Power THB 6-1222	SCP	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	9 V	-12 V	24-DIP Module 6 Leads	12 V	-40 °C	71 °C	3000 V	2	18 V	78 %	ITE (Commercial) Medical	Through Hole	6 W	Isolated Module	250 mA
