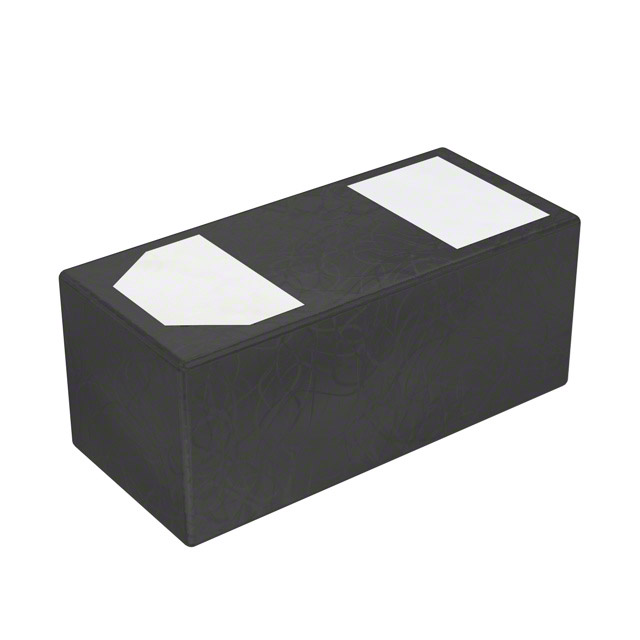

ESDAULC6-1U2 Series

Single-line unidirectional ESD protection for high speed interface

Catalog

Single-line unidirectional ESD protection for high speed interface

Part	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Power Line Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Package / Case	Unidirectional Channels [custom]	Type	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]
STMicroelectronics ESDAULC6-1U2	3 V	18 W		Surface Mount	-40 °C	150 °C	General Purpose	0603 Metric	0201	1	Zener	1.4 A	0201	6 V	13 V

Catalog

Single-line unidirectional ESD protection for high speed interface

Description

The ESDAULC6-1U2 is a unidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required.
