BG1203 Series

Catalog

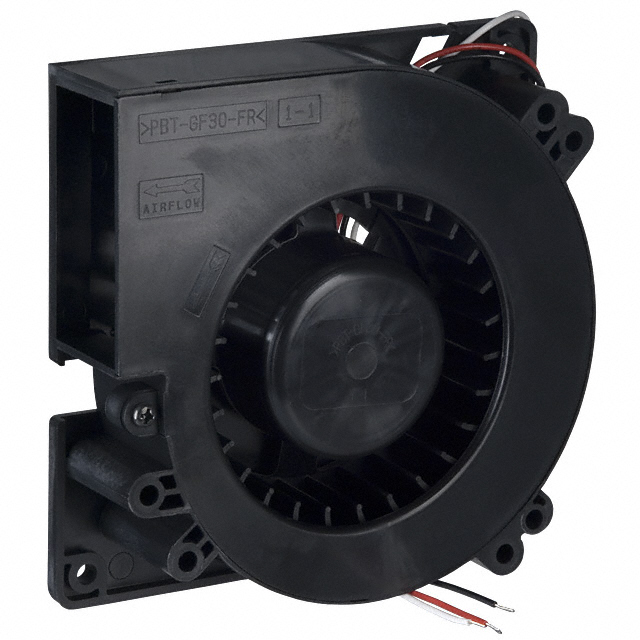

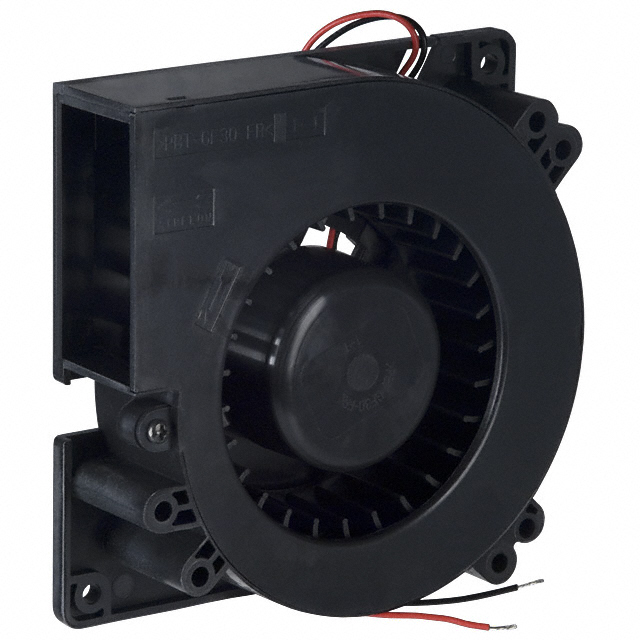

FAN BLOWER 120X32MM 12VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Weight	Weight	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Voltage - Rated	Fan Type	Bearing Type	Features	Width [y]	Noise	Power (Watts)	RPM	Operating Temperature [Min]	Operating Temperature [Max]
NMB TECHNOLOGIES BG1203-B045-00S-00	Plastic	100000 Hrs	930 mA	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	33.2 CFM	0.93 mł/min	3 Wire Leads	1.044 in H2O	260 Pa	12 VDC	Blower	Ball	Speed Sensor (Tach)	32 mm	54 dB	11.2 W	2650 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B055-00L-00	Plastic	100000 Hrs	480 mA	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	33.2 CFM	0.93 mł/min	3 Wire Leads	1.044 in H2O	260 Pa	24 VDC	Blower	Ball	Locked Rotor Sensor	32 mm	55 dB(A)	11.5 W	2650 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B044-000-00	Plastic	100000 Hrs	650 mA	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	28.2 CFM	0.79 mł/min	2 Wire Leads	0.702 in H2O	175 Pa	12 VDC	Blower	Ball		32 mm	48.5 dB(A)	7.8 W	2250 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B054-000-00	Plastic	100000 Hrs	0.3 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	28.2 CFM	0.79 mł/min	2 Wire Leads	0.7 in H2O	174.4 Pa	24 VDC	Blower	Ball		32 mm	52 dB	7.2 W	2250 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B053-00L-00	Plastic	100000 Hrs	0.25 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	26.1 CFM	0.731 m³/min	3 Wire Leads	0.582 in H2O	145 Pa	24 VDC	Blower	Ball	Locked Rotor Sensor	32 mm		6 W	2100 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B043-00S-00	Plastic	100000 Hrs	480 mA	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	26.1 CFM	0.731 m³/min	3 Wire Leads	0.582 in H2O	145 Pa	12 VDC	Blower	Ball	Speed Sensor (Tach)	32 mm	46.5 dB	5.78 W	2100 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B042-00L-00	Plastic	100000 Hrs	0.3 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	22.2 CFM	0.622 m³/min	3 Wire Leads	0.401 in H2O	100 Pa	12 VDC	Blower	Ball	Locked Rotor Sensor	32 mm	41.5 dB	3.6 W	1800 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B042-00S-00	Plastic	100000 Hrs	0.3 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	22.2 CFM	0.622 m³/min	3 Wire Leads	0.401 in H2O	100 Pa	12 VDC	Blower	Ball	Speed Sensor (Tach)	32 mm	41.5 dB	3.6 W	1800 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B052-000-00	Plastic	100000 Hrs	0.17 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	22.2 CFM	0.622 m³/min	2 Wire Leads	0.401 in H2O	100 Pa	24 VDC	Blower	Ball		32 mm	46 dB(A)		1800 RPM	-10 °C	60 °C
NMB TECHNOLOGIES BG1203-B054-00L-00	Plastic	100000 Hrs	0.3 A	Plastic	13.8 VDC	6 VDC	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	269.89 g	0.595 lb	28.2 CFM	0.79 mł/min	3 Wire Leads	0.7 in H2O	174.4 Pa	24 VDC	Blower	Ball	Locked Rotor Sensor	32 mm	52 dB	7.2 W	2250 RPM	-10 °C	60 °C
