UM-QP-1.5 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN UMC PLUG STR 50OHM SOLDER
| Part | Mating Cycles | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Body Finish | Cable Group | Shield Termination | Mounting Type | Contact Termination | Connector Type | Impedance | Number of Ports | Connector Style | Fastening Type | Housing Color | Center Contact Material | Frequency - Max [Max] | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

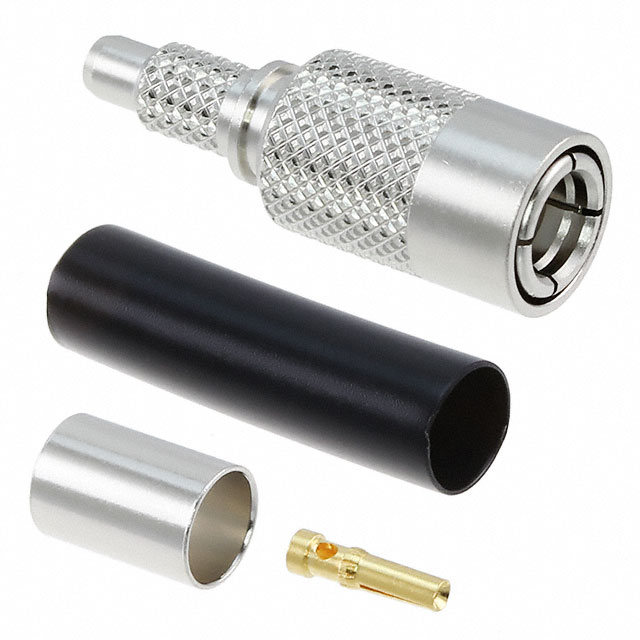

 Hirose Electric Co Ltd | 500 | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 1.5D-2V | Crimp | Free Hanging (In-Line) | Solder | Female Socket Plug | 50 Ohms | 1 | U.FL (UMCC) | Snap-On | Silver | Beryllium Copper | 3 GHz | |
 Hirose Electric Co Ltd | ||||||||||||||||||||

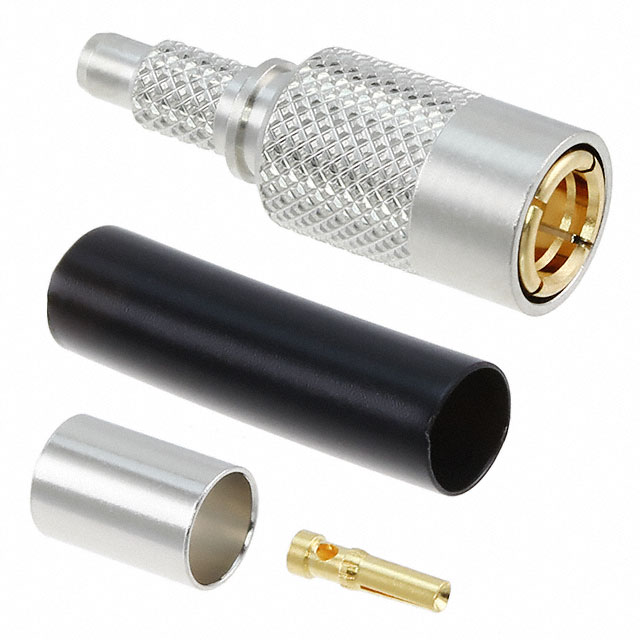

 Hirose Electric Co Ltd | 500 | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1.5D-2V 1.5D-HQEV 1.5D-QEV | Crimp | Free Hanging (In-Line) | Solder | Female Socket Plug | 50 Ohms | 1 | U.FL (UMCC) | Snap-On | Gold | Beryllium Copper | 3 GHz | 1 Connector 1 Heat Shrink |
Hirose Electric Co Ltd | 500 | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 1.5D-2W | Crimp | Free Hanging (In-Line) | Solder | Female Socket Plug | 50 Ohms | 1 | U.FL (UMCC) | Snap-On | Silver | Beryllium Copper | 3 GHz | |
 Hirose Electric Co Ltd | 500 | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 1.5D-2V 1.5D-HQEV 1.5D-QEV | Crimp | Free Hanging (In-Line) | Solder | Female Socket Plug | 50 Ohms | 1 | U.FL (UMCC) | Snap-On | Silver | Beryllium Copper | 3 GHz | 1 Connector 1 Heat Shrink |
