TXS0108E-Q1 Series

Automotive eight-bit bidirectional voltage level shifter for open-drain and push-pull applications

Catalog

Automotive eight-bit bidirectional voltage level shifter for open-drain and push-pull applications

Part	Channel Type	Channels per Circuit	Data Rate	Number of Circuits	Package / Case [y]	Package / Case	Package / Case [x]	Supplier Device Package	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Features	Translator Type	Mounting Type	Output Type	Qualification	Grade
Texas Instruments TXS0108EPWRG4	Bidirectional	8	60 Mbps	1	4.4 mm	20-TSSOP	0.173 in	20-TSSOP	3.6 V	1.4 V	85 °C	-40 °C	1.65 V	5.5 V	Auto-Direction Sensing	Voltage Level	Surface Mount	Open Collector Push-Pull
Texas Instruments TXS0108EQPWRQ1	Bidirectional	8	110 MBd	1	4.4 mm	20-TSSOP	0.173 in	20-TSSOP	3.6 V	1.4 V	125 °C	-40 °C	1.65 V	5.5 V	Auto-Direction Sensing	Voltage Level	Surface Mount	Open Drain Push-Pull	AEC-Q100	Automotive
Texas Instruments TXS0108EPWR	Bidirectional	8	60 Mbps	1	4.4 mm	20-TSSOP	0.173 in	20-TSSOP	3.6 V	1.4 V	85 C	-40 °C	1.65 V	5.5 V	Auto-Direction Sensing	Voltage Level	Surface Mount	Open Drain Push-Pull

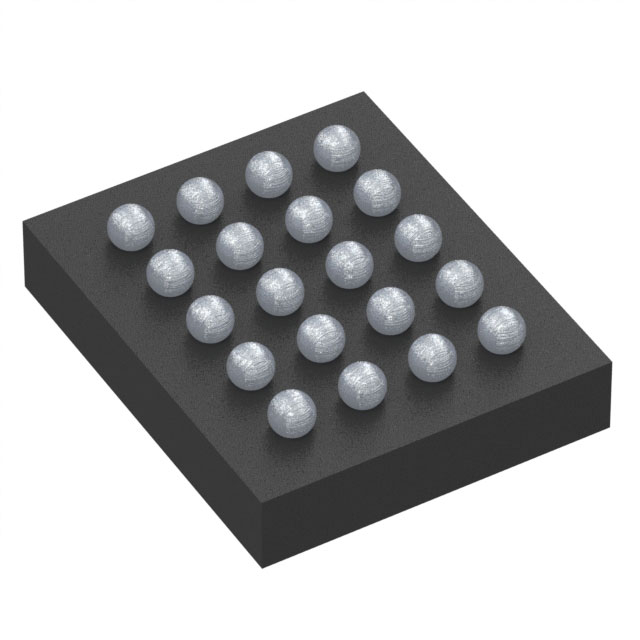

Texas Instruments TXS0108ENMER	Bidirectional	8	110 MBd	1		20-WFBGA		20-NFBGA (2.5x3)	3.6 V	1.4 V	85 °C	-40 °C	1.65 V	5.5 V		Voltage Level	Surface Mount	Open Drain Push-Pull

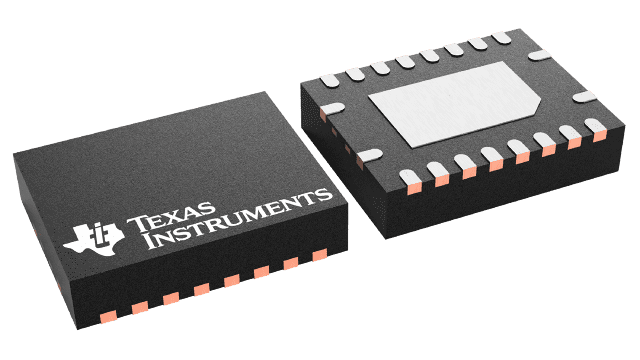

Texas Instruments TXS0108ERGYR	Bidirectional	8	60 Mbps	1		20-VFQFN Exposed Pad		20-VQFN (3.5x4.5)	3.6 V	1.4 V	85 °C	-40 °C	1.65 V	5.5 V	Auto-Direction Sensing	Voltage Level	Surface Mount	Open Drain Push-Pull

Catalog

Automotive eight-bit bidirectional voltage level shifter for open-drain and push-pull applications

Key Features

• AEC-Q100 qualified for automotive applications:Device temperature grade 1: –40°C to 125°CDevice HBM ESD classification level 2Device CDM ESD classification level C6No direction-control signal neededMaximum data rates:110Mbps (push pull)1.2Mbps (open drain)1.4V to 3.6V on A port and 1.65V to 5.5V on B port (VCCA ≤ VCCB)No power-supply sequencing required – either VCCA or VCCB can be ramped firstLatch-up performance exceeds 100mA per JESD 78, class IIESD protection exceeds JESD 22 (A port):2000V Human Body Model (A114-B)150V Machine Model (A115-A)1000V Charged-Device Model (C101)IEC 61000-4-2 ESD (B-port):± 8kV Contact Discharge± 6kV Air DischargeAEC-Q100 qualified for automotive applications:Device temperature grade 1: –40°C to 125°CDevice HBM ESD classification level 2Device CDM ESD classification level C6No direction-control signal neededMaximum data rates:110Mbps (push pull)1.2Mbps (open drain)1.4V to 3.6V on A port and 1.65V to 5.5V on B port (VCCA ≤ VCCB)No power-supply sequencing required – either VCCA or VCCB can be ramped firstLatch-up performance exceeds 100mA per JESD 78, class IIESD protection exceeds JESD 22 (A port):2000V Human Body Model (A114-B)150V Machine Model (A115-A)1000V Charged-Device Model (C101)IEC 61000-4-2 ESD (B-port):± 8kV Contact Discharge± 6kV Air Discharge

Description

This device is an 8-bit non-inverting level translator which uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4V and 3.6V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any supply voltage between 1.65V and 5.5V. Two input supply pins allows for low Voltage bidirectional translation between any of the 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state. To put the device in the Hi-Z state during power-up or power-down periods, tie OE to GND through a pull-down resistor. The current-sourcing capability of the driver determines the minimum value of the resistor. This device is an 8-bit non-inverting level translator which uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4V and 3.6V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any supply voltage between 1.65V and 5.5V. Two input supply pins allows for low Voltage bidirectional translation between any of the 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state. To put the device in the Hi-Z state during power-up or power-down periods, tie OE to GND through a pull-down resistor. The current-sourcing capability of the driver determines the minimum value of the resistor.
