44-6530 Series
Manufacturer: Aries Electronics
Beta
⌘K

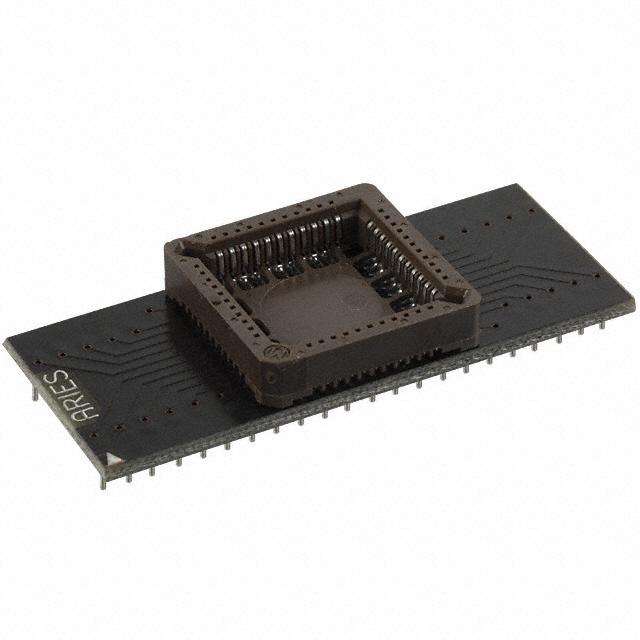

SOCKET ADAPTER PLCC TO 44DIP 0.6
| Part | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Features | Termination Post Length | Termination Post Length | Contact Material - Post [custom] | Termination | Contact Finish - Post | Board Material | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Pins | Convert From (Adapter End) | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 1 A | 200 µin | 5.08 µm | UL94 V-0 | Socket Included | 0.125 in | 3.18 mm | Brass | Solder | Tin-Lead | FR4 Epoxy Glass | 15.24 mm | 0.6 in | DIP | 1.27 mm | 0.05 in | Through Hole | 44 | PLCC | 0.1 in | 2.54 mm |
 Aries Electronics | 1 A | 10 Áin | 0.25 çm | UL94 V-0 | Socket Included | 0.125 in | 3.18 mm | Brass | Solder | Gold | FR4 Epoxy Glass | 15.24 mm | 0.6 in | DIP | 1.27 mm | 0.05 in | Through Hole | 44 | PLCC | 0.1 in | 2.54 mm |
