1.0A Ultra Fast Recovery Rectifier
Key Features
• Low forward voltage drop.
• Low profile package.
• Fast switching for high efficiency.
Beta
⌘K
1.0A Ultra Fast Recovery Rectifier
1.0A Ultra Fast Recovery Rectifier
| Part | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Speed | Supplier Device Package | Mounting Type | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Current - Average Rectified (Io) | Capacitance @ Vr, F | Package / Case | Reverse Recovery Time (trr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

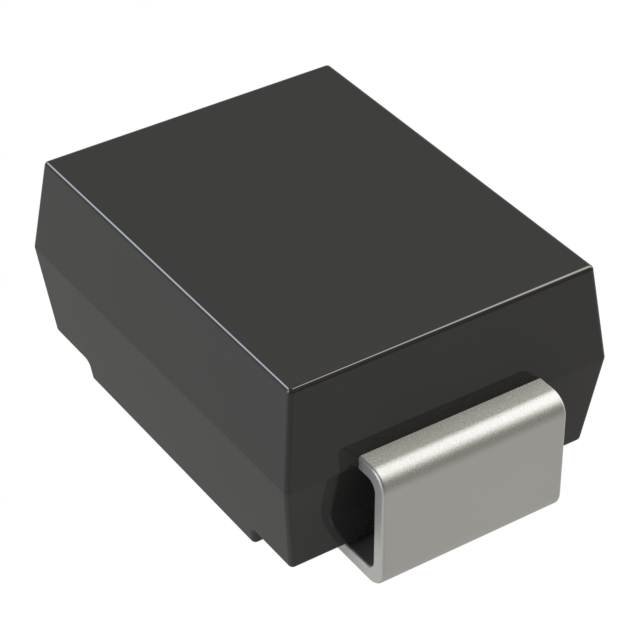

 ON Semiconductor | 175 ░C | -65 C | 1 V | 10 µA | 200 mA 500 ns | DO-214AC (SMA) | Surface Mount | 100 V | Standard | 1 A | 15 pF | DO-214AC SMA | 50 ns |
 ON Semiconductor | 175 ░C | -65 C | 1 V | 10 µA | 200 mA 500 ns | DO-214AC (SMA) | Surface Mount | Standard | 1 A | 15 pF | DO-214AC SMA | 50 ns | |
ON Semiconductor | 175 ░C | -65 C | 1 V | 10 µA | 200 mA 500 ns | DO-214AC (SMA) | Surface Mount | 50 V | Standard | 1 A | 15 pF | DO-214AC SMA | 50 ns |
