664-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB PLUG/RCPT 9P R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Shell Material, Finish | Mounting Type | Number of Positions | Current Rating (Amps) | Connector Style | Termination | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Features | Connector Type | Flange Feature | Flange Feature | Number of Rows [custom] | Contact Type | Shell Size, Connector Layout | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

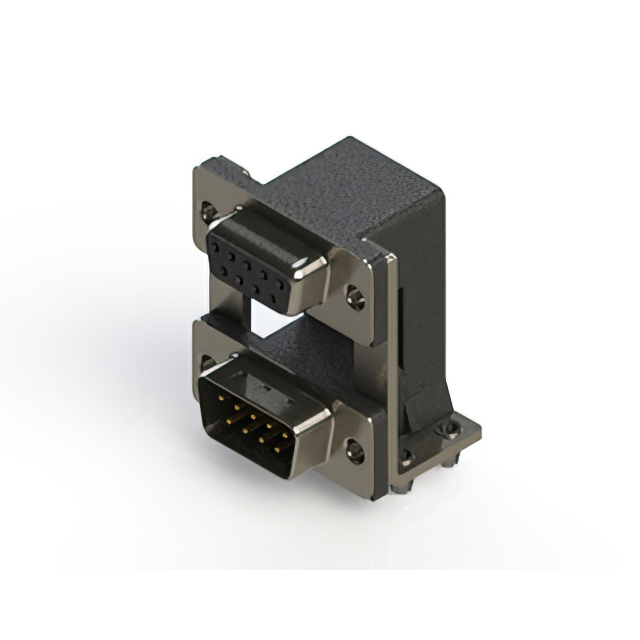

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.38 µm | 15 µin | Gold | Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell | 4-40 | 2 | Signal | 1 | |

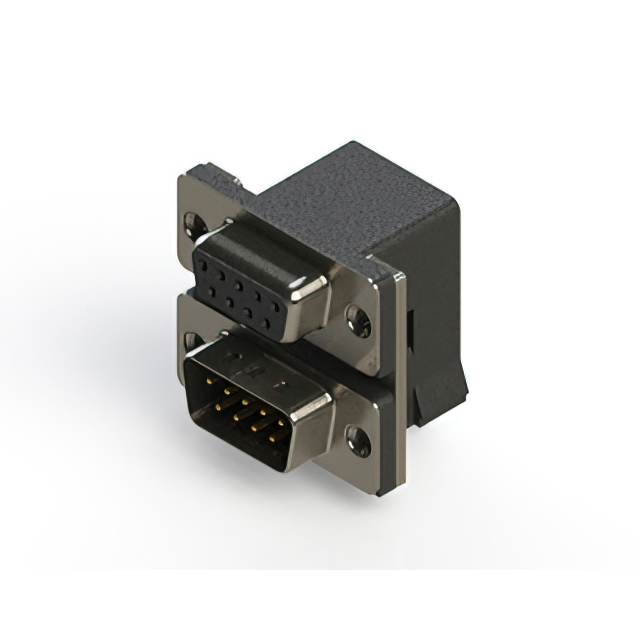

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | Gold | Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell | 4-40 | 2 | Signal | 1 | Flash | ||

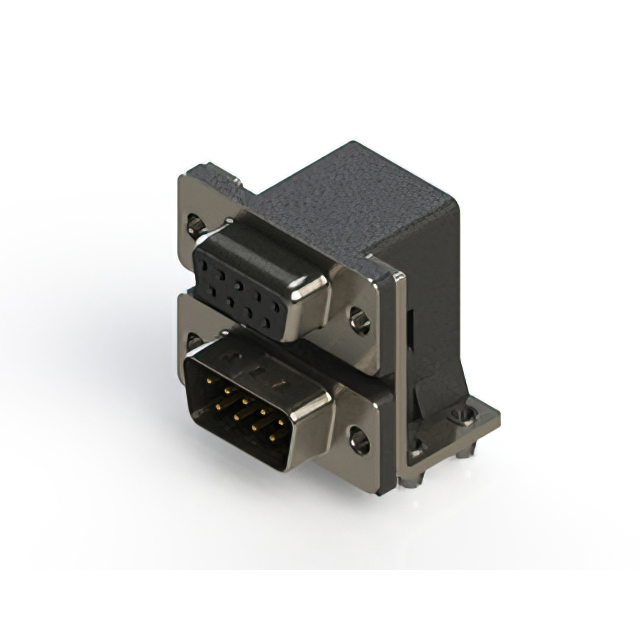

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.76 Ám | 30 Áin | Gold | Grounding Indents Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell (M3) | 2 | Signal | 1 | ||

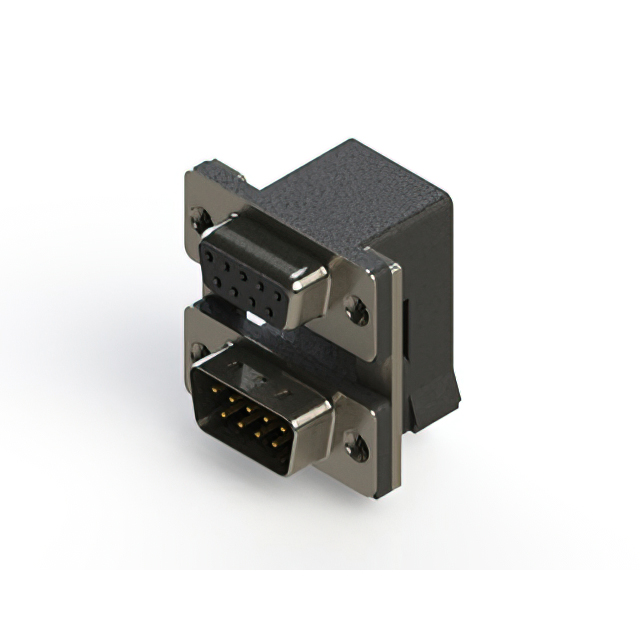

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.76 Ám | 30 Áin | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell | 4-40 | 2 | Signal | 1 | |

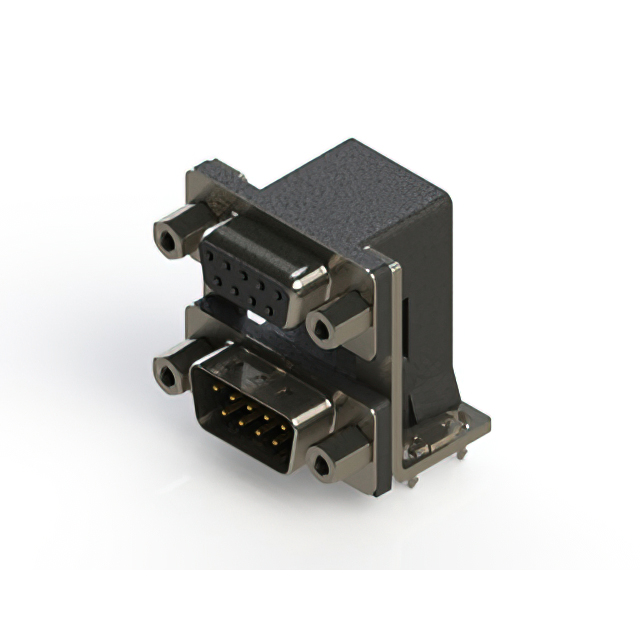

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.76 Ám | 30 Áin | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell (Unthreaded) | 2 | Signal | 1 | ||

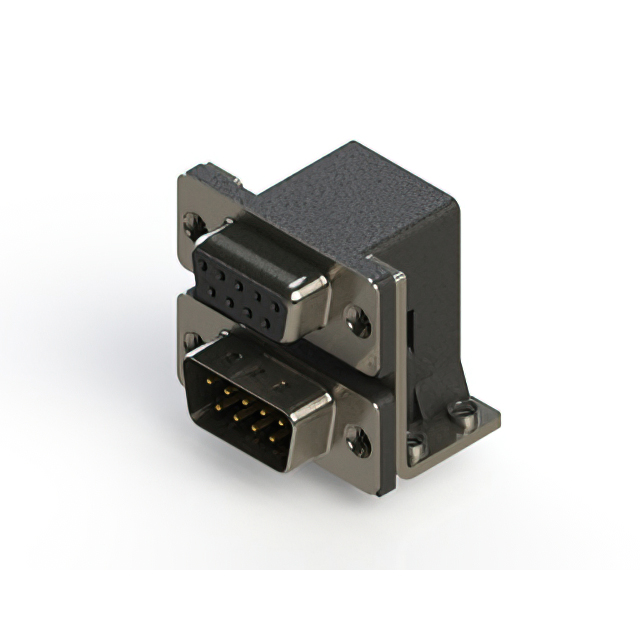

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.38 µm | 15 µin | Gold | Grounding Indents Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell (M3) | 2 | Signal | 1 | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.76 Ám | 30 Áin | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 4-40 Mating Side Female Screwlock | 2 | Signal | 1 | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.38 µm | 15 µin | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell (M3) | 2 | Signal | 1 | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | Gold | Grounding Indents Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell | 4-40 | 2 | Signal | 1 | Flash | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass Phosphor Bronze | Black | Nickel Plated Steel | Right Angle Through Hole | 9 | 3 A | D-Sub - Stacked | Solder | UL94 V-0 | 8.08 mm | 0.318 " | 0.38 µm | 15 µin | Gold | Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | Housing/Shell (Unthreaded) | 2 | Signal | 1 |
