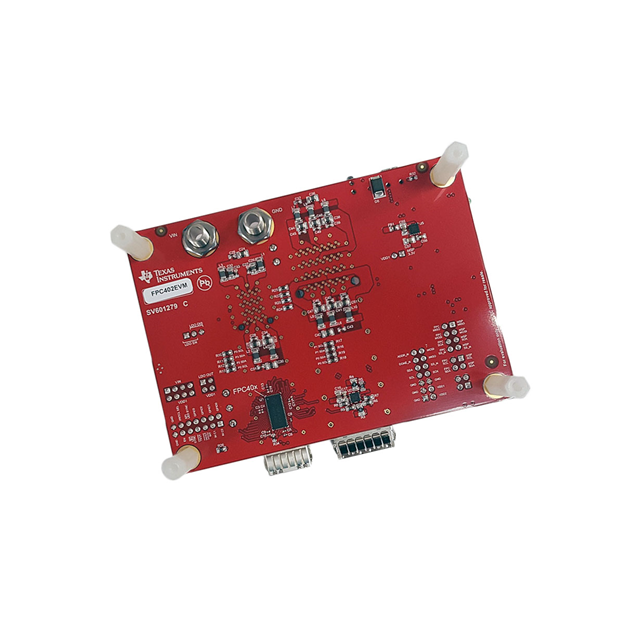

Quad Port Controller
Key Features
• Control Signal Management and I2C Aggregation Across Four PortsCombine Multiple FPC402s to Control 56 Total Ports Through a Single Host InterfaceEliminate Need for Discrete I2C Muxes, LED Drivers, and High-Pin-Count FPGA/CPLD Control DevicesReduce PCB Routing Complexity by Handling All Low-Speed Control Signals Close to the PortSelectable I2C (up to 1 MHz) or SPI (up to 10 MHz) Host Control InterfaceAutomatic Prefetching of Critical, User-Specified Data From the ModulesBroadcast Mode Write to All Ports Simultaneously Across All FPC402 ControllersAdvanced LED Features for Port Status Indication, Including Programmable Blinking and DimmingCustomizable Interrupt EventsSeparate Host-Side I/O Voltage: 1.8 V to 3.3 VSmall WQFN Package Enabling Placement on Bottom Side of PCB Underneath PortsControl Signal Management and I2C Aggregation Across Four PortsCombine Multiple FPC402s to Control 56 Total Ports Through a Single Host InterfaceEliminate Need for Discrete I2C Muxes, LED Drivers, and High-Pin-Count FPGA/CPLD Control DevicesReduce PCB Routing Complexity by Handling All Low-Speed Control Signals Close to the PortSelectable I2C (up to 1 MHz) or SPI (up to 10 MHz) Host Control InterfaceAutomatic Prefetching of Critical, User-Specified Data From the ModulesBroadcast Mode Write to All Ports Simultaneously Across All FPC402 ControllersAdvanced LED Features for Port Status Indication, Including Programmable Blinking and DimmingCustomizable Interrupt EventsSeparate Host-Side I/O Voltage: 1.8 V to 3.3 VSmall WQFN Package Enabling Placement on Bottom Side of PCB Underneath Ports
Description
AI
The FPC402 quad port controller serves as a low-speed signal aggregator for common port types such as SFP, QSFP, Mini-SAS HD, and others. The FPC402 aggregates all low-speed control and I2C signals across four ports and presents a single easy-to-use management interface to the host (I2C or SPI). Multiple FPC402s can be used in high-port-count applications with one common control interface to the host. The FPC402 is designed to allow placement on the bottom side of the PCB, underneath the press fit connector, to simplify routing. This localized control of the low-speed signals in the ports cuts system BOM costs by enabling the use of smaller IO count control devices (FPGAs, CPLDs, and MCUs) and by reducing routing layer congestion.
The FPC402 quad port controller serves as a low-speed signal aggregator for common port types such as SFP, QSFP, Mini-SAS HD, and others. The FPC402 aggregates all low-speed control and I2C signals across four ports and presents a single easy-to-use management interface to the host (I2C or SPI). Multiple FPC402s can be used in high-port-count applications with one common control interface to the host. The FPC402 is designed to allow placement on the bottom side of the PCB, underneath the press fit connector, to simplify routing. This localized control of the low-speed signals in the ports cuts system BOM costs by enabling the use of smaller IO count control devices (FPGAs, CPLDs, and MCUs) and by reducing routing layer congestion.
