DF80D Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG 50POS SOLDER GOLD
| Part | Contact Type | Mounting Type | Number of Positions | Cable Termination | Number of Rows | Features | Contact Finish | Wire Type | Color | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Fastening Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

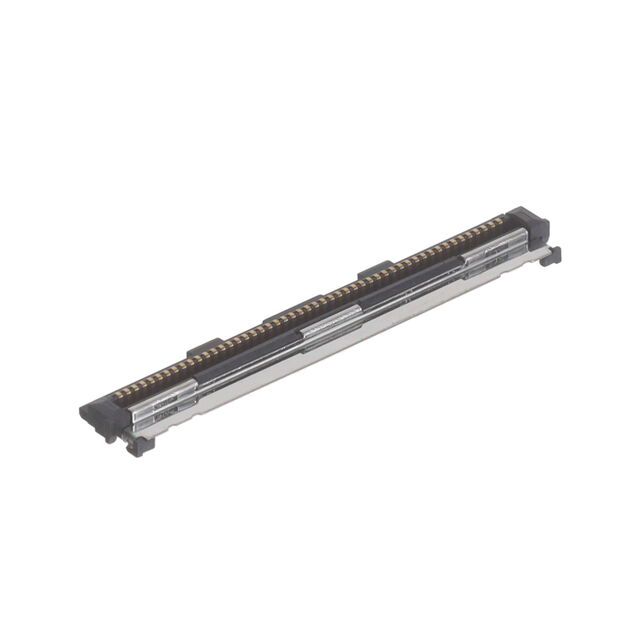

 Hirose Electric Co Ltd | Outer Shroud Contact | Free Hanging (In-Line) | 50 | Solder | 1 | Closed End | Gold | Discrete Ribbon Cable | Black | -1 AWG 36 AWG | 32 AWG 40 AWG | 0.02 " | 0.5 mm | Latch Lock | 1.97 Áin | 0.05 Ám | Plug |
 Hirose Electric Co Ltd | Outer Shroud Contact | Free Hanging (In-Line) | 40 | Solder | 1 | Closed End | Gold | Discrete Ribbon Cable | Black | -1 AWG 36 AWG | 32 AWG 40 AWG | 0.02 " | 0.5 mm | Latch Lock | 1.97 Áin | 0.05 Ám | Plug |
Hirose Electric Co Ltd | Outer Shroud Contact | Free Hanging (In-Line) | 50 | Solder | 1 | Closed End | Gold | Discrete Ribbon Cable | Black | -1 AWG 36 AWG | 32 AWG 40 AWG | 0.02 " | 0.5 mm | Latch Lock | 1.97 Áin | 0.05 Ám | Plug |

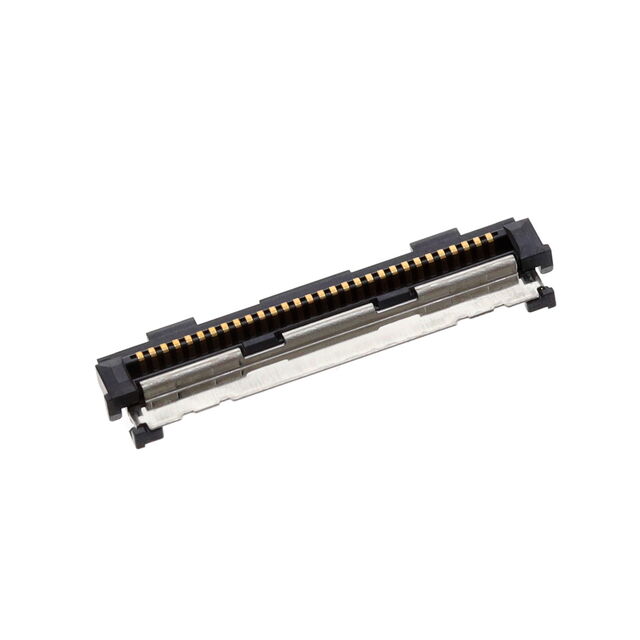

 Hirose Electric Co Ltd | Outer Shroud Contact | Free Hanging (In-Line) | 30 | Solder | 1 | Closed End | Gold | Discrete Ribbon Cable | Black | -1 AWG 36 AWG | 32 AWG 40 AWG | 0.02 " | 0.5 mm | Latch Lock | 1.97 Áin | 0.05 Ám | Plug |
Hirose Electric Co Ltd | Outer Shroud Contact | Free Hanging (In-Line) | 30 | Solder | 1 | Closed End | Gold | Discrete Ribbon Cable | Black | -1 AWG 36 AWG | 32 AWG 40 AWG | 0.02 " | 0.5 mm | Latch Lock | 1.97 Áin | 0.05 Ám | Plug |
