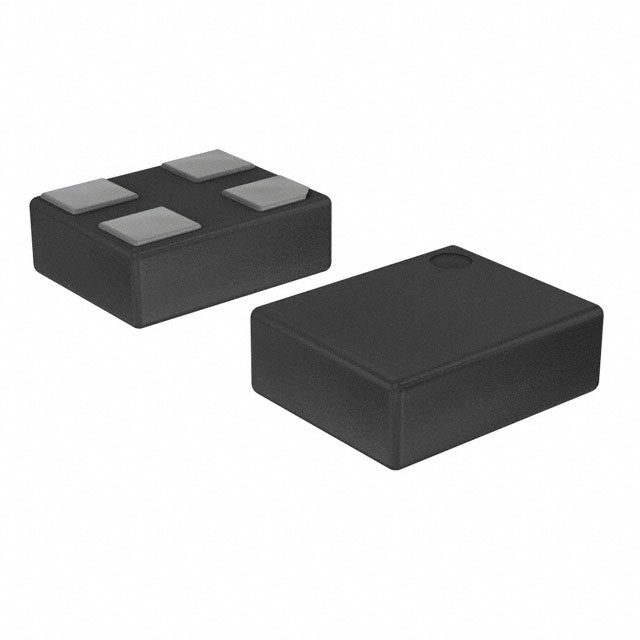

DSA6300 Series

Automotive Spread Spectrum MEMS oscillator

Catalog

Automotive Spread Spectrum MEMS oscillator

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Current - Supply (Max)	Spread Spectrum Bandwidth	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Disable) (Max) [Max]	Base Resonator	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Ratings	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Mounting Type	Frequency	Frequency Stability
Microchip Technology DSA6301JA2BB-012.0000TVAO	0.035 "	0.89 mm	3 mA	0.5 %	XO (Standard)	125 °C	-40 °C	1.5 ÁA	MEMS	3.3 V	1.8 V	LVCMOS	AEC-Q100	4-VLGA	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	Surface Mount	12 MHz	25 ppm
Microchip Technology DSA6301JL1AB-025.0000TVAO	0.035 "	0.89 mm	3 mA	0.25 %	XO (Standard)	105 ░C	-40 °C		MEMS	3.63 V	1.71 V	LVCMOS	AEC-Q100	4-VLGA	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	Surface Mount	25 MHz	50 ppm
Microchip Technology DSA6301JA2BB-012.0000VAO	0.035 "	0.89 mm	3 mA	0.5 %	XO (Standard)	125 °C	-40 °C	1.5 ÁA	MEMS	3.3 V	1.8 V	LVCMOS	AEC-Q100	4-VLGA	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	Surface Mount	12 MHz	25 ppm

Catalog

Automotive Spread Spectrum MEMS oscillator

Key Features

• AEC-Q100 qualified

•

• Output Frequency: 1 – 100MHz LVCMOS

•

• Spread Spectrum options:* Center spread: ±0.25%, ±0.5%, ±1.0%, ±1.5%, ±2.0%, ±2.5%,

• * Down spread: -0.25% , -0.5%, -1.0%, -1.5%, -2.0%, -3.0%

•

• Ultra-low power consumption: 3mA (active), 1.5 µA stdby

•

• Wide supply voltage range: 1.71V -3.63V VDD

•

• Ultra-small package size: 1.6 x 1.2 mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm

•

• Operating Temperature Range* Automotive Grade 1: -40°C to 125°C

• * Automotive Grade 2: -40°C to 105°C

• * Automotive Grade 3: -40°C to 85°C

•

• Excellent shock and vibration immunity

•

• High reliability

•

• Lead free and RoHS compliant

Description

The DSA63XX is part of Automotive MEMS oscillator family that offers wide range of spread spectrum clock output for EMI reduction. The devices support up to ±2.5% or -3% spread spectrum that can achieve up to 15 dB Electro-Magnetic Interference (EMI) reduction on fundamental frequency (more on high harmonics) . Because of industry standard package and pin options, customers can solve last minute EMI problems simply by putting the new DSA63XX on their current board layout with no redesign required. The DSA63xx family is available in ultra-small 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm, 2.5 mm x 2.0 m, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm and 7.0 mm x 5.0 mm packages. These packages are "drop-in" replacements for standard 4-pin CMOS quartz crystal. Create an application specific part and order samples with the [CLOCKWORKS CONFIGURATOR](https://clockworks.microchip.com/microchip/CWHome/DSA6) tool
