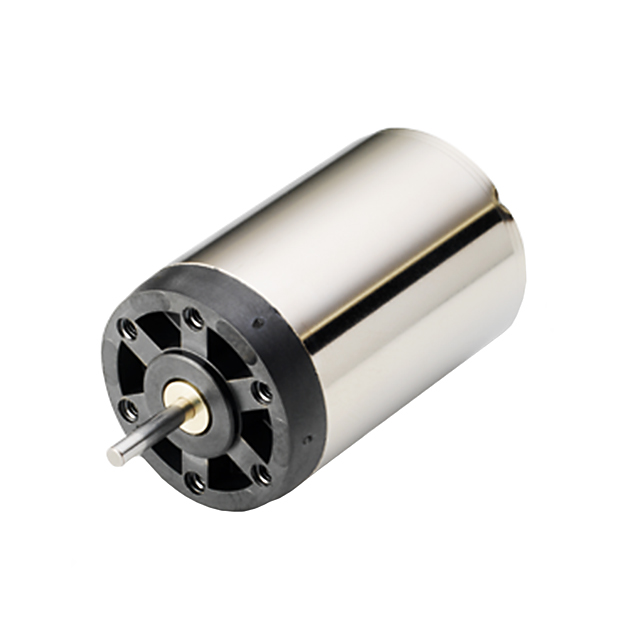

22V28 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 12V
| Part | Weight | Weight | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Size / Dimension | Size / Dimension | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Function | RPM | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Motor Type | Voltage - Rated | Type | Power - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 68.04 g | 0.15 lb | 8.48 mNm | 1.201 oz-in | Round | 0.866 in 22 mm | 0.079 in | 2 mm | Standard | 10000 RPM | Solder Tab | 85 °C | -30 ░C | Brushed | 12 VDC | DC Motor | 4.2 W | 10.2 mm | 0.402 in | 17 mm | 0.669 in |
