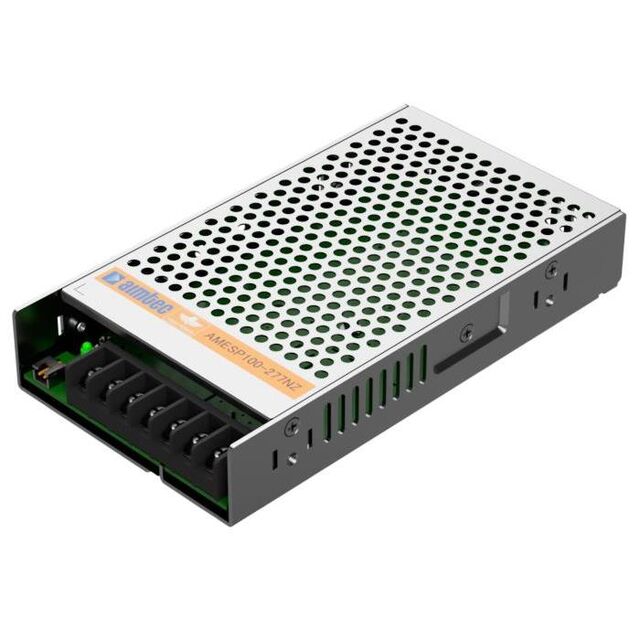

amesp100-277nz Series
Manufacturer: aimtec
Beta
⌘K
POWER SUPPLY: SWITCHING; FOR BUILDING IN; 102W; 8.5A; 179X99X30MM
| Part | Efficiency | Approval Agency | Applications | Voltage - Input (AC) Maximum | Voltage - Input (AC) Minimum | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width | Standard Number | Number of Outputs | Voltage - Output 1 | Power (Watts) | Voltage - Isolation | Features | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Current - Output 1 | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 85 % 86 % | CE cURus | Household Appliances ITE (Commercial) | 305 VAC | 85 VAC 90 V | 120 V 127 VDC | 430 V | 1.18 in | 7.05 in | 3.9 in | 62368-1 | 1 | 12 V | 102 W | 4000 Vpk | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | 70 °C | -30 °C | Chassis Mount | 8.5 A | Enclosed |
