MIC5350 Series

Dual 500mA/300mA LDO

Catalog

Dual 500mA/300mA LDO

Part	Package / Case	PSRR [Max]	PSRR [Min]	Number of Regulators	Voltage - Output (Min/Fixed)	Protection Features	Current - Output	Output Type	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Current - Quiescent (Iq)	Control Features	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed)

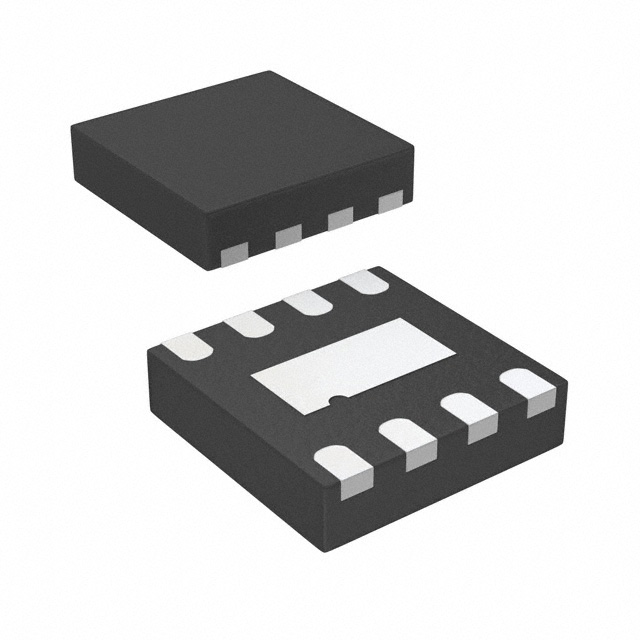

Microchip Technology MIC5350-MGYMT-TR	8-TMLF® 8-UFDFN Exposed Pad	50 dB	35 dB	2	1.8 V 2.8 V	Over Current Over Temperature	300 mA 500 mA	1.81 mOhm	Positive	Surface Mount	125 °C	-40 °C	5.5 V	0.2 V 0.3 V	240 µA	2	8-TMLF®	2	175 µA	Enable
Microchip Technology MIC5350-MMYMT-TR	8-TMLF® 8-UFDFN Exposed Pad	50 dB	35 dB	2	2.8 V	Over Current Over Temperature	300 mA 500 mA	1.81 mOhm	Positive	Surface Mount	125 °C	-40 °C	5.5 V	0.2 V 0.3 V	240 µA	2	8-TMLF®	2	175 µA	Enable	2.8 V
Microchip Technology MIC5350-SMYMT-TR	8-TMLF® 8-UFDFN Exposed Pad	50 dB	35 dB	2	3.3 V	Over Current Over Temperature	300 mA 500 mA	1.81 mOhm	Positive	Surface Mount	125 °C	-40 °C	5.5 V	0.2 V 0.3 V	240 µA	2	8-TMLF®	2	175 µA	Enable		2.8 V
Microchip Technology MIC5350-SGYMT-TR	8-TMLF® 8-UFDFN Exposed Pad	50 dB	35 dB	2	3.3 V	Over Current Over Temperature	300 mA 500 mA	1.81 mOhm	Positive	Surface Mount	125 °C	-40 °C	5.5 V	0.2 V 0.3 V	240 µA	2	8-TMLF®	2	175 µA	Enable		1.8 V

Catalog

Dual 500mA/300mA LDO

Key Features

• * 2.6V to 5.5V input voltage range

• * Ultra-low dropout voltage: 75mV @ 300mA and 125mV @ 500mA

• * Ultra-low output noise: 30µVrms

• * ±2% initial output accuracy

• * Excellent Load/Line transient response

• * Fast start-up time: 30µs

• * µCap stable with 2.2µF ceramic capacitors

• * Thermal shutdown protection

• * Low quiescent current: 130µA with both outputs at maximum load

• * Current limit protection

Description

The MIC5350 is a tiny dual Ultra Low Dropout (ULDO) linear regulator ideally suited for portable electronics due to its low output noise. The MIC5350 integrates two high-performance; 300mA (VOUT1) and 500mA (VOUT2) ULDOs, which provides exceptional thermal characteristics. The MIC5350 is designed to be stable with small ceramic output capacitors thereby reducing required board space and component cost. The combination of extremely low dropout voltage, low output noise, and exceptional thermal package characteristics makes it ideal for powering RF and noise-sensitive circuitry, cellular phone camera modules, imaging sensors for digital still cameras, PDAs, MP3 players, and webcam applications. The MIC5350 ULDO is available in fixed output voltages in which occupies less than half the board area of a single SOT23-6 package.
