Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Single Row, 4 Circuits, 0.76µm Gold (Au) Plating, Glow-Wire Capable, Black
Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Single Row, 4 Circuits, 0.76µm Gold (Au) Plating, Glow-Wire Capable, Black
Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Single Row, 4 Circuits, 0.76µm Gold (Au) Plating, Glow-Wire Capable, Black
| Part | Voltage Rating | Contact Type | Number of Rows | Features | Contact Material | Shrouding | Insulation Color | Fastening Type | Mounting Type | Connector Type | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Termination | Number of Positions | Style | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Shape | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 2 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 4 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |

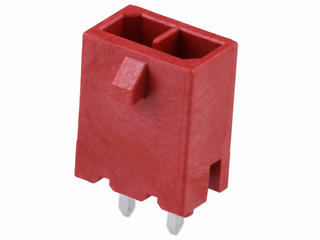

 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Red | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 4 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |

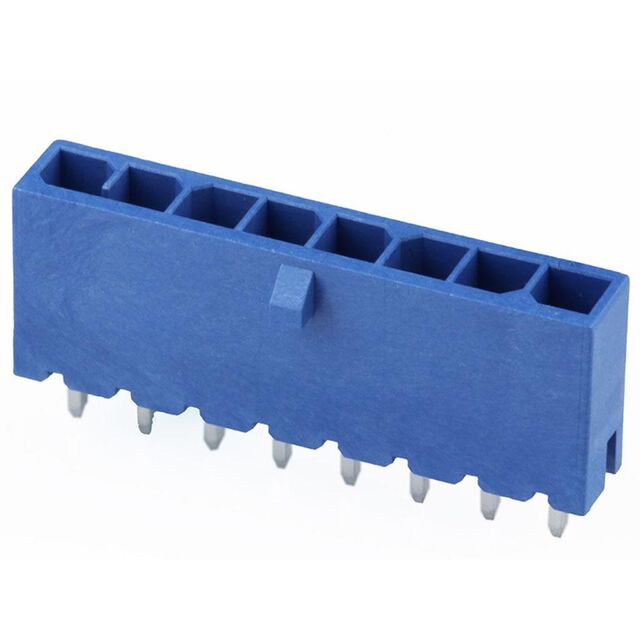

 Molex | 600 VAC | Male Pin | 1 | Board Guide | Copper Alloy | Shrouded - 4 Wall | Blue | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | Varies by Wire Gauge | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All | ||||
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All | |

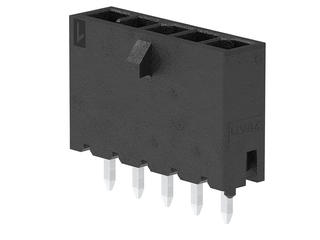

 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 6 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 7 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | Varies by Wire Gauge | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 6 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All | |||
 Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All | |
Molex | 600 VAC | Male Pin | 1 | Board Guide Glow Wire Compliant | Copper Alloy | Shrouded - 4 Wall | Black | Locking Ramp | Through Hole | Header | Tin | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Varies by Wire Gauge | Gold | -40 °C | 105 ░C | 0.118 in | 3 mm | Solder | 2 | Board to Cable/Wire | UL94 V-0 | 9.91 mm | 0.39 in | Square | All |
