BXRA-35 Series

Manufacturer: BRIDGELUX

Catalog

LED COB ES WARM WHT RECT 3500K

Part	Configuration	Lumens/Watt @ Current - Test	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Color	Temperature - Test	Height [z]	Lens Type	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Current - Max [Max]	CCT (K)	CCT (K)	Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Light Emitting Surface (LES) [diameter]	Size / Dimension [z]
BRIDGELUX BXRA-35E1200-B-03	Rectangle	108 lm/W	120 °	22.8 mm	25.8 mm	500 mA	Warm White	25 °C	3 mm	Domed	1595 lm	80	750 mA	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)
BRIDGELUX BXRA-35E0800-B-03	Rectangle	106 lm/W	120 °	22.8 mm	25.8 mm	500 mA	Warm White	25 °C	3 mm	Domed	1095 lm	80	1 A	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	20.7 V
BRIDGELUX BXRA-35E4000-H-00	Square	108 lm/W	120 °	45.6 mm	2 in	2.1 A	Warm White	25 °C	3 mm	Domed	5340 lm	80	2.8 A	3500 K	7-Step MacAdam Ellipse	Chip On Board (COB)	23.5 V
BRIDGELUX BXRA-35H0740-A-03	Starboard	61 lm/W	120 °			350 mA	Warm White	85 °C	3 mm	Flat	585 lm	97	500 mA	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	27.3 V	20.2 mm	10.9 mm

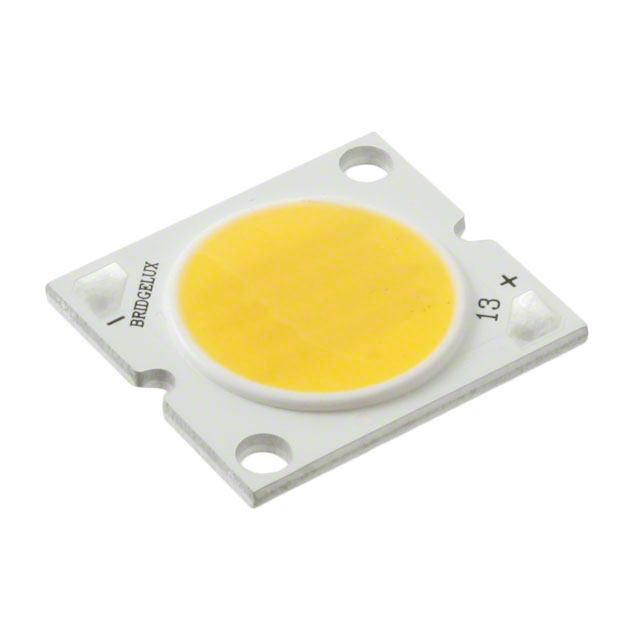

BRIDGELUX BXRA-35E2000-B-00	Rectangle	98 lm/W	120 °	22.8 mm	25.8 mm		Warm White	25 °C	3 mm	Domed	2550 lm	80	1 A	3500 K		Chip On Board (COB)	37 V
BRIDGELUX BXRA-35H4000-H-03	Rectangle	68 lm/W	120 °		49.5 mm	2.1 A	Warm White	85 °C	2.6 mm	Flat	3345 lm	97	3 A	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	23.5 V			45.3 mm
BRIDGELUX BXRA-35E7000-J-03	Square	104 lm/W	120 °	45.6 mm	2 in	2.8 A	Warm White	25 °C	3 mm	Domed	8530 lm	80	3.5 A	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)
BRIDGELUX BXRA-35E2000-B-03	Rectangle	98 lm/W	120 °	22.8 mm	25.8 mm		Warm White	25 °C	3 mm	Domed	2550 lm	80	1 A	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	37 V
BRIDGELUX BXRA-35E3500-F-03	Square	105 lm/W	120 °	45.6 mm	2 in	1.75 A	Warm White	25 °C	3 mm	Domed	3280 lm	80	2.1 A	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	17.9 V
BRIDGELUX BXRA-35E3500-F-00	Square	105 lm/W	120 °	45.6 mm	2 in	1.75 A	Warm White	25 °C	3 mm	Domed	3280 lm	80	2.1 A	3500 K		Chip On Board (COB)	17.9 V
