2410ML Series

Catalog

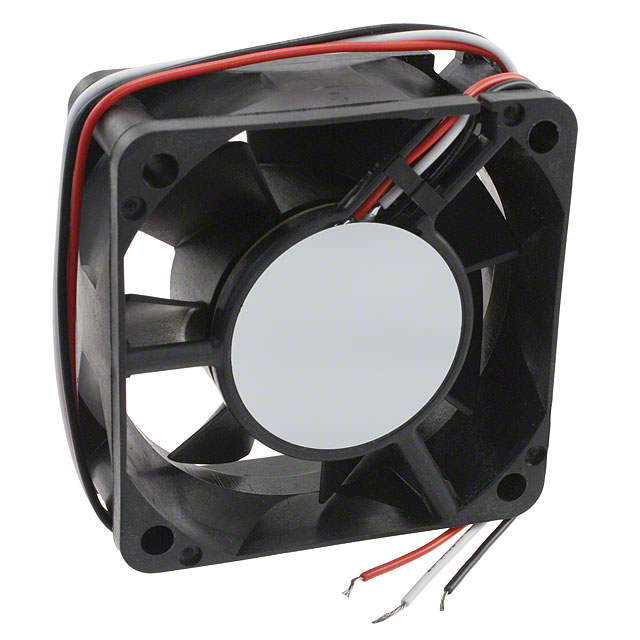

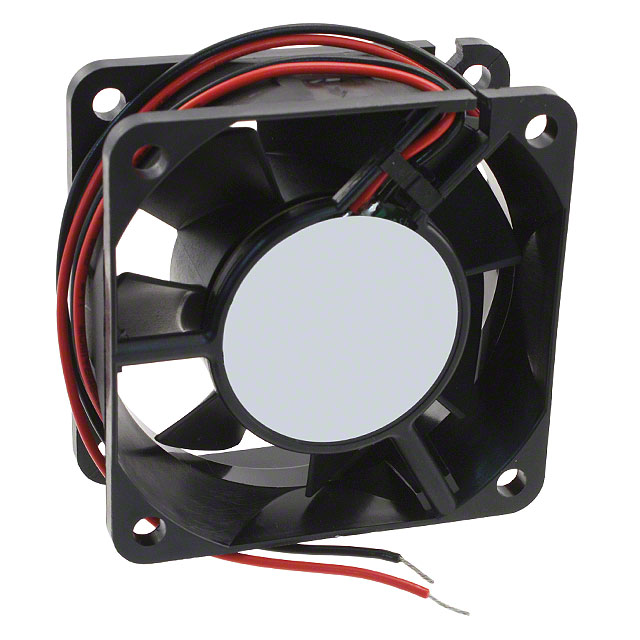

FAN AXIAL 60X25MM 24VDC WIRE

...

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Material - Blade	Noise	Features	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	RPM	Static Pressure	Static Pressure	Bearing Type	Power (Watts)	Voltage - Rated	Fan Type	Width [y]	Approval Agency	Termination
NMB TECHNOLOGIES 2410ML-05W-B59-B50	10 VDC	27.6 VDC	Plastic	100 mA	Plastic	35 dB	Auto Restart Speed Sensor (Tach)	60 mm	60 mm	-10 °C	50 °C	23.3 CFM	0.652 mł/min	4900 RPM	62.3 Pa	0.25 in H2O	Ball	2.4 W	24 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-05W-B69-B50	10 VDC	27.6 VDC	Plastic		Plastic	36 dB	Auto Restart Speed Sensor (Tach)	60 mm	60 mm	-10 °C	50 °C	25 CFM	0.7 mł/min	5300 RPM	73 Pa	0.293 in H2O	Ball	3.12 W	24 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B59-B00	6 VDC	13.8 VDC	Plastic	0.2 A	Plastic	35 dB	Auto Restart Locked Rotor Sensor	60 mm	60 mm	-10 °C	50 °C	23.3 CFM	0.652 mł/min	4900 RPM	62.3 Pa	0.25 in H2O	Ball	2.4 W	12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B69-E00	6 VDC	13.8 VDC	Plastic	0.3 A	Plastic	36 dB	Auto Restart Locked Rotor Sensor	60 mm	60 mm	-10 °C	50 °C	25 CFM	0.7 mł/min	5300 RPM	73 Pa	0.293 in H2O	Ball	3.6 W	12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-05W-B49-B50	10 VDC	27.6 VDC	Plastic	0.09 A	Plastic	33.5 dB(A)	Auto Restart Speed Sensor (Tach)	60 mm	60 mm	-10 °C	70 °C	21.5 CFM	0.602 m³/min	4550 RPM	51.8 Pa	0.208 in H2O	Ball	2.16 W	24 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B59-E50	6 VDC	13.8 VDC	Plastic	0.2 A	Plastic	35 dB	Auto Restart Speed Sensor (Tach)	60 mm	60 mm	-10 °C	50 °C	23.3 CFM	0.652 mł/min	4900 RPM	62.3 Pa	0.25 in H2O	Ball	2.4 W	12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
NMB TECHNOLOGIES 2410ML-05W-B30-B00	10 VDC	27.6 VDC	Plastic	60 mA	Plastic	31 dB(A)	Auto Restart	60 mm	60 mm	-10 °C	70 °C	19 CFM	0.532 m³/min	4000 RPM			Ball	1.44 W	24 VDC	Tubeaxial	25 mm	CE CSA UL VDE	2 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B30-B00	6 VDC	13.8 VDC	Plastic	120 mA	Plastic	31 dB(A)		60 mm	60 mm	-10 °C	70 °C	19 CFM	0.532 m³/min	4000 RPM			Ball	1.44 W	12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	2 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B80-B00			Plastic	0.52 A	Plastic	46 dB(A)	Auto Restart	60 mm	60 mm	-10 °C	60 °C	37.1 CFM	1.04 mł/min	7800 RPM	142.5 Pa	0.572 in H2O	Ball	6.2 W	12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	2 Wire Leads
NMB TECHNOLOGIES 2410ML-04W-B49-E50	6 VDC	13.8 VDC	Plastic	0.17 A	Plastic	33.5 dB(A)	Auto Restart Speed Sensor (Tach)	60 mm	60 mm	-10 °C	70 °C	21.5 CFM	0.602 m³/min	4550 RPM	51.8 Pa	0.208 in H2O	Ball		12 VDC	Tubeaxial	25 mm	CE CSA UL VDE	3 Wire Leads
