MIC5323 Series

300mA uCap ULDO High PSRR Low Noise Regulator

Catalog

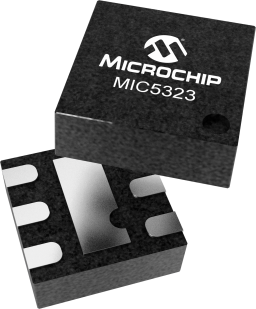

300mA uCap ULDO High PSRR Low Noise Regulator

Part	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	Control Features	Output Configuration	Supplier Device Package	Output Type	Number of Regulators	Protection Features	Voltage - Output (Max) [Max]	Output Type
Microchip Technology MIC5323-3.3YMT-TR	0.17 V	150 çA	3.3 V	125 °C	-40 °C	6-UFDFN Exposed Pad	300 mA	5.5 V	Surface Mount	Enable	Positive	6-TMLF® (1.6x1.6)	1.81 mOhm	1	Over Current Over Temperature
Microchip Technology MIC5323-1.8YD5-TR	0.22 V	150 çA	1.8 V	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5	300 mA	5.5 V	Surface Mount	Enable	Positive		1.81 mOhm	1	Over Current Over Temperature
Microchip Technology MIC5323-2.8YMT-TR	0.22 V	150 çA	2.8 V	125 °C	-40 °C	6-TDFN Exposed Pad	300 mA	5.5 V	Surface Mount	Enable	Positive	6-DFN (2x2)	1.81 mOhm	1	Over Current Over Temperature
Microchip Technology MIC5323YMT-TR	0.17 V	150 çA	1.25 V	125 °C	-40 °C	6-UFDFN Exposed Pad	300 mA	5.5 V	Surface Mount	Enable	Positive	6-TMLF® (1.6x1.6)		1	Over Current Over Temperature	5.5 V	Adjustable
Microchip Technology MIC5323-3.3YD5-TR	0.17 V	150 çA	3.3 V	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5	300 mA	5.5 V	Surface Mount	Enable	Positive		1.81 mOhm	1	Over Current Over Temperature

Catalog

300mA uCap ULDO High PSRR Low Noise Regulator

Key Features

• * Ultra-low dropout voltage of 120mV at 300mA

• * Input voltage range: 2.65 to 5.5V

• * Stable with ceramic output capacitor

• * 300mA guaranteed output current

• * Low output noise: 20µVrms

• * High PSRR: up to 80dB at 1kHz

• * Less than 30µs turn-on time with CBYP = 0.1µF

• * High output accuracy: ±2.0% over temperature

• * Thermal shutdown protection

• * Current limit protection

• * Thin SOT-23-5 package

Description

The MIC5323 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and very low noise while consuming low ground current. Ideal for battery operated applications, the MIC5323 features 2% accuracy, extremely low dropout voltage (120mV at 300mA), and low ground current at light load (typically 90µA). When disabled, the MIC5323 typically consumes less than 1µA. The MIC5323 is a µCap design operating with small ceramic output capacitors for stability, thereby reducing required board space and component cost. The MIC5323 is available in fixed output voltages and thin SOT-23-5 package. Additional voltage options are available.
