P16-50 Series

Manufacturer: Actuonix Motion Devices Inc

Catalog

P16-S LINEAR ACTUATOR

Part	Speed	Speed	Accuracy	Duty Cycle	Gear Reduction Ratio	Load Force (Dynamic)	Load Force (Dynamic)	Motor Type	Ingress Protection	Voltage - Rated	Stroke Length	Stroke Length	Operating Temperature [Max]	Operating Temperature [Min]	Features	Construction	Type	Load Force (Static)	Load Force (Static)	Feedback Type

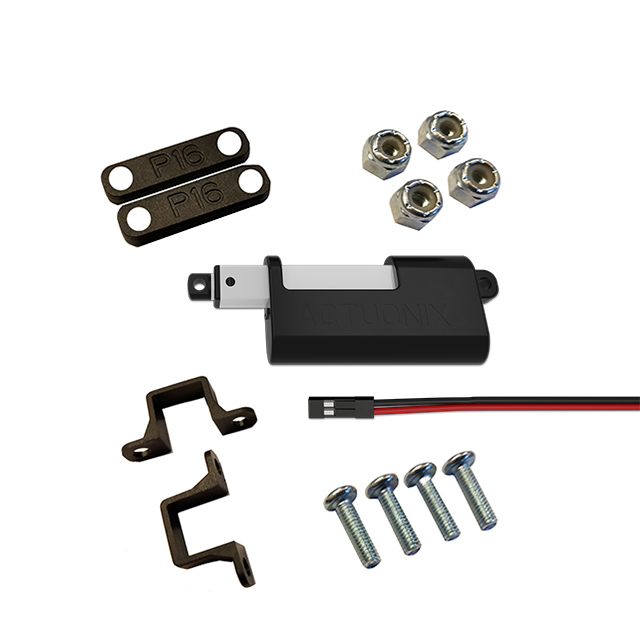

Actuonix Motion Devices Inc P16-50-256-12-S	4.8 mm/s	0.19 in/s	0.3 mm	20 %	256	300 N	67.44 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C	Limit Switches	Ball Screw	Linear Actuator	122.4 lbf	500 N
Actuonix Motion Devices Inc P16-50-256-12-P	4.8 mm/s	0.19 in/s	0.3 mm	20 %	256	300 N	67.44 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C		Ball Screw	Linear Actuator	122.4 lbf	500 N	Potentiometer
Actuonix Motion Devices Inc P16-50-64-12-P	18 mm/s	0.71 in/s	0.3 mm	20 %	64	90 N	20.23 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C		Ball Screw	Linear Actuator	122.4 lbf	500 N	Potentiometer
Actuonix Motion Devices Inc P16-50-22-12-P	46 mm/s	1.81 in/s	0.3 mm	20 %	22	50 N	11.24 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C		Ball Screw	Linear Actuator	122.4 lbf	500 N	Potentiometer
Actuonix Motion Devices Inc P16-50-22-12-S	46 mm/s	1.81 in/s	0.3 mm	20 %	22	50 N	11.24 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C	Limit Switches	Ball Screw	Linear Actuator	122.4 lbf	500 N
Actuonix Motion Devices Inc P16-50-64-12-S	18 mm/s	0.71 in/s	0.3 mm	20 %	64	90 N	20.23 lbf	Brushed	IP54 - Dust Protected Water Resistant	12 VDC	1.969 in	50 mm	50 °C	-10 °C	Limit Switches	Ball Screw	Linear Actuator	122.4 lbf	500 N
