R200A0 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

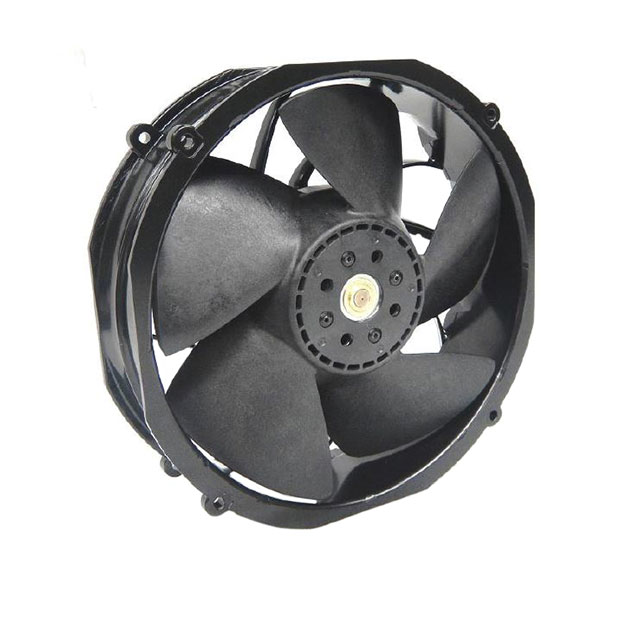

FAN AXIAL 200X51MM 48VDC WIRE
| Part | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | RPM | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Fan Type | Static Pressure | Static Pressure | Width [x] | Features | Bearing Type | Termination | Power (Watts) | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 2.9 A | 70000 Hrs | 783 CFM | 21.92 m³/min | Aluminum | Plastic | 30 VDC | 72 VDC | 6500 RPM | 2.6 lbs | 1.2 kg | 70 °C | -30 ░C | -30 °C | 70 °C | Round | 200 mm | 48 VDC | Tubeaxial | 4.12 in H2O | 1028 Pa | 51 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 4 Wire Leads | 139.2 W | 74 dB(A) |
