CXP-01-AA Series
Manufacturer: Omnetics
Beta
⌘K

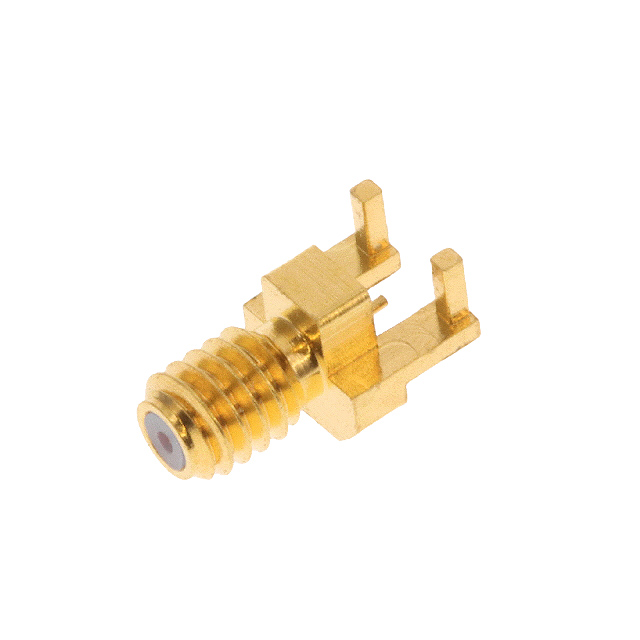

NANO COAX, 50 OHM, MALE TWIST ON
| Part | Body Finish | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Impedance | Center Contact Material | Connector Style | Contact Termination | Shield Termination | Frequency - Max [Max] | Housing Color | Mounting Type | Number of Ports | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Gold | 2000 | Gold | -55 C | 125 °C | Threaded | 50 Ohms | Copper Alloy | Coaxial | Solder | Solder | 20 GHz | Gold | Board Edge End Launch Right Angle Through Hole | 1 | Plug Male Pin |
