TPS74901 Series

Catalog

3-A, LOW-VIN (0.8-V) ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH POWER GOOD AND ENABLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Voltage - Input (Max) [Max]	Mounting Type	Current - Output	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Number of Regulators	Protection Features	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Control Features	Supplier Device Package	Regulator Type	Utilized IC / Part	Voltage - Output	Channels per IC	Supplied Contents	Board Type	Current - Quiescent (Iq)
Texas Instruments TPS74901DRCT	125 °C	-40 °C	10-VFDFN Exposed Pad	Adjustable	5.5 V	Surface Mount	3 A	0.28 V	3.6 V	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	30 dB	60 dB	0.8 V	Positive	Enable Power Good Soft Start	10-VSON (3x3)
Texas Instruments TPS74901KTWTG3	125 °C	-40 °C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Adjustable	5.5 V	Surface Mount	3 A	0.28 V	3.6 V	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	30 dB	60 dB	0.8 V	Positive	Enable Power Good Soft Start	TO-263 (DDPAK-7)

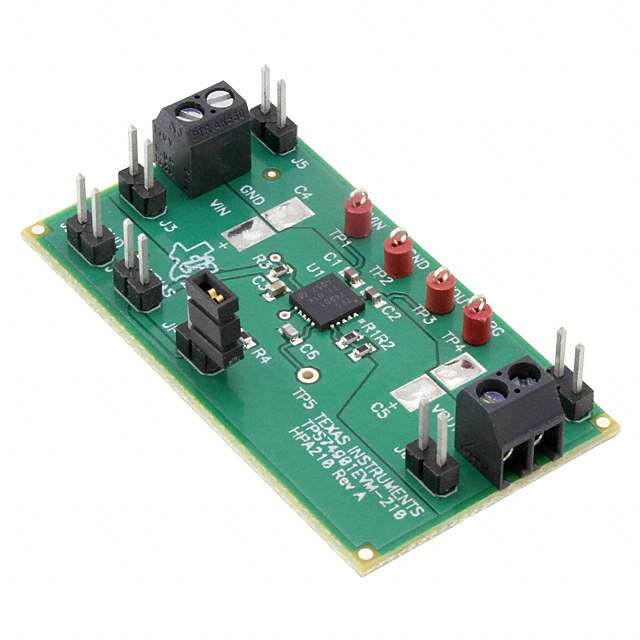

Texas Instruments TPS74901EVM-210							3 A											Positive Adjustable	TPS74901	1.2 V	1 - Single	Board(s)	Fully Populated
Texas Instruments TPS74901KTWT	125 °C	-40 °C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Adjustable	5.5 V	Surface Mount	3 A	0.28 V	3.6 V	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	30 dB	60 dB	0.8 V	Positive	Enable Power Good Soft Start	TO-263 (DDPAK-7)
Texas Instruments TPS74901RGWR	125 °C	-40 °C	20-VQFN Exposed Pad	Adjustable	5.5 V	Surface Mount	3 A	0.28 V	3.6 V	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	30 dB	60 dB	0.8 V	Positive	Enable Power Good Soft Start	20-VQFN (5x5)
Texas Instruments TPS74901DRCRM3	125 ¯C	-40 °C	10-VFDFN Exposed Pad	Adjustable	5.5 V	Surface Mount	3 A	0.12 V	3.6 V	1	Over Current Over Temperature	30 dB	60 dB	0.8 V	Positive	Current Limit Enable Power Good Soft Start	10-VSON (3x3)							2 mA
Texas Instruments TPS74901RGWT	125 °C	-40 °C	20-VQFN Exposed Pad	Adjustable	5.5 V	Surface Mount	3 A	0.28 V	3.6 V	1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	30 dB	60 dB	0.8 V	Positive	Enable Power Good Soft Start	20-VQFN (5x5)
