DF3-12P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

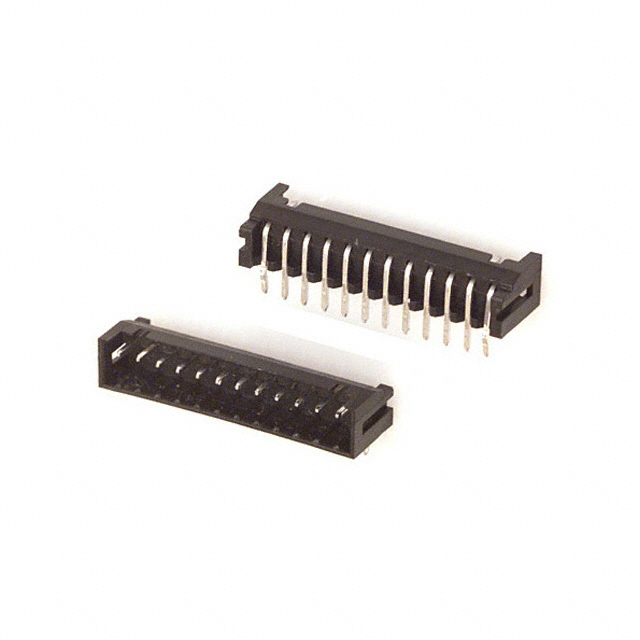

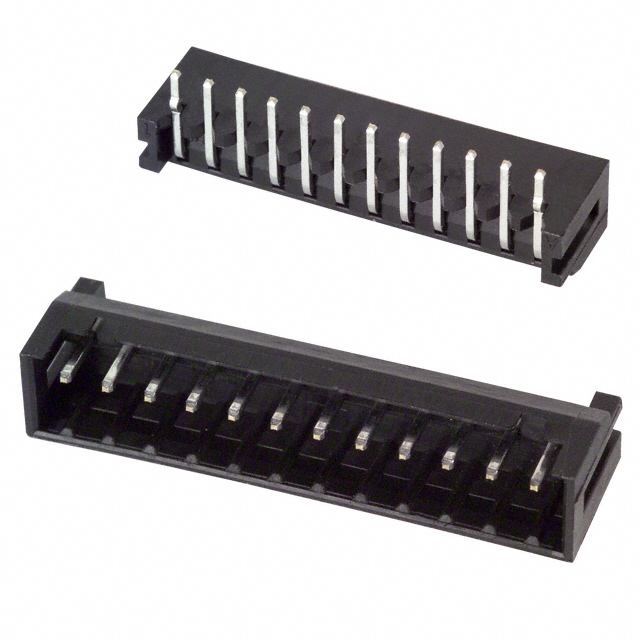

CONN HEADER R/A 12POS 2MM
| Part | Contact Shape | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Material Flammability Rating | Shrouding | Insulation Material | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Style | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Number of Positions | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Square | Press-Fit Solder | 8 µin | 0.203 µm | Right Angle Through Hole | UL94 V-0 | Shrouded - 4 Wall | Nylon Polyamide (PA) | 1 | 0.114 in | 2.9 mm | Male Pin | Push-Pull | 0.079 " | 2 mm | Header | Gold | Brass | -55 C | 105 ░C | 3 A | Board to Board Cable | Black | 0.197 " | 5 mm | 0.122 in | 3.1 mm | All | 12 | |
 Hirose Electric Co Ltd | Square | Press-Fit Solder | Right Angle Through Hole | UL94 V-0 | Shrouded - 4 Wall | Nylon Polyamide (PA) | 1 | 0.114 in | 2.9 mm | Male Pin | Push-Pull | 0.079 " | 2 mm | Header | Brass | -55 C | 105 ░C | 3 A | Board to Board Cable | Black | 0.197 " | 5 mm | 0.122 in | 3.1 mm | All | 12 | Tin |
